SRCN6A13 Series

Catalog

CONN PLUG FMALE 5P SOLDER CUP

Part	Contact Material	Contact Finish - Mating	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Number of Positions	Primary Material	Orientation	Cable Opening	Cable Opening	Color	Current Rating (Amps)	Shell Finish	Material Flammability Rating	Shell Material	Applications	Mounting Type	Shell Size - Insert	Insert Material	Fastening Type	Features	Orientation [x]

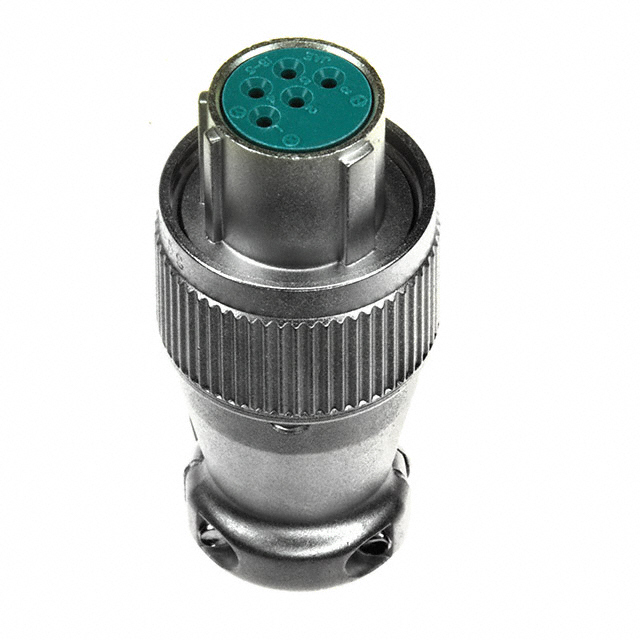

JAE Electronics SRCN6A13-5S	Copper Alloy	Silver	250 VAC 350 VDC	Plug Female Sockets	85 °C	-25 °C	Aluminum Alloy Nickel	5	Metal	N (Normal)	8.5 mm	0.335 in	Silver	5 A	Nickel	UL94 V-0	Aluminum Alloy	Communication Systems Measurement Telecommunications Test Equipment	Free Hanging (In-Line)	13-5	Plastic	Threaded	Backshell Cable Clamp Coupling Nut
JAE Electronics SRCN6A13-3SX	Copper Alloy	Silver	250 VAC 350 VDC	Plug Female Sockets	85 °C	-25 °C	Aluminum Alloy Nickel		Metal		8.5 mm	0.335 in	Silver	10 A	Nickel	UL94 V-0	Aluminum Alloy	Communication Systems Measurement Telecommunications Test Equipment	Free Hanging (In-Line)	13-3	Plastic	Threaded	Backshell Cable Clamp Coupling Nut	X
JAE Electronics SRCN6A13-5SX	Copper Alloy	Silver	250 VAC 350 VDC	Plug Female Sockets	85 °C	-25 °C	Aluminum Alloy Nickel	5	Metal		8.5 mm	0.335 in	Silver	5 A	Nickel	UL94 V-0	Aluminum Alloy	Communication Systems Measurement Telecommunications Test Equipment	Free Hanging (In-Line)	13-5	Plastic	Threaded	Backshell Cable Clamp Coupling Nut	X
JAE Electronics SRCN6A13-3P	Copper Alloy	Silver	250 VAC 350 VDC	Plug Male Pins	85 °C	-25 °C	Aluminum Alloy Nickel		Metal	N (Normal)	8.5 mm	0.335 in	Silver	10 A	Nickel	UL94 V-0	Aluminum Alloy	Communication Systems Measurement Telecommunications Test Equipment	Free Hanging (In-Line)	13-3	Plastic	Threaded	Backshell Cable Clamp Coupling Nut
JAE Electronics SRCN6A13-3S	Copper Alloy	Silver	250 VAC 350 VDC	Plug Female Sockets	85 °C	-25 °C	Aluminum Alloy Nickel		Metal	N (Normal)	8.5 mm	0.335 in	Silver	10 A	Nickel	UL94 V-0	Aluminum Alloy	Communication Systems Measurement Telecommunications Test Equipment	Free Hanging (In-Line)	13-3	Plastic	Threaded	Backshell Cable Clamp Coupling Nut

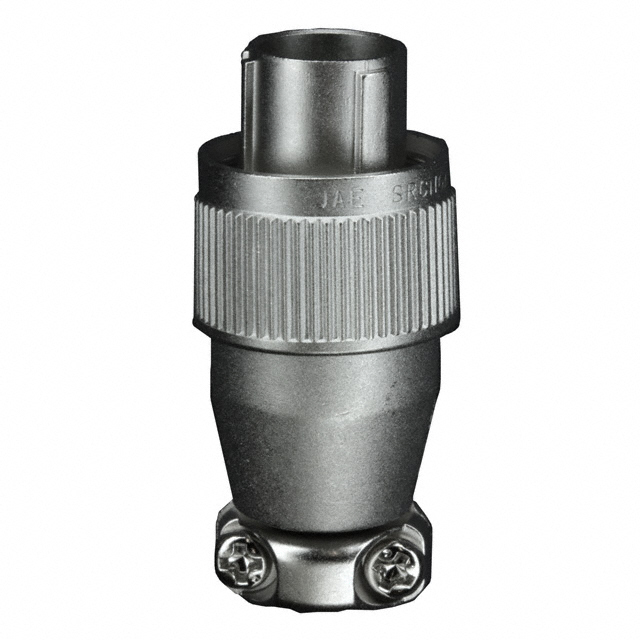

JAE Electronics SRCN6A13-5P	Copper Alloy	Silver	250 VAC 350 VDC	Plug Male Pins	85 °C	-25 °C	Aluminum Alloy Nickel	5	Metal	N (Normal)	8.5 mm	0.335 in	Silver	5 A	Nickel	UL94 V-0	Aluminum Alloy	Communication Systems Measurement Telecommunications Test Equipment	Free Hanging (In-Line)	13-5	Plastic	Threaded	Backshell Cable Clamp Coupling Nut
