APT3216 Series

Catalog

LED UNI-COLOR SB. YELLOW 590NM 2-PIN CHIP LED T/R

Part	Millicandela Rating	Color	Wavelength - Dominant	Lens Transparency	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Lens Style	Configuration	Supplier Device Package	Wavelength - Peak	Current - Test	Mounting Type	Viewing Angle	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Package / Case

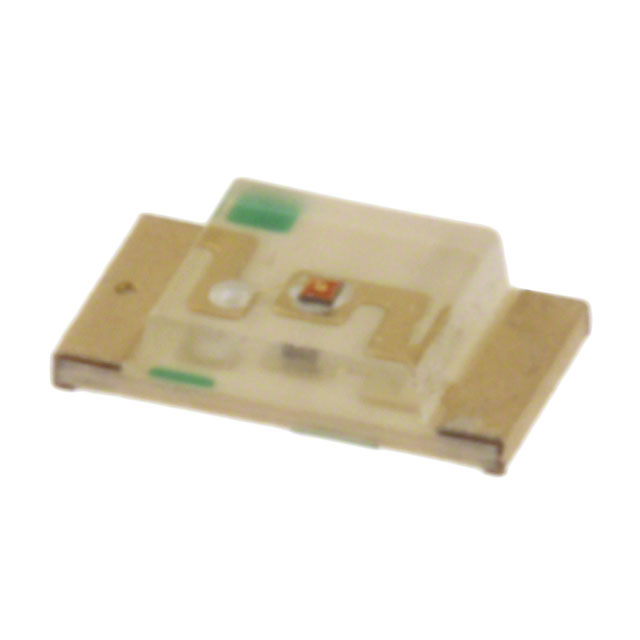

Kingbright APT3216SYCK/J3-PRV	320 mcd	Yellow	590 nm	Clear	1.6 mm	2 mm	2 V	Rectangle with Flat Top	Standard	Chip LED	590 nm	20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)
Kingbright APT3216SECK/J3-PRV	350 mcd	Red	625 nm	Clear	1.6 mm	2 mm	2.2 V	Rectangle with Flat Top	Standard	Chip LED	640 nm	20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)

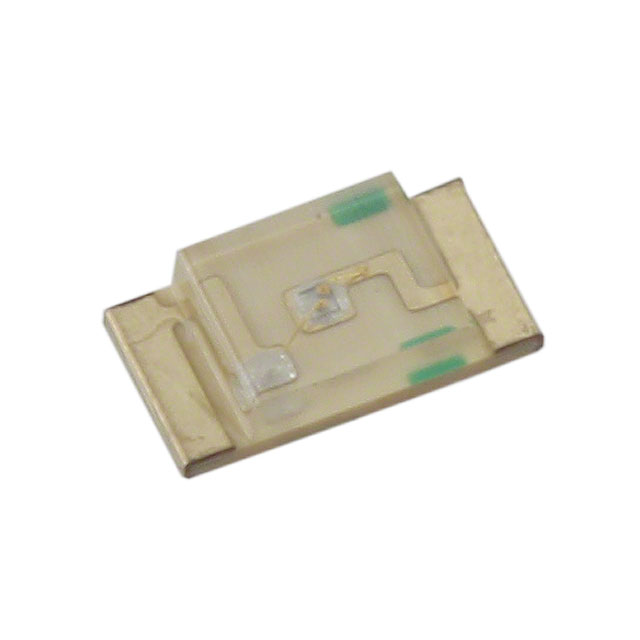

Kingbright APT3216QBC/D	100 mcd	Blue	465 nm	Clear	1.6 mm	2 mm	3.3 V	Rectangle with Flat Top	Standard	Chip LED	460 nm	20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)

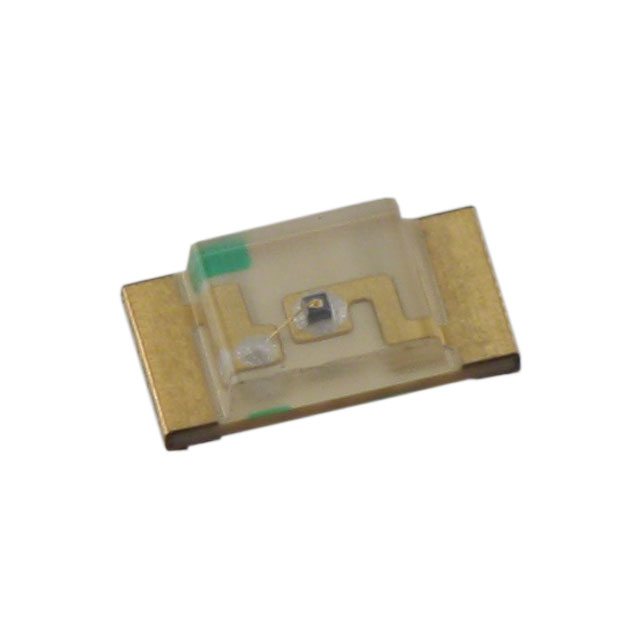

Kingbright APT3216SRCPRV	30 mcd	Red	640 nm	Clear	1.6 mm	2 mm	1.85 V	Rectangle with Flat Top	Standard	Chip LED	655 nm	20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)
Kingbright APT3216MGC	70 mcd	Green	570 nm	Clear	1.6 mm	2 mm	2.1 V	Rectangle with Flat Top	Standard	Chip LED		20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)

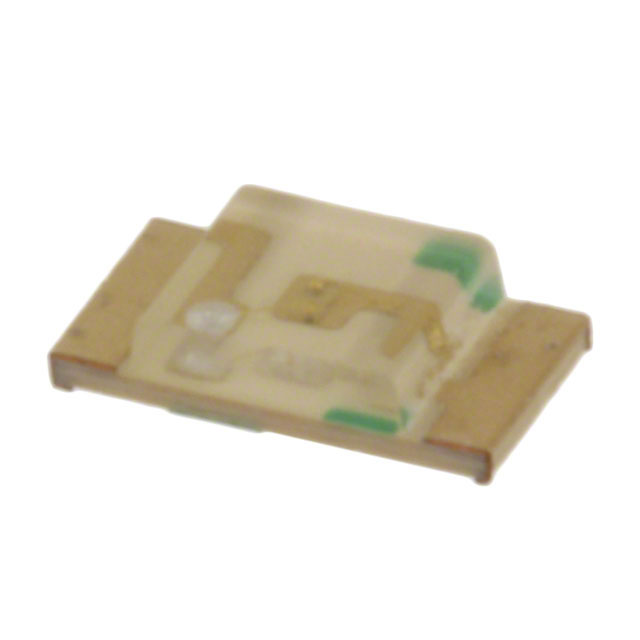

Kingbright APT3216VBC/D	180 mcd	Blue	470 nm	Clear	1.6 mm	2 mm	3.3 V	Rectangle with Flat Top	Standard	Chip LED	465 nm	20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)
Kingbright APT3216LSECK/J3-PRV	40 mcd	Red	625 nm	Clear	1.6 mm	1.9 mm	1.8 V	Rectangle with Flat Top	Standard	2-SMD	640 nm	2 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)
Kingbright APT3216YC	8 mcd	Yellow	588 nm	Clear	1.6 mm	2 mm	2.1 V	Rectangle with Flat Top	Standard	Chip LED	590 nm	20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)

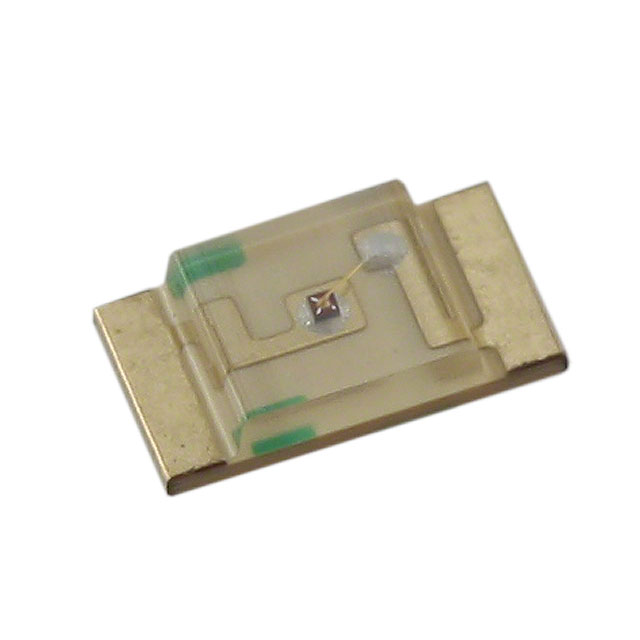

Kingbright APT3216SYCK	150 mcd	Yellow	590 nm	Clear	1.6 mm	2 mm	2 V	Rectangle with Flat Top	Standard	Chip LED	590 nm	20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)

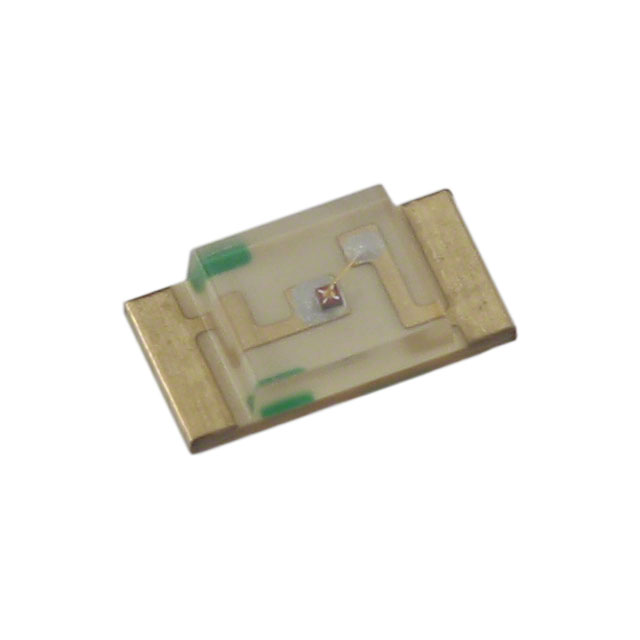

Kingbright APT3216SURCK	80 mcd	Red	630 nm	Clear	1.6 mm	2 mm	1.95 V	Rectangle with Flat Top	Standard	Chip LED	645 nm	20 mA	Surface Mount	120 °	Colorless	1.6 mm	3.2 mm	1206 (3216 Metric)
