002619 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 6 POS 3.96MM SOLDER ST TOP ENTRY THRU-HOLE KK BAG

Part	Applications	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Style	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Fastening Type	Termination	Contact Material	Shrouding	Connector Type	Number of Rows	Contact Shape	Contact Type	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Color	Number of Positions	Mounting Type	Material Flammability Rating
Molex 0026192061	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural	6	Through Hole	UL94 V-2
Molex 0026192161	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural	16	Through Hole	UL94 V-2
Molex 0026192181	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural	18	Through Hole	UL94 V-2

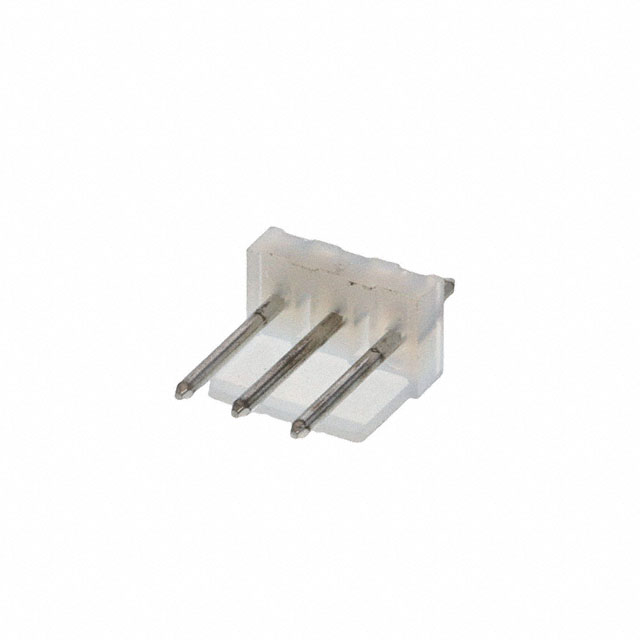

Molex 0026192031	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural		Through Hole	UL94 V-2

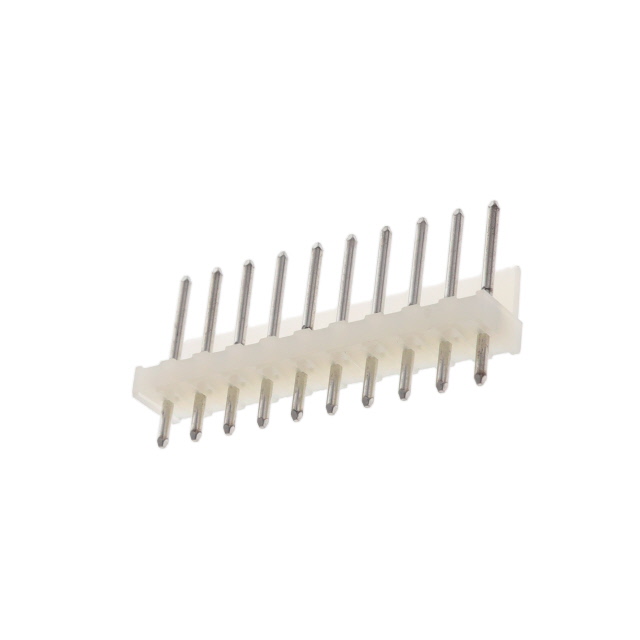

Molex 0026192101	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural	10	Through Hole	UL94 V-2
Molex 0026192151	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural	15	Through Hole	UL94 V-2
Molex 0026192071	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural	7	Through Hole	UL94 V-2
Molex 0026192171	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural		Through Hole	UL94 V-2
Molex 0026192051	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural	5	Through Hole	UL94 V-2

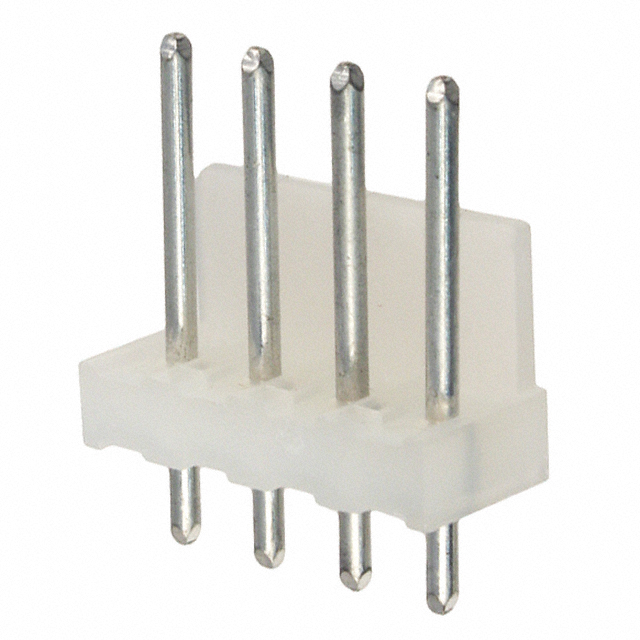

Molex 0026192041	Automotive General Purpose Industrial Medical Telecommunications	Nylon Polyamide (PA)	11.43 mm	0.45 in	4.45 mm	0.175 in	Board to Board Cable	3.96 mm	0.156 in	Tin	100 çin	2.54 çm	All	Push-Pull	Solder	Brass	Shrouded - 1 Wall	Header	1	Circular	Male Pin	0.359 in	9.12 mm	19.05 mm	0.75 in	Natural	4	Through Hole	UL94 V-2
