THB1224 Series
Manufacturer: Delta Electronics
Beta
⌘K

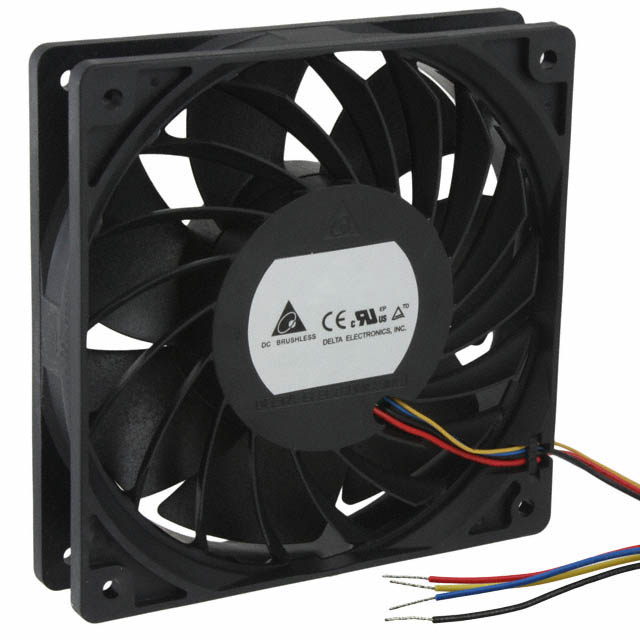

FAN AXIAL 120X25.4MM 24VDC WIRE
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Width [y] | Bearing Type | Static Pressure | Static Pressure | Weight | Weight | Termination | Fan Type | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow | Features | Approval Agency | Noise | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Rated | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 27.5 VDC | 18 VDC | 0.95 A | Plastic | 70000 Hrs | 25.4 mm | Ball | 2.139 in H2O | 532.8 Pa | 0.437 lb | 198 g | 4 Wire Leads | Tubeaxial | 120 mm | 120 mm | 174.7 CFM | 4.89 m³/min | Locked Rotor Protection PWM Control Speed Sensor (Tach) | CE cURus TUV | 65 dB | 8300 RPM | 70 °C | -10 °C | 22.8 W | 24 VDC | IP55 - Dust Protected Water Resistant |
