178-037 Series
Manufacturer: NorComp Inc.
Beta
⌘K

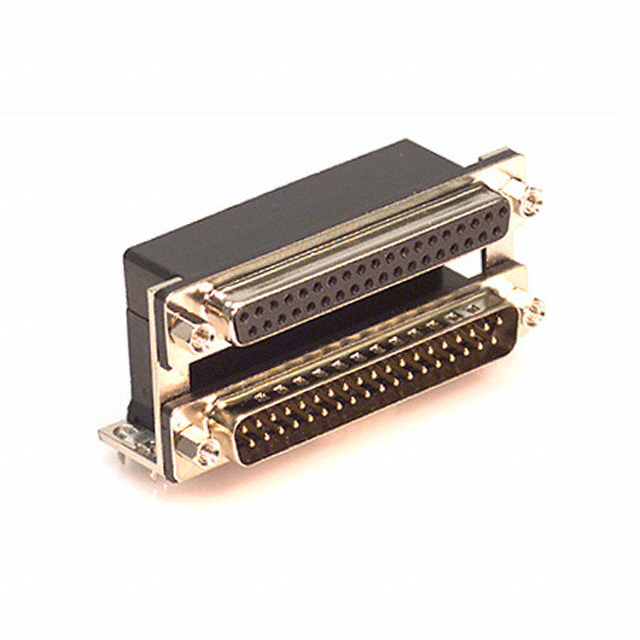

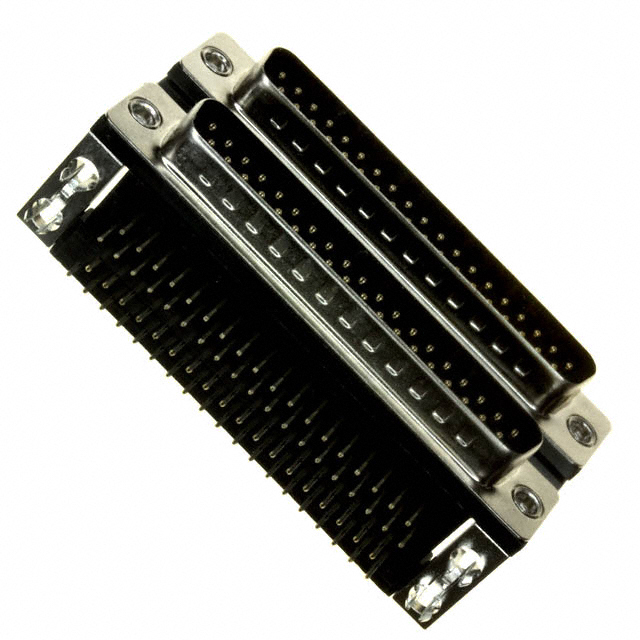

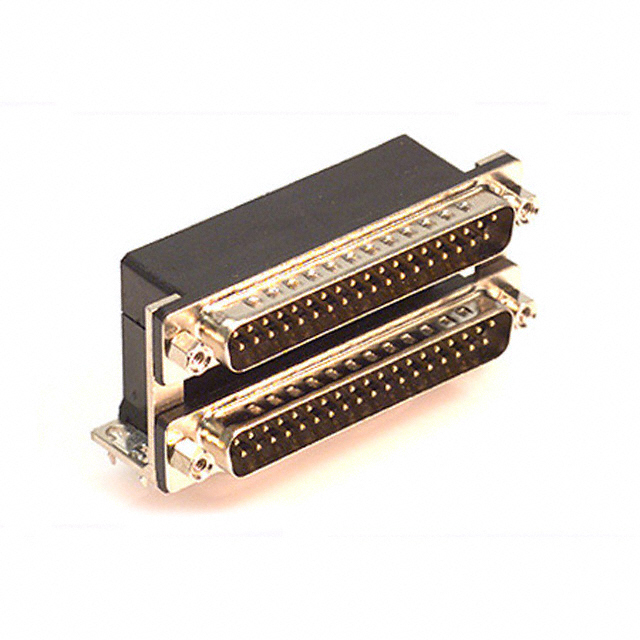

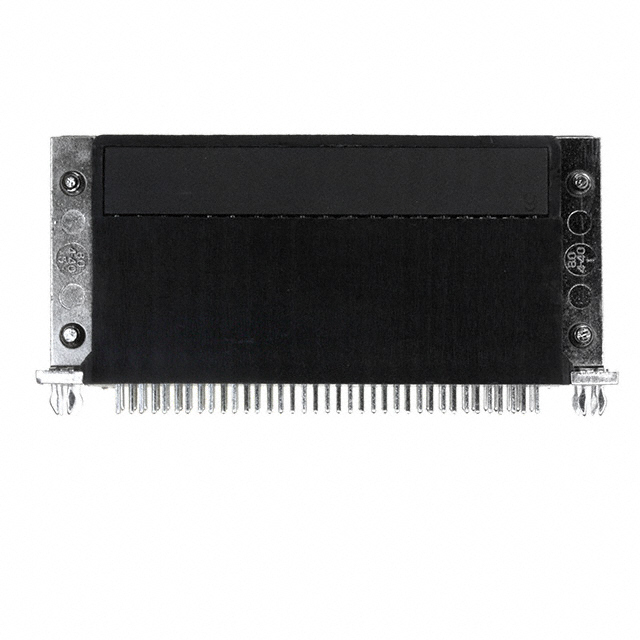

STACKED D SUB CONNECTOR, 178 SERIES, DC, PLUG, 37 CONTACTS, DC, RECEPTACLE
| Part | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Contact Material | Features | Connector Type | Contact Finish Thickness | Backset Spacing | Backset Spacing | Termination | Shell Material, Finish | Contact Finish | Material Flammability Rating | Mounting Type | Shell Size, Connector Layout | Flange Feature | Flange Feature | Number of Positions [Min] | Number of Positions [Max] | Number of Rows [custom] | Contact Type | Current Rating (Amps) | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Grounding Indents Shielded | Plug Male Pins Receptacle Female Sockets | Flash | 8.08 mm | 0.318 " | Solder | Nickel Plated Steel | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | Housing/Shell | 4-40 | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked |
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Grounding Indents Shielded | Plug Male Pins | Flash | 8.08 mm | 0.318 " | Solder | Nickel Plated Steel | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | Housing/Shell | 4-40 | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked |
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Grounding Indents Shielded | Plug Male Pins Receptacle Female Sockets | Flash | 8.08 mm | 0.318 " | Solder | Nickel Plated Steel | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | Housing/Shell | 4-40 | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked |
 NorComp Inc. | Polyester Glass Filled | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Grounding Indents Shielded | Plug Male Pins | Flash | 8.08 mm | 0.318 " | Solder | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | 4-40 Mating Side Female Screwlock | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked | ||
 NorComp Inc. | Polyester Glass Filled | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Grounding Indents Shielded | Plug Male Pins Receptacle Female Sockets | Flash | 8.08 mm | 0.318 " | Solder | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | 4-40 Mating Side Female Screwlock | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked | ||
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | -55 C | 105 ░C | Stamped | Brass | Shielded | Receptacle Female Sockets | Flash | 8.08 mm | 0.318 " | Solder | Nickel Plated Steel | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | 4-40 Mating Side Female Screwlock | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked | |
NorComp Inc. | Polyester Glass Filled | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Grounding Indents Shielded | Plug Male Pins Receptacle Female Sockets | Flash | 8.08 mm | 0.318 " | Solder | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | 4-40 Mating Side Female Screwlock | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked | ||
 NorComp Inc. | Polyester Glass Filled | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Shielded | Receptacle Female Sockets | Flash | 8.08 mm | 0.318 " | Solder | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | 4-40 Mating Side Female Screwlock | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked | ||
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Shielded | Receptacle Female Sockets | Flash | 8.08 mm | 0.318 " | Solder | Nickel Plated Steel | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | Housing/Shell | 4-40 | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked |
NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | -55 C | 105 ░C | Stamped | Brass | Board Lock Grounding Indents Shielded | Plug Male Pins | Flash | 8.08 mm | 0.318 " | Solder | Nickel Plated Steel | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 4 | 4-40 Mating Side Female Screwlock | 37 | 37 | 2 | Signal | 5 A | D-Sub - Stacked |
