DEM9 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

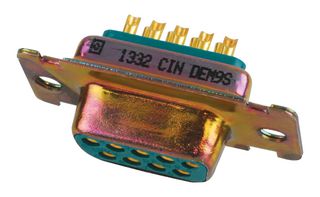

D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, SOLDER CUP, DE, SERIES 1, METAL BODY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Material | Current Rating (Amps) | Material Flammability Rating | Flange Feature | Contact Type | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Connector Style | Number of Positions | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | 5 A | UL94 V-0 | Housing/Shell (Unthreaded) | Signal | Gold | 1 | DE E | 30 Áin | 0.76 Ám | 2 | Yellow Chromate Plated Zinc | Steel | D-Sub | 9 | Free Hanging (In-Line) | Receptacle Female Sockets |
 Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | 5 A | UL94 V-0 | Housing/Shell (Unthreaded) | Signal | Gold | 1 | DE E | 30 Áin | 0.76 Ám | 2 | D-Sub | 9 | Free Hanging (In-Line) | Receptacle Female Sockets | ||
Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | 5 A | UL94 V-0 | Housing/Shell (Unthreaded) | Signal | Gold | 1 | DE E | 30 Áin | 0.76 Ám | 2 | D-Sub | 9 | Free Hanging (In-Line) | Receptacle Female Sockets | ||
Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Brass | 5 A | UL94 V-0 | Housing/Shell (Unthreaded) | Signal | Gold | 1 | DE E | 30 Áin | 0.76 Ám | 2 | Yellow Chromate Plated Zinc | Steel | D-Sub | 9 | Free Hanging (In-Line) | Plug Male Pins |
