TR9KZ8421 Series

Catalog

AC/DC DESKTOP ADAPTER 19V 160W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Form	Efficiency	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Applications	Input Type	Output Connector	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Region Utilized	Standard Number	Power (Watts)	Input Connector	Cord Length	Cord Length	Polarization	Output Connector [x]	Output Connector [diameter]

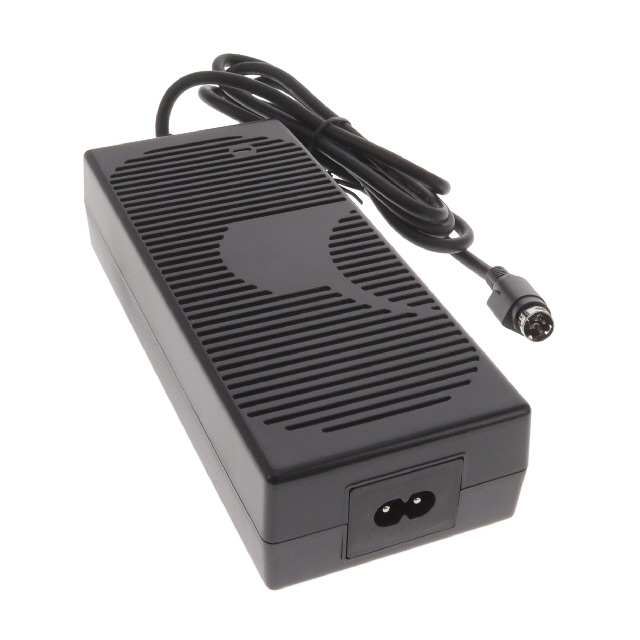

GlobTek, Inc. TR9KZ8421YL4IMR6B	264 VAC	90 VAC	19 V	Desktop (Class II)	CoC Tier 2 Level VI	150 mW	40 °C	-10 °C	8.42 A	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	Power DIN 4 Pin	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	CB CCC CE cETLus EAC ETL PSE RCM S-Mark VCCI	International	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	160 W	IEC 320-C8	1.2 m	47.2 in

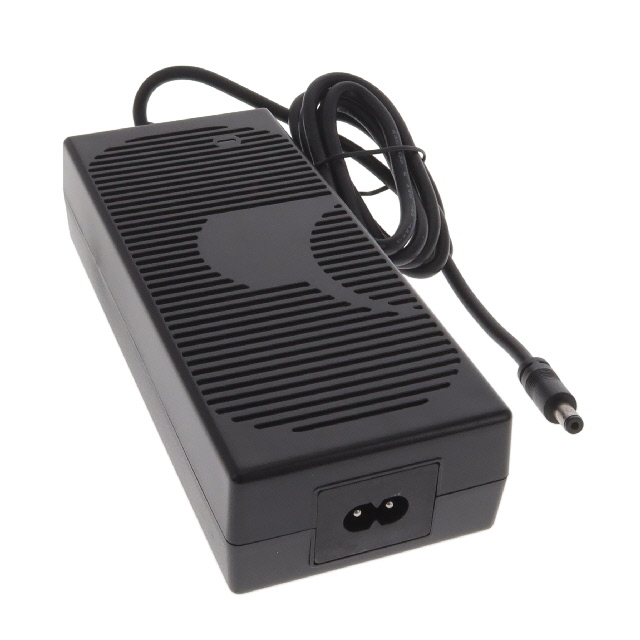

GlobTek, Inc. TR9KZ8421CCPIMR6B	264 VAC	90 VAC	19 V	Desktop (Class II)	CoC Tier 2 Level VI	150 mW	40 °C	-10 °C	8.42 A	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	Barrel Plug	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	CB CCC CE cETLus EAC ETL PSE RCM S-Mark VCCI	International	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	160 W	IEC 320-C8	1.2 m	47.2 in	Positive Center	11 mm	2.1 mm 5.5 mm

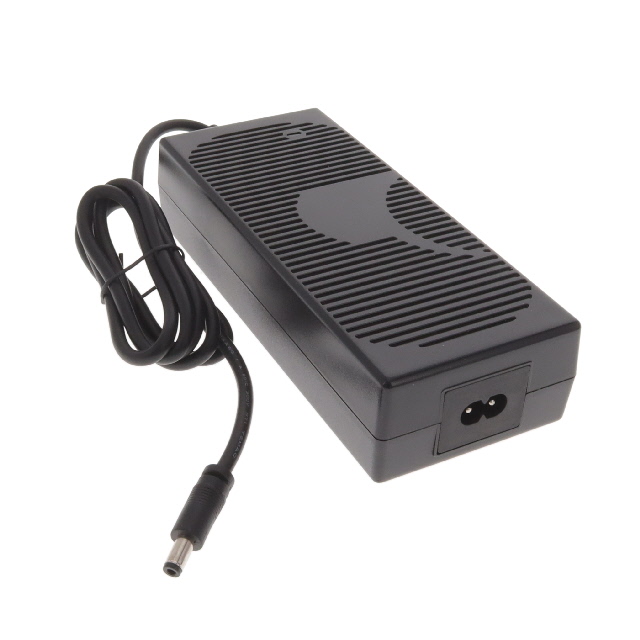

GlobTek, Inc. TR9KZ8421LCPIMR6B	264 VAC	90 VAC	19 V	Desktop (Class II)	CoC Tier 2 Level VI	150 mW	40 °C	-10 °C	8.42 A	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	Barrel Plug	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	CB CCC CE cETLus EAC ETL PSE RCM S-Mark VCCI	International	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	160 W	IEC 320-C8	1.2 m	47.2 in	Positive Center	11 mm	2.5 mm 5.5 mm
