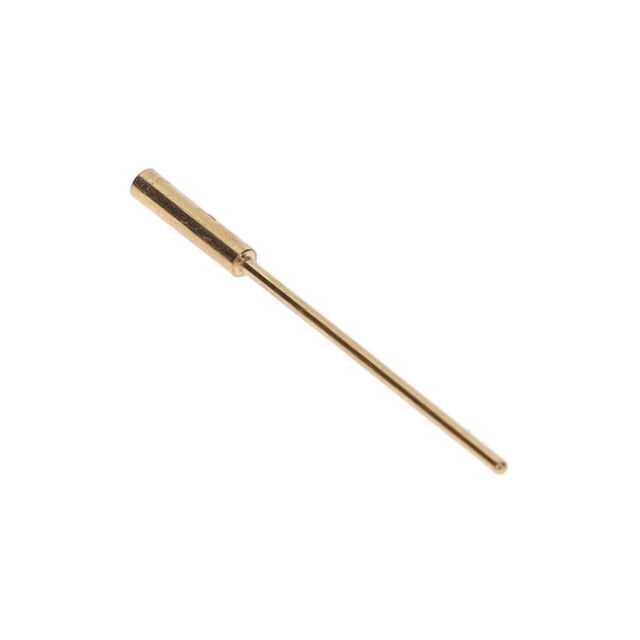

0461-5 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Tail Type	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Length - Overall [x]	Length - Overall [x]	Socket Depth [z]	Socket Depth [z]	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0461-5-15-80-21-27-04-0	-55 C	125 °C	Gold	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.46 mm	0.018 in	30 Áin	0.76 Ám	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0461-5-15-15-11-27-04-0	-55 C	125 °C	Gold	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.02 in	0.015 "		0.46 mm	0.018 in	30 Áin	0.76 Ám	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm	0.51 mm
Mill-Max Manufacturing Corp. 0461-5-15-01-11-02-04-0	-55 C	125 °C	Tin-Lead	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.02 in	0.015 "		0.46 mm	0.018 in	100 µin	2.54 µm	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm	0.51 mm
Mill-Max Manufacturing Corp. 0461-5-15-01-21-02-04-0	-55 C	125 °C	Tin-Lead	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.46 mm	0.018 in	100 µin	2.54 µm	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0461-5-15-15-21-27-04-0	-55 C	125 °C	Gold	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.46 mm	0.018 in	30 Áin	0.76 Ám	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0461-5-15-80-11-27-04-0	-55 C	125 °C	Gold	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.46 mm	0.018 in	30 Áin	0.76 Ám	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0461-5-15-80-11-84-04-0	-55 C	125 °C	Tin	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.46 mm	0.018 in	100 µin	2.54 µm	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0461-5-15-01-11-27-04-0	-55 C	125 °C	Gold	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.02 in	0.015 "		0.46 mm	0.018 in	30 Áin	0.76 Ám	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm	0.51 mm
Mill-Max Manufacturing Corp. 0461-5-15-80-11-14-04-0	-55 C	125 °C	Gold	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.46 mm	0.018 in	10 Áin	0.25 Ám	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0461-5-15-80-21-84-04-0	-55 C	125 °C	Tin	Standard Tail	Solder	0.02 in	0.51 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.46 mm	0.018 in	100 µin	2.54 µm	Beryllium Copper	15.62 mm	0.615 in	3.81 mm	0.15 in	0.041 in	1.04 mm	0.031 in	0.79 mm
