CONN RCPT PIN .025-.037" SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter	Accepts Square Pin Size	Accepts Square Pin Size	Termination	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Tail Type	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish

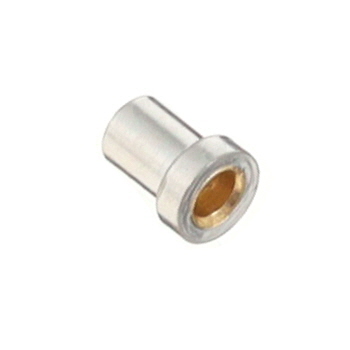

Mill-Max Manufacturing Corp. 0305-0-15-01-47-14-10-0	-55 C	125 °C	0.061 "	1.55 mm	0.025 in	0.64 mm	Solder	0.25 Ám	10 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.095 in	2.41 mm	0.051 in	1.3 mm	0.095 "	2.41 mm	No Tail	Beryllium Copper	0.076 in	1.93 mm	Gold

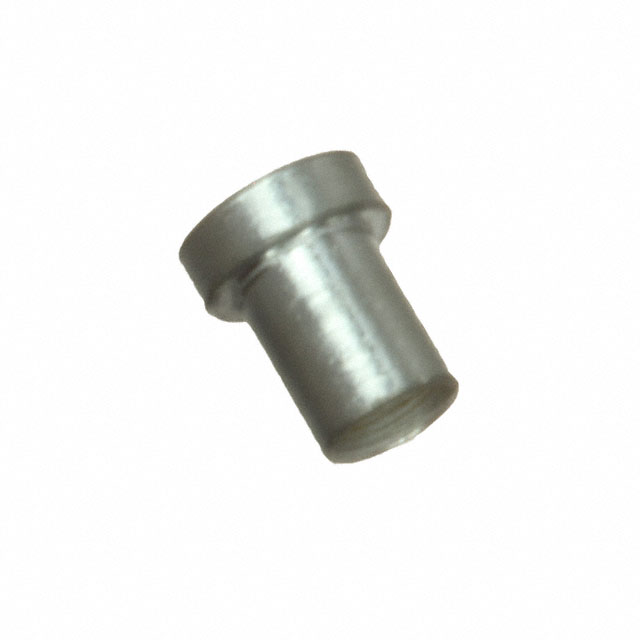

Mill-Max Manufacturing Corp. 0305-0-15-80-47-27-10-0	-55 C	125 °C	0.061 "	1.55 mm	0.025 in	0.64 mm	Solder	0.76 Ám	30 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.095 in	2.41 mm	0.051 in	1.3 mm	0.155 in	3.94 mm	No Tail	Beryllium Copper	0.076 in	1.93 mm	Gold
Mill-Max Manufacturing Corp. 0305-0-15-80-47-80-10-0	-55 C	125 °C	0.061 "	1.55 mm	0.025 in	0.64 mm	Solder	5.08 Ám	200 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.095 in	2.41 mm	0.051 in	1.3 mm	0.155 in	3.94 mm	No Tail	Beryllium Copper	0.076 in	1.93 mm	Tin

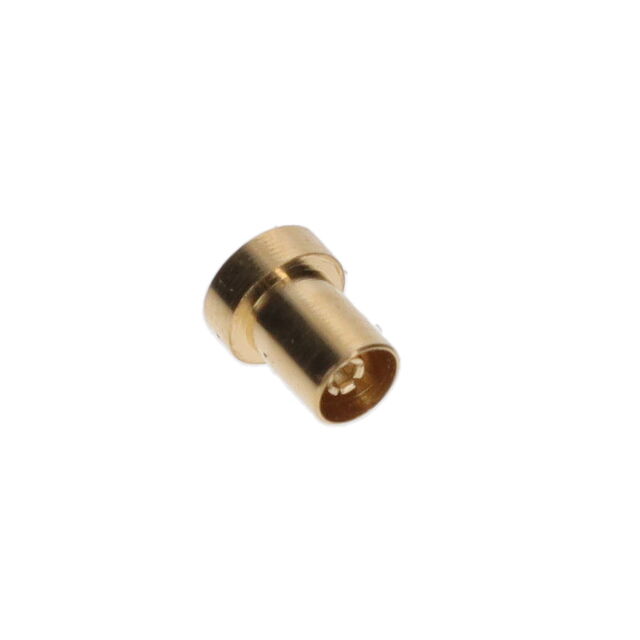

Mill-Max Manufacturing Corp. 0305-0-15-15-47-14-10-0	-55 C	125 °C	0.061 "	1.55 mm	0.025 in	0.64 mm	Solder	0.25 Ám	10 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.095 in	2.41 mm	0.051 in	1.3 mm	0.155 in	3.94 mm	No Tail	Beryllium Copper	0.076 in	1.93 mm	Gold
