VSMB1940 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K

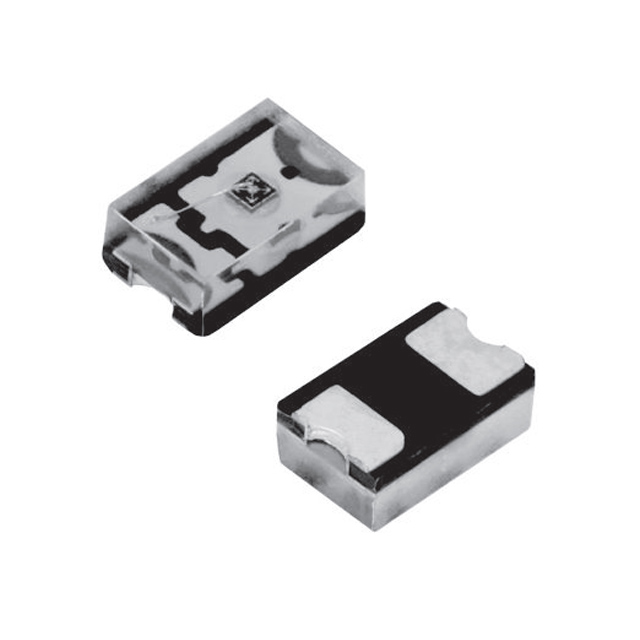

EMITTER IR 940NM 100MA 0805
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - DC Forward (If) (Max) [Max] | Package / Case | Qualification | Grade | Viewing Angle | Orientation | Radiant Intensity (Ie) Min @ If | Wavelength | Voltage - Forward (Vf) (Typ) | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | -40 °C | 105 °C | 100 mA | 0805 | AEC-Q101 | Automotive | 120 ° | Top View | 3 mW/sr | 940 nm | 1.35 V | Surface Mount | Infrared (IR) |
Vishay Semiconductor Opto Division | -40 ¯C | 85 C | 100 mA | 0805 | AEC-Q101 | Automotive | 120 ° | Top View | 3 mW/sr | 940 nm | 1.35 V | Surface Mount | Infrared (IR) |
