821K Series
Manufacturer: NorComp Inc.
Beta
⌘K

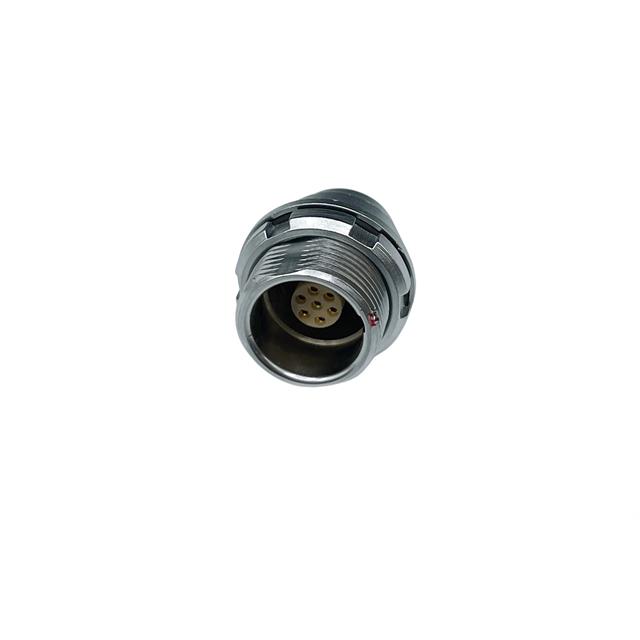

CIRCULAR CONNECTOR, QUIK-LOQ 821K SERIES, PANEL MOUNT RECEPTACLE, 7 CONTACTS, PCB SOCKET
| Part | Connector Type | Current Rating (Amps) | Shell Material | Applications | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Voltage Rating | Insert Material | Termination | Contact Finish - Mating | Shell Finish | Primary Material | Contact Material | Orientation | Shielding | Mounting Type | Mounting Feature | Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Features | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Backshell Material, Plating | Cable Opening | Cable Opening | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Receptacle Female Sockets | 7 A | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 7 | 315 V | Polyphenylene Sulfide (PPS) | Solder | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Panel Mount Through Hole | Bulkhead - Front Side Nut | Silver | -40 C | 200 °C | Push-Pull | ||||||||||||
 NorComp Inc. | Receptacle Female Sockets | 15 A | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 2 | 500 V | Polyphenylene Sulfide (PPS) | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Free Hanging (In-Line) | Black Silver | -40 C | 200 °C | Push-Pull | Backshell Strain Relief | 0.283 " | 7.2 mm | 6.3 mm | 0.248 " | Brass Chrome | ||||||||
NorComp Inc. | Receptacle Female Sockets | 12 Amps | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 430 V | Polyphenylene Sulfide (PPS) | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Free Hanging (In-Line) | Black Silver | -40 C | 200 °C | Push-Pull | Backshell Strain Relief | 0.205 in 5.2 mm | 0.169 " 4.3 mm | Brass Chrome | |||||||||||
NorComp Inc. | Receptacle Female Sockets | 7 A | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 7 | 315 V | Polyphenylene Sulfide (PPS) | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Free Hanging (In-Line) | Black Silver | -40 C | 200 °C | Push-Pull | Backshell Strain Relief | 0.165 in | Brass Chrome | 0.13 in | 3.3 mm 4.2 mm | |||||||||
 NorComp Inc. | Receptacle Female Sockets | 15 A | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 2 | 500 V | Polyphenylene Sulfide (PPS) | Solder | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Panel Mount Through Hole | Bulkhead - Front Side Nut | Silver | -40 C | 200 °C | Push-Pull | ||||||||||||
 NorComp Inc. | Receptacle Female Sockets | 9 A | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 5 | 415 V | Polyphenylene Sulfide (PPS) | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Free Hanging (In-Line) | Black Silver | -40 C | 200 °C | Push-Pull | Backshell Strain Relief | 0.205 in 5.2 mm | 0.169 " 4.3 mm | Brass Chrome | ||||||||||
NorComp Inc. | Receptacle Female Sockets | 12 Amps | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 430 V | Polyphenylene Sulfide (PPS) | Solder | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Panel Mount Through Hole | Bulkhead - Front Side Nut | Silver | -40 C | 200 °C | Push-Pull | |||||||||||||
 NorComp Inc. | Plug Male Pins | 12 Amps | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 430 V | Polyphenylene Sulfide (PPS) | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Free Hanging (In-Line) | Black Silver | -40 C | 200 °C | Push-Pull | Backshell Strain Relief | 0.205 in 5.2 mm | 0.169 " 4.3 mm | Brass Chrome | |||||||||||
 NorComp Inc. | Plug Male Pins | 9 A | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 5 | 415 V | Polyphenylene Sulfide (PPS) | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Free Hanging (In-Line) | Black Silver | -40 C | 200 °C | Push-Pull | Backshell Strain Relief | Brass Chrome | 5.3 mm | 0.244 " | 6.2 mm | 0.209 in | ||||||||
NorComp Inc. | Plug Male Pins | 12 Amps | Brass | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | IP67 - Dust Tight Waterproof | 7 µin | 0.178 µm | 430 V | Polyphenylene Sulfide (PPS) | Gold | Nickel | Metal | Copper Alloy | Keyed | Shielded | Free Hanging (In-Line) | Black Silver | -40 C | 200 °C | Push-Pull | Backshell Strain Relief | Brass Chrome | 5.3 mm | 0.244 " | 6.2 mm | 0.209 in |
