BQ40Z50-R1 Series

1-4 series Li-ion battery pack manager supporting Turbo Mode 2.0

Catalog

1-4 series Li-ion battery pack manager supporting Turbo Mode 2.0

Part	Number of Cells [Max]	Number of Cells [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Function	Package / Case	Battery Chemistry	Mounting Type	Supplier Device Package	Interface	Utilized IC / Part	Contents	Type	Supplied Contents
Texas Instruments BQ40Z50RSMR-R1	4	1	85 °C	-40 °C	Over Current Over Temperature Over/Under Voltage Short Circuit	Multi-Function Controller	32-VFQFN Exposed Pad	Lithium Ion/Polymer	Surface Mount	32-VQFN (4x4)	SMBus
Texas Instruments BQ40Z50RSMT-R2	4	1	85 °C	-40 °C	Over Current Over Temperature Over/Under Voltage Short Circuit	Multi-Function Controller	32-VFQFN Exposed Pad	Lithium Ion/Polymer	Surface Mount	32-VQFN (4x4)	SMBus

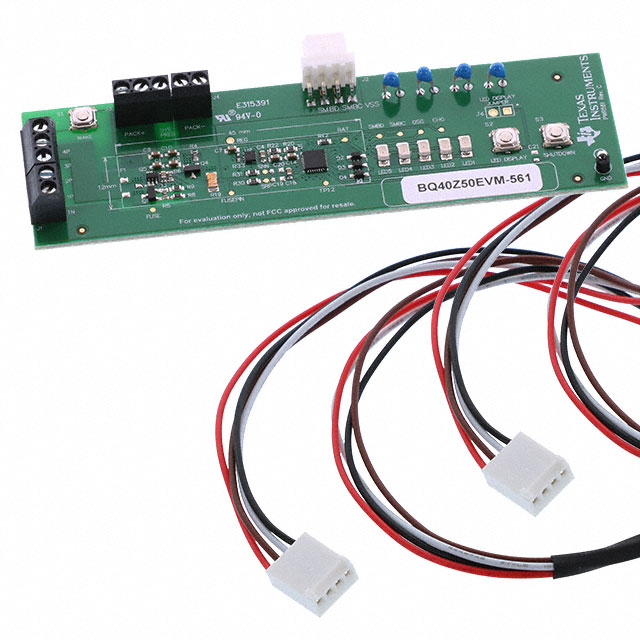

Texas Instruments BQ40Z50EVM-561						Fuel Gauge						BQ40Z50	Board(s)	Power Management	Board(s)
Texas Instruments BQ40Z50RSMR-R2	4	1	85 °C	-40 °C	Over Current Over Temperature Over/Under Voltage Short Circuit	Multi-Function Controller	32-VFQFN Exposed Pad	Lithium Ion/Polymer	Surface Mount	32-VQFN (4x4)	SMBus
Texas Instruments BQ40Z50RSMT-R1	4	1	85 °C	-40 °C	Over Current Over Temperature Over/Under Voltage Short Circuit	Multi-Function Controller	32-VFQFN Exposed Pad	Lithium Ion/Polymer	Surface Mount	32-VQFN (4x4)	SMBus
Texas Instruments BQ40Z50RSMR	4	1	85 °C	-40 °C	Over Current Over Temperature Over/Under Voltage Short Circuit	Multi-Function Controller	32-VFQFN Exposed Pad	Lithium Ion/Polymer	Surface Mount	32-VQFN (4x4)	SMBus
Texas Instruments BQ40Z50RSMT	4	1	85 °C	-40 °C	Over Current Over Temperature Over/Under Voltage Short Circuit	Multi-Function Controller	32-VFQFN Exposed Pad	Lithium Ion/Polymer	Surface Mount	32-VQFN (4x4)	SMBus

Catalog

1-4 series Li-ion battery pack manager supporting Turbo Mode 2.0

Key Features

• Fully integrated 1-series, 2-series, 3-series, and 4-series Li-ion or Li-polymer cell battery pack manager and protectionNext-generation patented Impedance Track™ technology accurately measures available charge in Li-ion and Li-polymer batteriesHigh-side N-CH protection FET driveIntegrated cell balancing while charging or at restSuitable for batteries between 100 mAh and 29 AhFull array of programmable protection featuresVoltageCurrentTemperatureCharge timeoutCHG/DSG FETsAFESophisticated charge algorithmsJEITAEnhanced chargingAdaptive chargingCell balancingSupports TURBO Mode 2.0Supports battery trip point (BTP)Diagnostic lifetime data monitor and black box recorderLED displaySupports two-wire SMBus v1.1 interfaceSHA-1 authenticationIATA supportCompact package: 32-lead QFN (RSM)Fully integrated 1-series, 2-series, 3-series, and 4-series Li-ion or Li-polymer cell battery pack manager and protectionNext-generation patented Impedance Track™ technology accurately measures available charge in Li-ion and Li-polymer batteriesHigh-side N-CH protection FET driveIntegrated cell balancing while charging or at restSuitable for batteries between 100 mAh and 29 AhFull array of programmable protection featuresVoltageCurrentTemperatureCharge timeoutCHG/DSG FETsAFESophisticated charge algorithmsJEITAEnhanced chargingAdaptive chargingCell balancingSupports TURBO Mode 2.0Supports battery trip point (BTP)Diagnostic lifetime data monitor and black box recorderLED displaySupports two-wire SMBus v1.1 interfaceSHA-1 authenticationIATA supportCompact package: 32-lead QFN (RSM)

Description

The bq40z50-R1 device, incorporating patented Impedance Track™ technology, is a fully integrated, single-chip, pack-based solution that provides a rich array of features for gas gauging, protection, and authentication for 1-series, 2-series, 3-series, and 4-series cell Li-Ion and Li-Polymer battery packs. Using its integrated high-performance analog peripherals, the bq40z50-R1 device measures and maintains an accurate record of available capacity, voltage, current, temperature, and other critical parameters in Li-Ion or Li-Polymer batteries, and reports this information to the system host controller over an SMBus v1.1 compatible interface. The bq40z50-R1 device supports TURBO BOOST mode by providing the available max power and max current to the host system. The device also supports Battery Trip Point to send a BTP interrupt signal to the host system at the pre-set state of charge thresholds. The bq40z50-R1 provides software-based 1st- and 2nd-level safety protection against overvoltage, undervoltage, overcurrent, short-circuit current, overload, and overtemperature conditions, as well as other pack- and cell-related faults. SHA-1 authentication, with secure memory for authentication keys, enables identification of genuine battery packs. The compact 32-lead QFN package minimizes solution cost and size for smart batteries while providing maximum functionality and safety for battery gauging applications. The bq40z50-R1 device, incorporating patented Impedance Track™ technology, is a fully integrated, single-chip, pack-based solution that provides a rich array of features for gas gauging, protection, and authentication for 1-series, 2-series, 3-series, and 4-series cell Li-Ion and Li-Polymer battery packs. Using its integrated high-performance analog peripherals, the bq40z50-R1 device measures and maintains an accurate record of available capacity, voltage, current, temperature, and other critical parameters in Li-Ion or Li-Polymer batteries, and reports this information to the system host controller over an SMBus v1.1 compatible interface. The bq40z50-R1 device supports TURBO BOOST mode by providing the available max power and max current to the host system. The device also supports Battery Trip Point to send a BTP interrupt signal to the host system at the pre-set state of charge thresholds. The bq40z50-R1 provides software-based 1st- and 2nd-level safety protection against overvoltage, undervoltage, overcurrent, short-circuit current, overload, and overtemperature conditions, as well as other pack- and cell-related faults. SHA-1 authentication, with secure memory for authentication keys, enables identification of genuine battery packs. The compact 32-lead QFN package minimizes solution cost and size for smart batteries while providing maximum functionality and safety for battery gauging applications.
