280371 Series

Catalog

CONN HEADER VERT 4POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Shrouding	Contact Shape	Insulation Color	Number of Rows	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Style	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Mounting Type	Overall Contact Length	Overall Contact Length	Insulation Material	Number of Positions	Current Rating (Amps)	Contact Type	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish - Mating

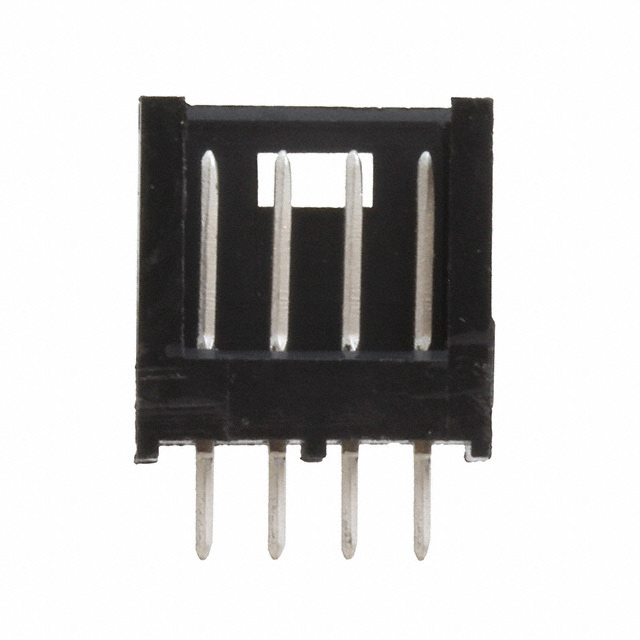

TE Connectivity Raychem Cable Protection 280371-1	0.1 in	2.54 mm	Tin	Shrouded - 3 Wall	Square	Black	1	6.6 mm	0.26 in	Board to Board Cable	Solder	Brass	118.1 µin	3 µm	All	UL94 V-0	3 µm	118.1 µin	Detent Lock	Through Hole	14.3 mm	0.563 "	Thermoplastic	4	3 A	Male Pin	Header	3.5 mm	0.138 in	12.6 mm	0.496 in	40 V	-40 °C	80 C

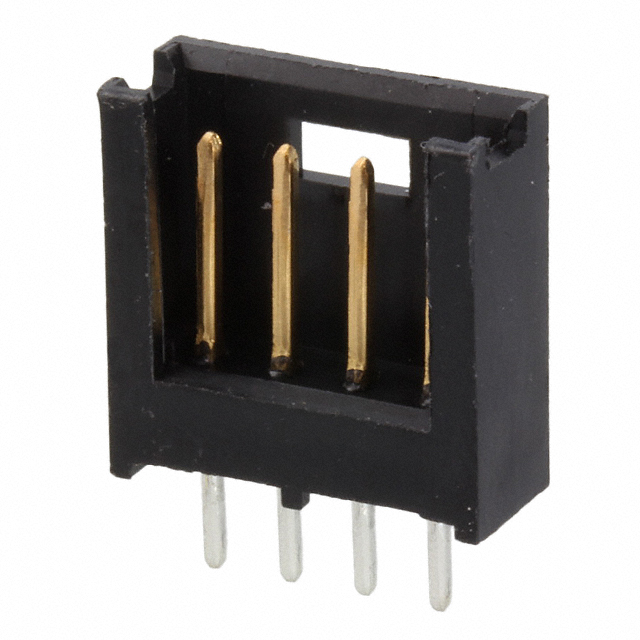

TE Connectivity Raychem Cable Protection 280371-3	0.1 in	2.54 mm	Tin	Shrouded - 3 Wall	Square	Black	1	6.6 mm	0.26 in	Board to Board Cable	Solder	Brass	0.8 µm		All	UL94 V-0	98.4 µin		Detent Lock	Through Hole	14.3 mm	0.563 "	Thermoplastic	4	3 A	Male Pin	Header	3.5 mm	0.138 in	12.6 mm	0.496 in	40 V	-40 °C	80 C	31.5 µin	2.5 µm	Gold
