502382 Series

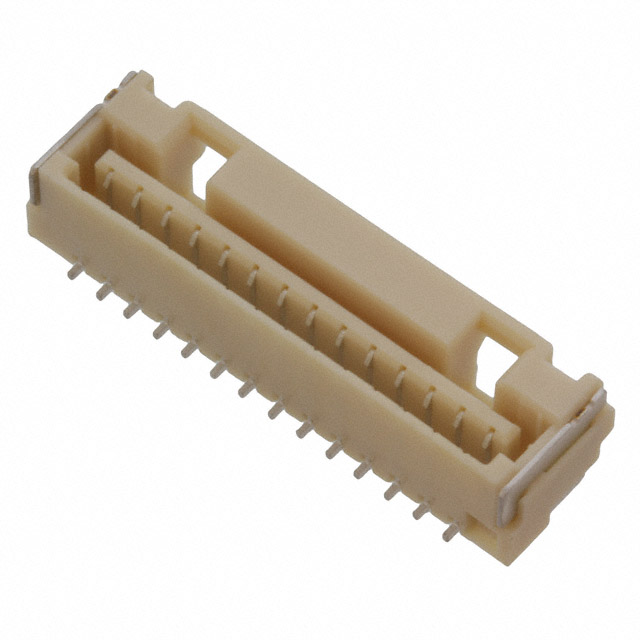

1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, Tin Plating, 14 Circuits
Manufacturer: Molex
Catalog
1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, Tin Plating, 14 Circuits
Beta
⌘K
1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, Tin Plating, 14 Circuits
1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, Tin Plating, 14 Circuits
1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, Tin Plating, 14 Circuits
| Part | Contact Material | Insulation Material | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Type | Style | Connector Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Type | Insulation Height | Insulation Height | Insulation Color | Number of Positions Loaded | Fastening Type | Material Flammability Rating | Contact Finish - Mating | Features | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 3.9 µin | 0.099 µm | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | 4 | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Natural | All | Latch Holder | UL94 V-0 | Gold | Solder Retention | ||
 Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | 7 | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Natural | All | Latch Holder | UL94 V-0 | Pick and Place Solder Retention | 39.4 µin | 1 µm | |||
 Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | 7 | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Red | All | Latch Holder | UL94 V-0 | Pick and Place Solder Retention | 39.4 µin | 1 µm | |||
Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | 12 | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Blue | All | Latch Holder | UL94 V-0 | Pick and Place Solder Retention | 39.4 µin | 1 µm | |||
 Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | 9 | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Natural | All | Latch Holder | UL94 V-0 | Pick and Place Solder Retention | 39.4 µin | 1 µm | |||
 Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | 11 | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Natural | All | Latch Holder | UL94 V-0 | Pick and Place Solder Retention | 39.4 µin | 1 µm | |||
Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | 5 | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Blue | All | Latch Holder | UL94 V-0 | Pick and Place Solder Retention | 39.4 µin | 1 µm | |||
Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Red | All | Latch Holder | UL94 V-0 | Pick and Place Solder Retention | 39.4 µin | 1 µm | ||||
 Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | 4 | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Natural | All | Latch Holder | UL94 V-0 | Pick and Place Solder Retention | 39.4 µin | 1 µm | |||
 Molex | Copper Alloy | Resin | Automotive General Purpose Industrial Lighting Medical | 39.4 çin | 1 çm | Tin | 1 | 50 V | 0.049 in | 1.25 mm | Forked | Board to Cable/Wire | Receptacle | -40 C | 105 ░C | Solder | Surface Mount | 4.4 mm | 0.173 in | Natural | All | Latch Holder | UL94 V-0 | Solder Retention | 39.4 µin | 1 µm |
