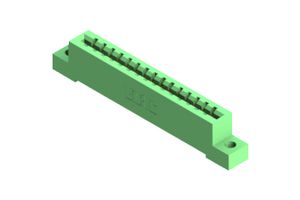

337-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 15POS 0.156
| Part | Material - Insulation | Termination Rows | Color | Number of Rows | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Contact Finish | Contact Type | Contact Material | Card Type | Pitch | Pitch | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Type | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

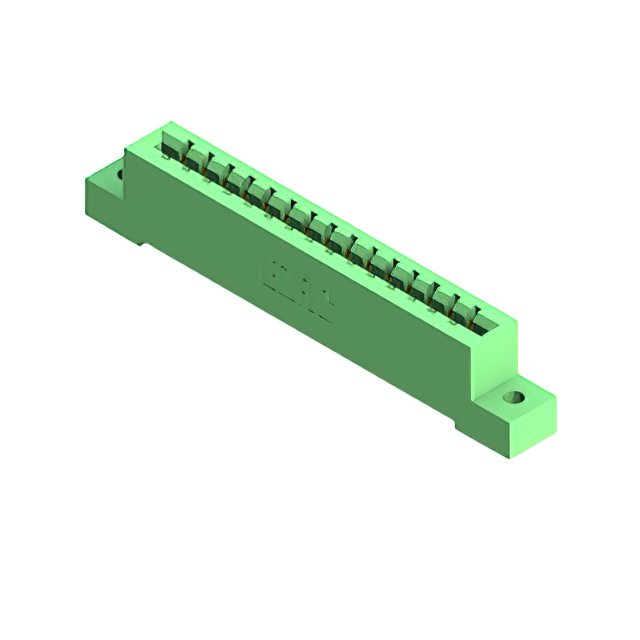

 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Solder | Through Hole | Single | |

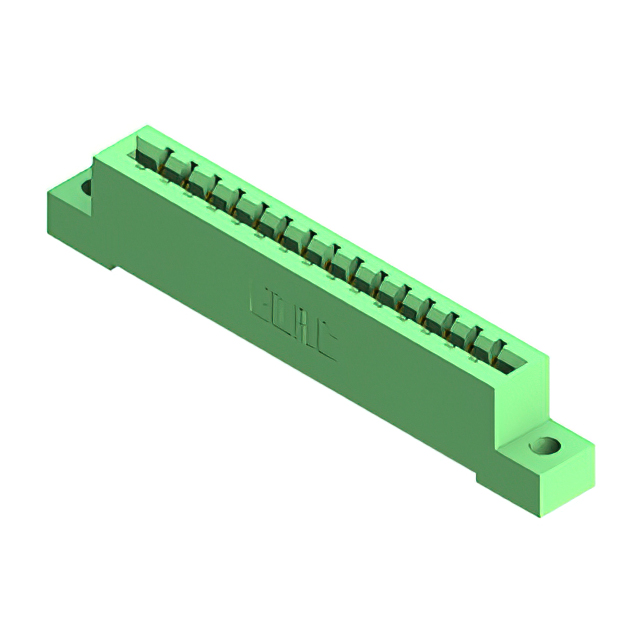

 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Solder | Through Hole | Single | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | Flush Mount M3 Threaded Insert Top Opening | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Solder | Through Hole | Single | |||

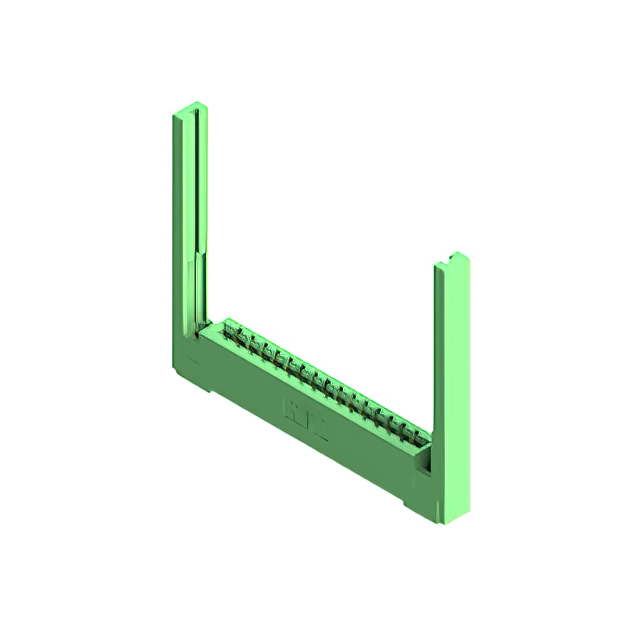

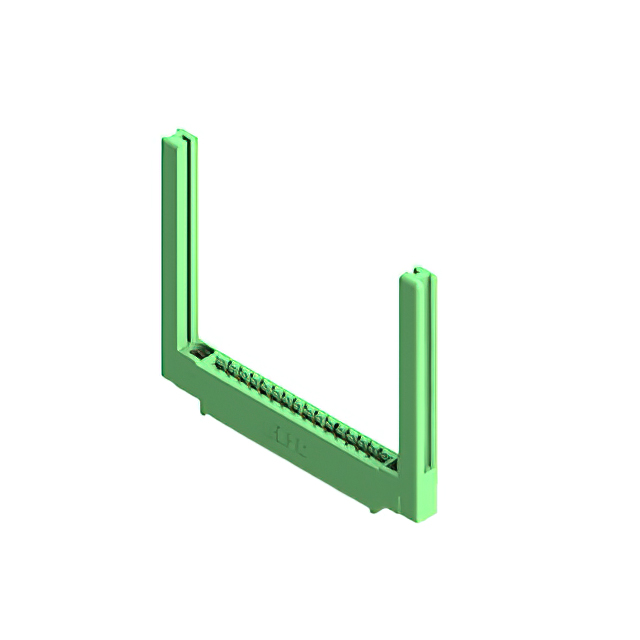

 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | 4-40 Threaded Insert Top Mount Opening | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Wire Wrap | Right Angle Through Hole | Single | Card Guides | ||

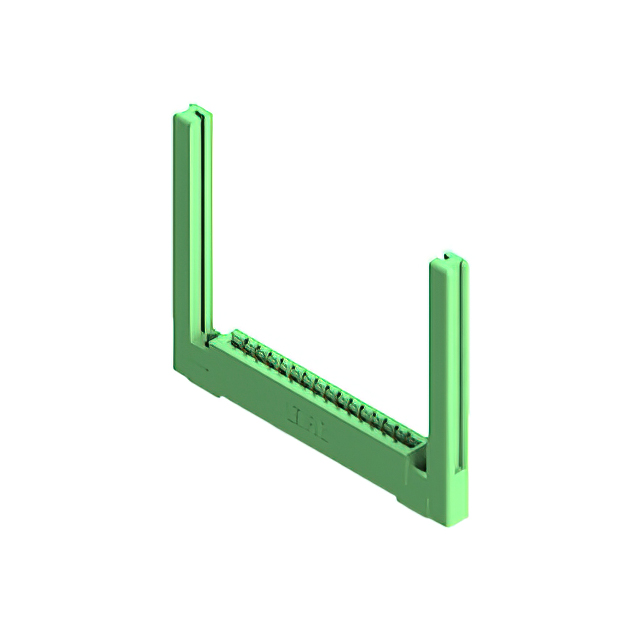

 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | 4-40 Threaded Insert Top Mount Opening | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Solder | Through Hole | Single | Card Guides | ||

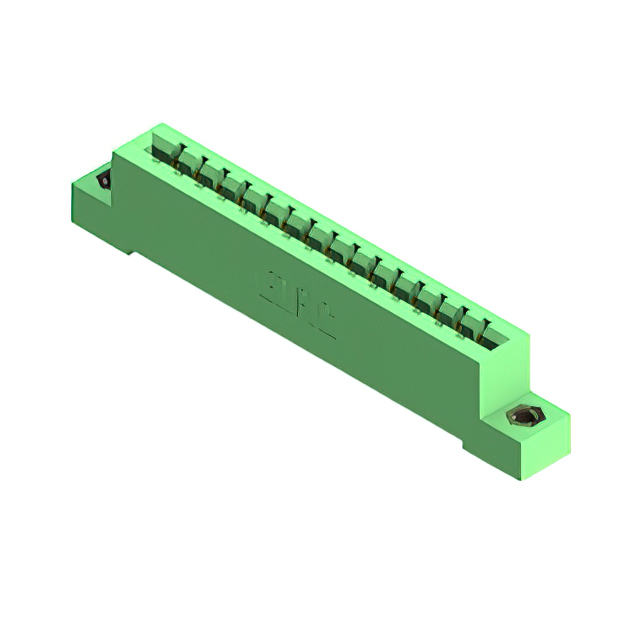

 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Solder | Through Hole | Single | |||

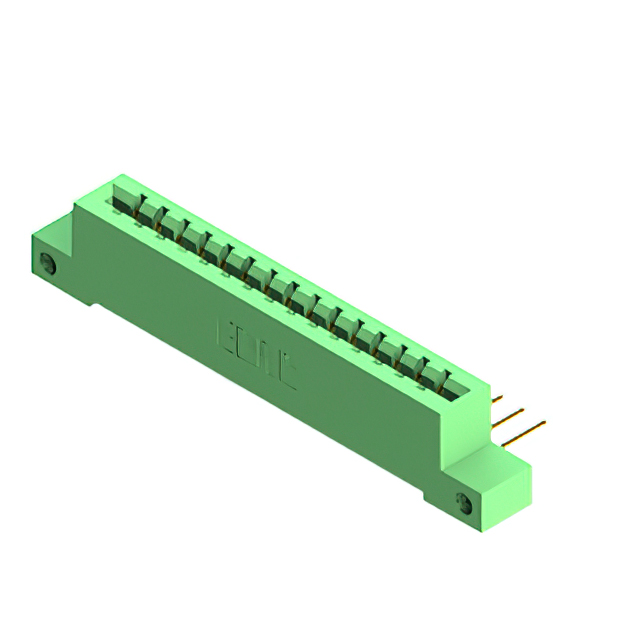

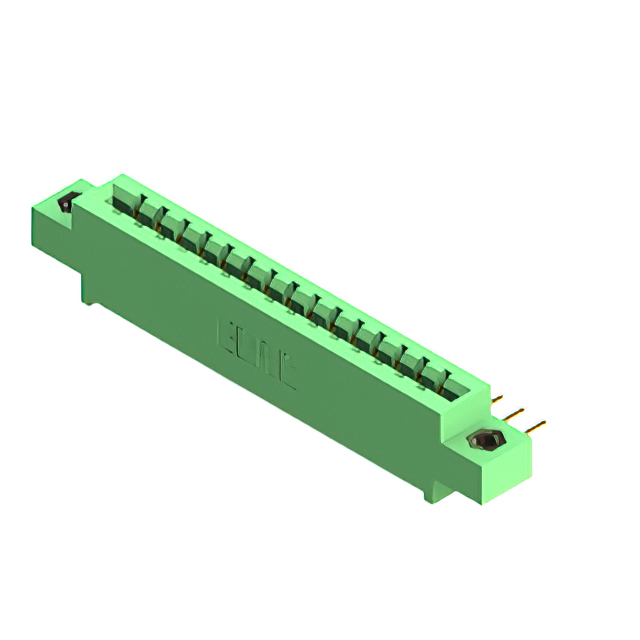

 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | M3 Threaded Insert Top Mount Opening | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Wire Wrap | Right Angle Through Hole | Single | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Solder | Through Hole | Single | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Wire Wrap | Through Hole | Single | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 1 | 15 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Female | Gold | Cantilever | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Wire Wrap | Right Angle Through Hole | Single |
