395-098 Series
Manufacturer: EDAC Inc.
Beta
⌘K

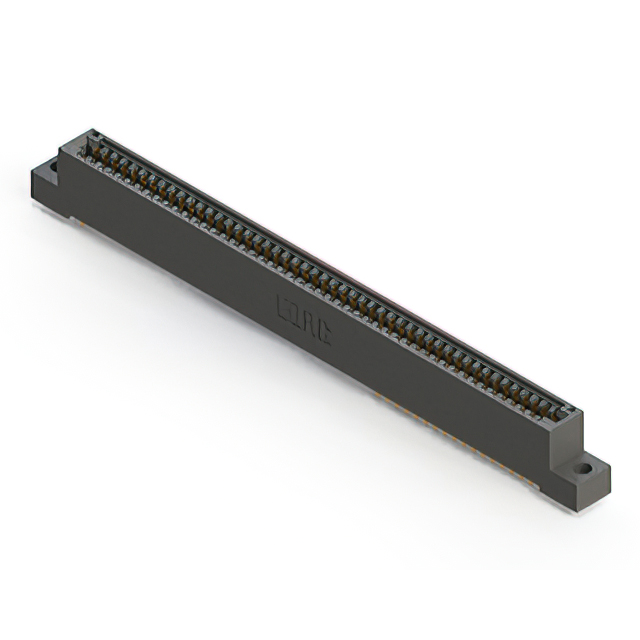

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows [custom] | Read Out | Features | Contact Type | Card Type | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Number of Positions | Mounting Type | Contact Material | Termination | Contact Finish | Color | Flange Feature | Number of Rows [custom] | Gender | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

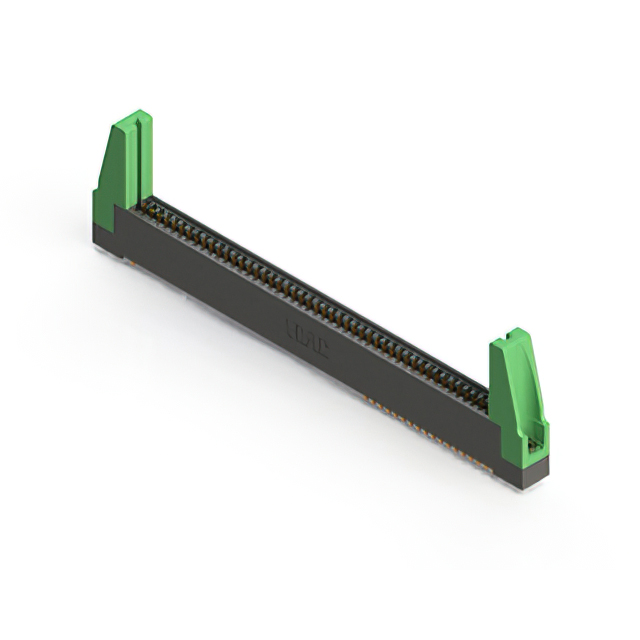

 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Card Guides | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Through Hole | Copper Alloy | Solder | Gold | Black | 4-40 Threaded Insert Top Mount Opening | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Card Extender | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Board Edge Straddle Mount | Copper Alloy | Solder | Gold | Black | Floating Bobbin Top Mount Opening | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Card Guides | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Right Angle Through Hole | Copper Alloy | Solder | Gold | Black | 4-40 Threaded Insert Top Mount Opening | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Through Hole | Copper Alloy | Wire Wrap | Gold | Black | Floating Bobbin Top Mount Opening | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Through Hole | Copper Alloy | Solder | Gold | Black | Floating Bobbin Top Mount Opening | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Right Angle Through Hole | Copper Alloy | Solder | Gold | Black | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Through Hole | Copper Alloy | Solder | Gold | Black | Flush Mount Top Opening Unthreaded | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Right Angle Through Hole | Copper Alloy | Solder | Gold | Black | Side Mount Opening Unthreaded | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Card Guides | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Through Hole | Copper Alloy | Wire Wrap | Gold | Black | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Dual | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 49 | 98 | Right Angle Through Hole | Copper Alloy | Solder | Gold | Black | 4-40 Threaded Insert Top Mount Opening | 2 | Female | 0.1 " | 2.54 mm | -40 C | 105 ░C | 0.25 Ám | 10 Áin |
