C1570AA Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

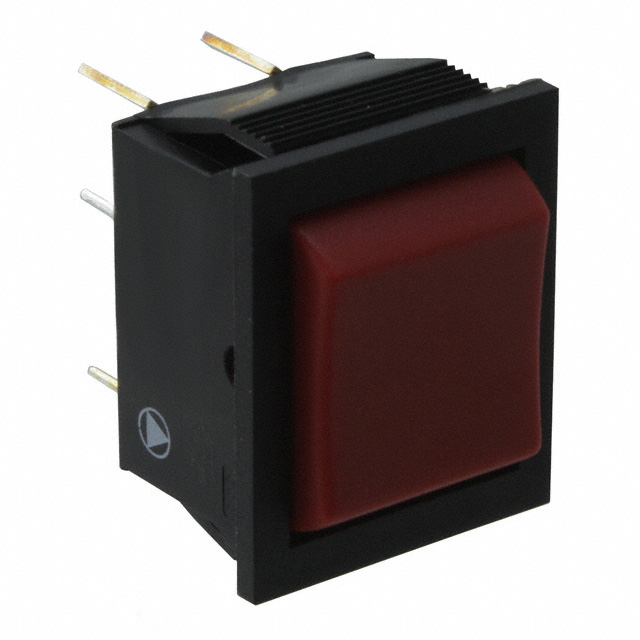

SWITCH ROCKER DPDT 16A 250V
| Part | Current Rating (Amps) | Mounting Type | Voltage Rating - AC | Termination Style | Actuator Type | Voltage Rating - DC | Actuator Marking | Switch Function | Color - Actuator/Cap | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Circuit | Approval Agency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 10 A 16 A 16 A | Panel Mount Snap-In | 250 V | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 24 V | - O = | On-Off-On | Black | 22.4 mm | 27.3 mm | DPDT | CSA UL | |
 BULGIN LIMITED | 10 A 16 A 16 A | Panel Mount Snap-In | 250 V | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 24 V | No Marking | On-Off-On | Red | 22.4 mm | 27.3 mm | DPDT | CSA UL | Antimicrobial |
 BULGIN LIMITED | 10 A 16 A 16 A | Panel Mount Snap-In | 250 V | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 24 V | No Marking | On-Off-On | Black | 22.4 mm | 27.3 mm | DPDT | CSA UL |
