842-021 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 21POS 0.100

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Read Out	Contact Finish	Number of Rows	Card Type	Contact Material	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Gender	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

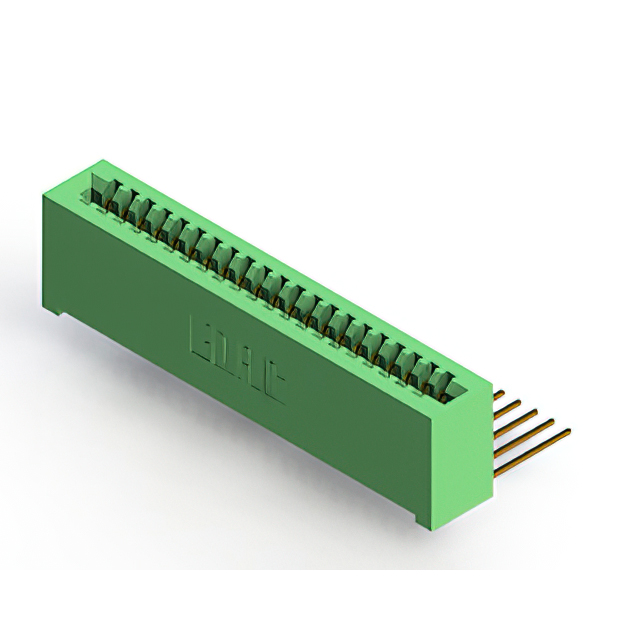

EDAC Inc. 842-021-559-101	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Female	Solder	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21
EDAC Inc. 842-021-523-102	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Female	Solder	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

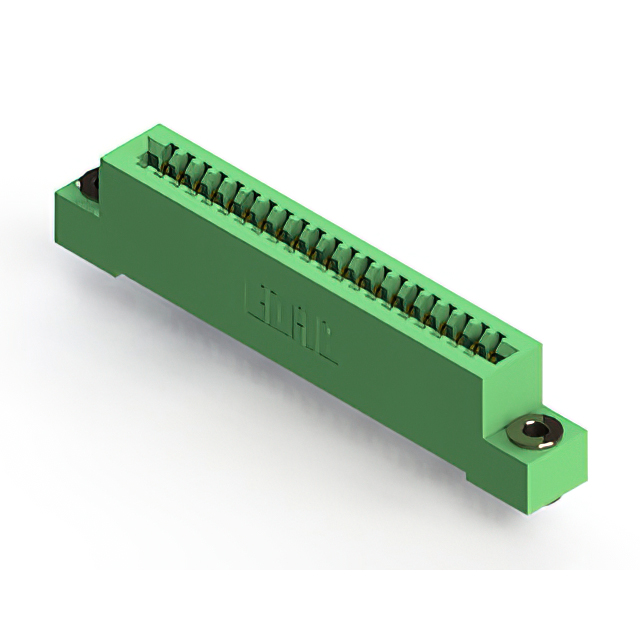

EDAC Inc. 842-021-521-103	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Female	Solder	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21	Floating Bobbin Flush Mount	2.95 mm	0.116 "

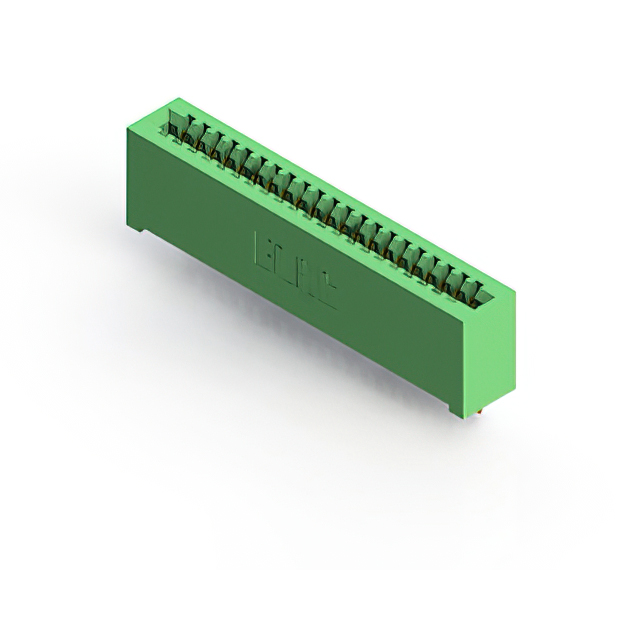

EDAC Inc. 842-021-541-101	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Female	Wire Wrap	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21

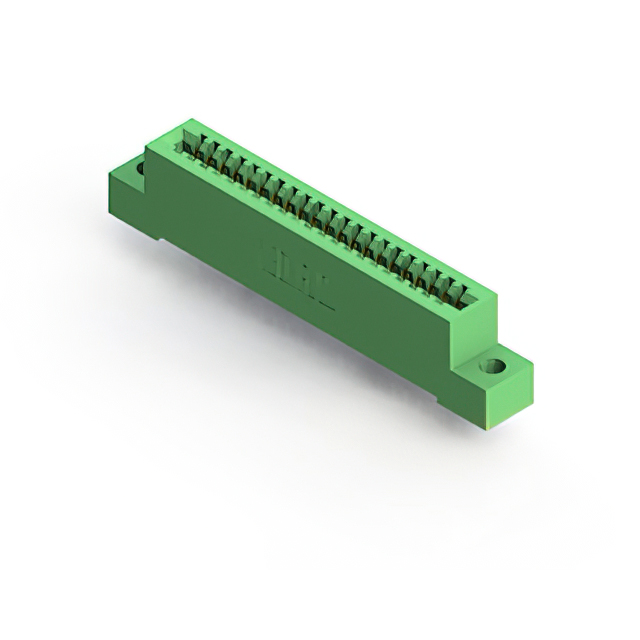

EDAC Inc. 842-021-544-104	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Female	Wire Wrap	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "

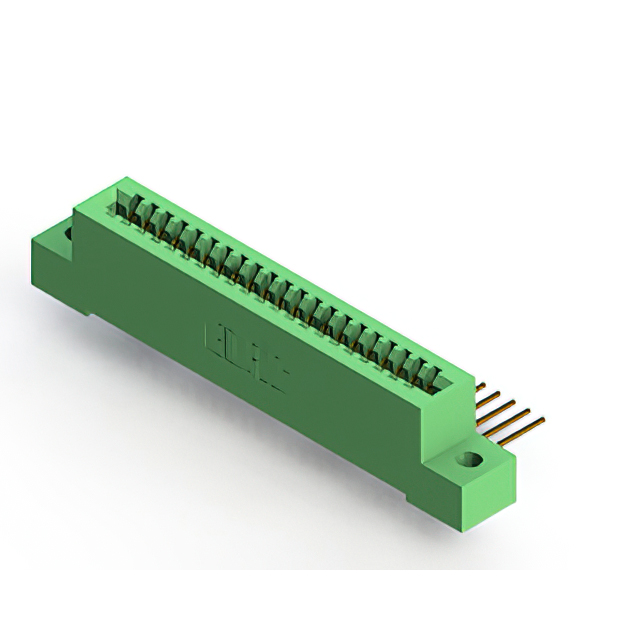

EDAC Inc. 842-021-559-102	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Female	Solder	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

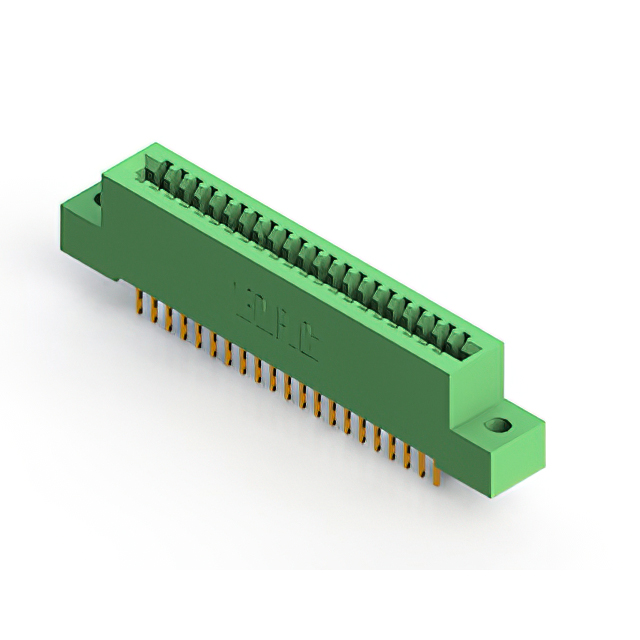

EDAC Inc. 842-021-558-102	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Female	Solder	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 842-021-520-112	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Female	Solder	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "

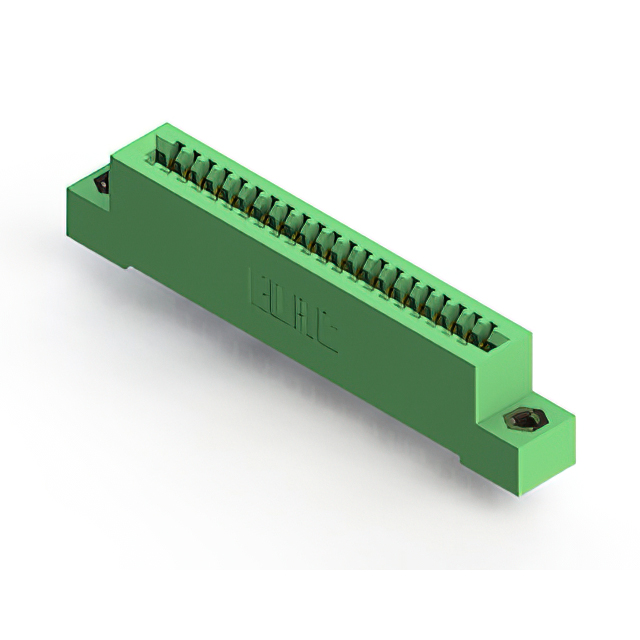

EDAC Inc. 842-021-500-108	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Female	Solder Eyelet(s)	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 842-021-540-107	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Single	Gold	1	Non Specified - Single Edge	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Female	Wire Wrap	0.25 Ám	10 Áin	Green	21	125 °C	-40 C	21	Flush Mount M3 Threaded Insert Top Opening
