BL300 Series
Manufacturer: GCT
Beta
⌘K
WIRE TRAP PUSH IN, SMT, 2.40MM P
| Part | Current Rating (Amps) | Voltage Rating | Housing Material | Mounting Type | Number of Positions | Pitch | Pitch | Housing Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Connector Type | Termination | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

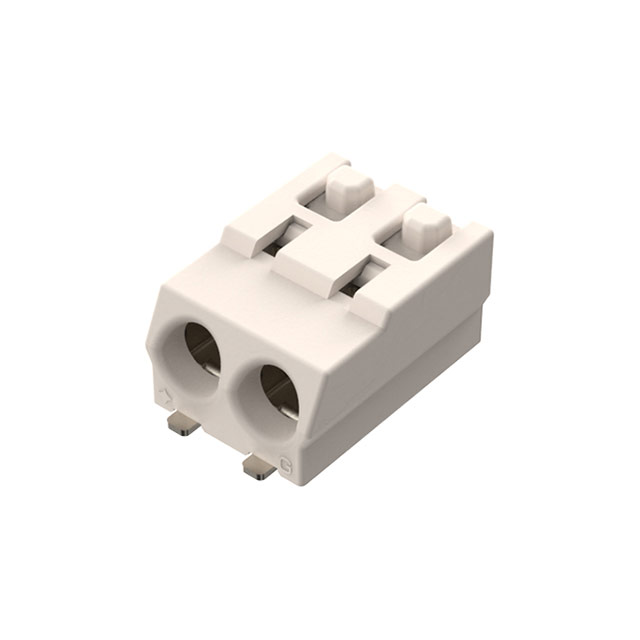

 GCT | 4 A | 300 VDC | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 2 | 0.094 in | 2.4 mm | Cream | Copper Alloy | 105 ░C | -25 °C | Tin | 24 AWG | 22 AWG | Receptacle Poke-In Wire | Solder | Board to Cable/Wire |

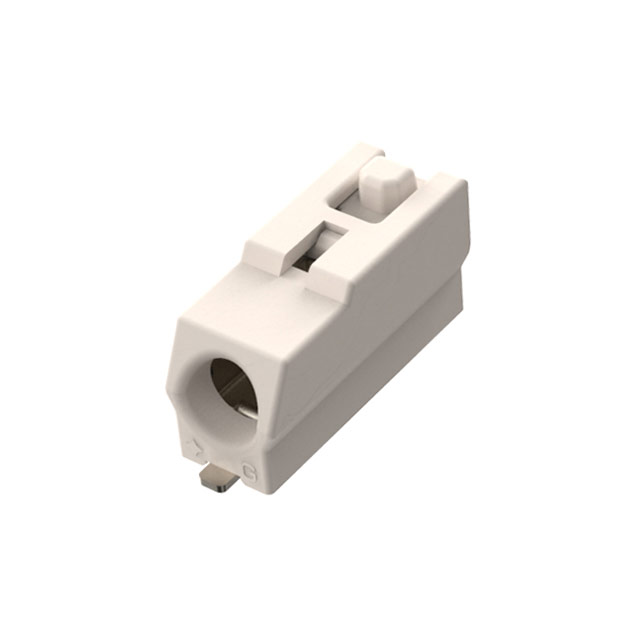

 GCT | 4 A | 300 VDC | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 1 | Cream | Copper Alloy | 105 ░C | -25 °C | Tin | 24 AWG | 22 AWG | Receptacle Poke-In Wire | Solder | Board to Cable/Wire | ||

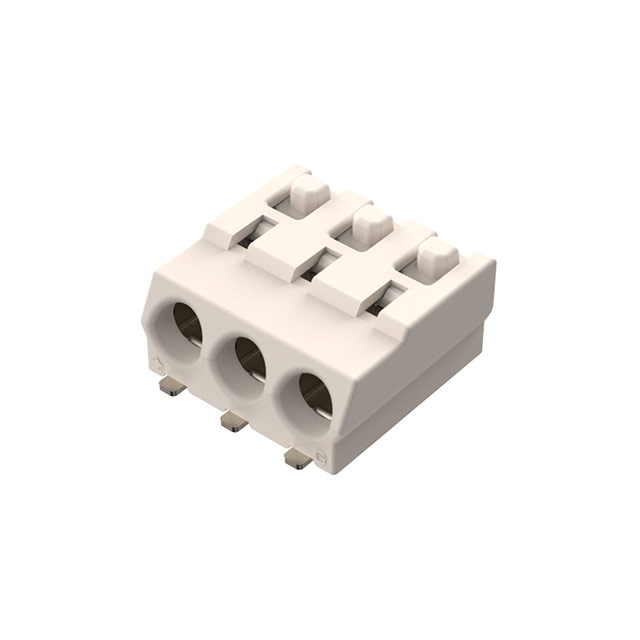

 GCT | 4 A | 300 VDC | Liquid Crystal Polymer (LCP) | Right Angle Surface Mount | 0.094 in | 2.4 mm | Cream | Copper Alloy | 105 ░C | -25 °C | Tin | 24 AWG | 22 AWG | Receptacle Poke-In Wire | Solder | Board to Cable/Wire |
