HLW4R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

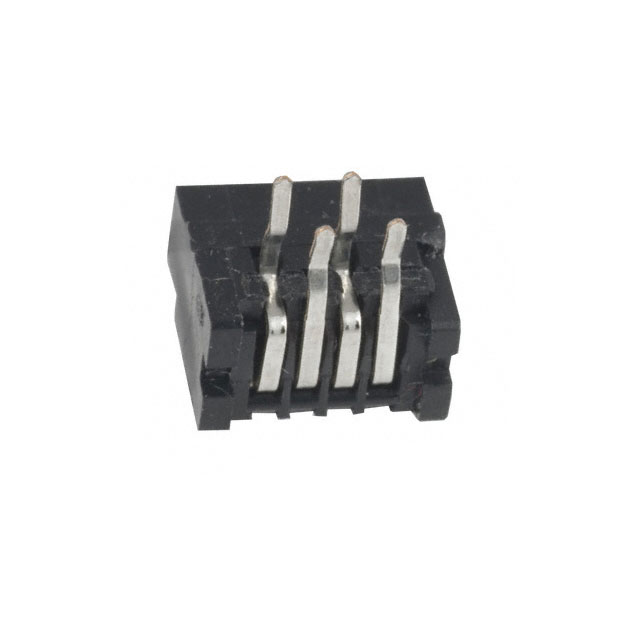

CONN FFC FPC TOP 4POS 1MM R/A
| Part | Voltage Rating | Actuator Color | Number of Positions | Housing Material | Cable End Type | Contact Material | Mating Cycles | Pitch [x] | Pitch [x] | Housing Color | Contact Finish | FFC, FCB Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Material Flammability Rating | Termination | Height Above Board | Height Above Board | Connector/Contact Type | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 100 V | Black | 4 | Polybutylene Terephthalate (PBT) Glass Filled | Tapered | Phosphor Bronze | 30 | 0.039 in | 1 mm | Black | Tin | 0.3 mm | 85 °C | -55 °C | Through Hole Right Angle | UL94 V-0 | Solder | 0.154 in | 3.9 mm | Contacts Top | FFC FPC |
