F614T Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

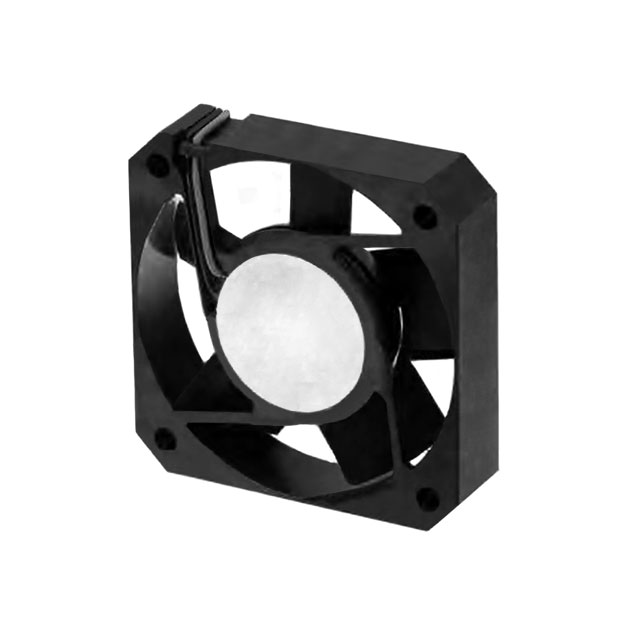

FAN AXIAL 62X14.5MM 5VDC WIRE
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Static Pressure | Static Pressure | RPM | Approval Agency | Weight [custom] | Weight [custom] | Fan Type | Air Flow | Air Flow | Termination | Bearing Type | Voltage - Rated | Width [y] | Noise | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT) | 100 mA | Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT) | 5.5 V | 4.5 V | 19.9 Pa | 0.08 in H2O | 2900 RPM | CE cUL TUV UL | 0.088 lb | 39.92 g | Tubeaxial | 12.7 CFM | 0.36 m³/min | 2 Wire Leads | Sleeve | 5 V | 14.5 mm | 23 dB(A) | 62 mm | 62 mm |
