77001 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

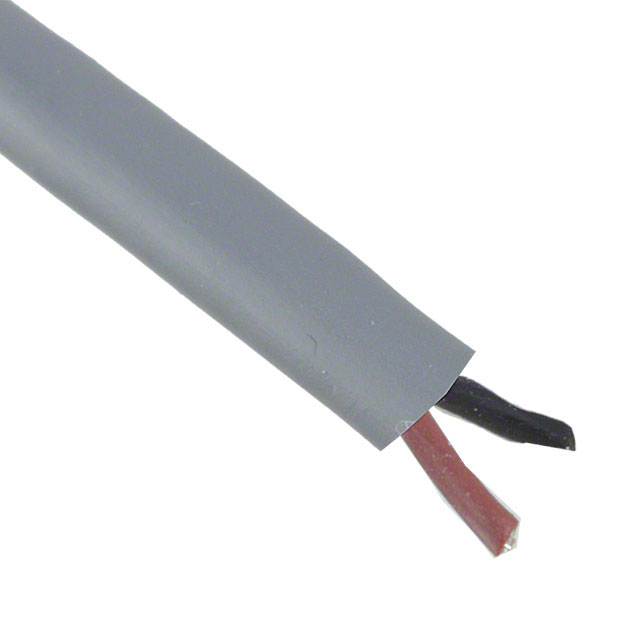

CABLE 2COND 24AWG SLATE 1000'
| Part | Ratings | Number of Conductors | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Cable Type | Features | Wire Gauge | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Length | Length | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | ISO 10993 | 2 | Polyphenylene Ether Modified (mPPE) | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | Biological Compatibility | 24 AWG | 0.156 in | 3.96 mm | 304.8 m | 1000 ft | Copper Tinned | -50 °C | 105 ░C | 7 | 32 AWG | Slate | 600 V | ||
ALPHA WIRE | ISO 10993 | 2 | Polyphenylene Ether Modified (mPPE) | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | Biological Compatibility | 24 AWG | 0.156 in | 3.96 mm | Copper Tinned | -50 °C | 105 ░C | 7 | 32 AWG | Slate | 600 V | 100 ft | 30.5 m |
