414 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

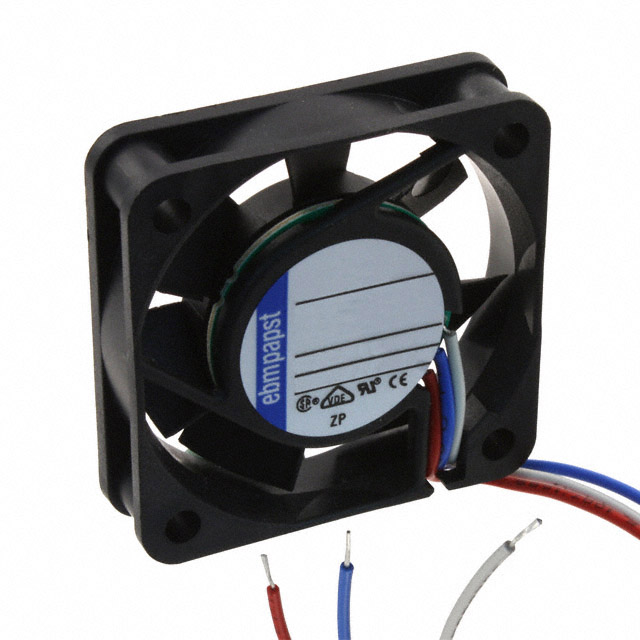

FAN AXIAL 40X10MM 24VDC WIRE
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Noise | Bearing Type | Approval Agency | Power (Watts) | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Width [y] | Termination | Features | Size / Dimension [x] | Size / Dimension [z] | Weight [custom] | Weight [custom] | RPM | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 28 V | 20 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 22.1 dB(A) | Sintec | CSA UL VDE | 0.8 W | Tubeaxial | -20 ░C | 70 °C | 0.132 mł/min | 4.7 CFM | 10 mm | 3 Wire Leads | Speed Sensor (Tach) | 40 mm | 40 mm | 17.24 g | 0.038 lb | 5400 RPM | 24 VDC |
