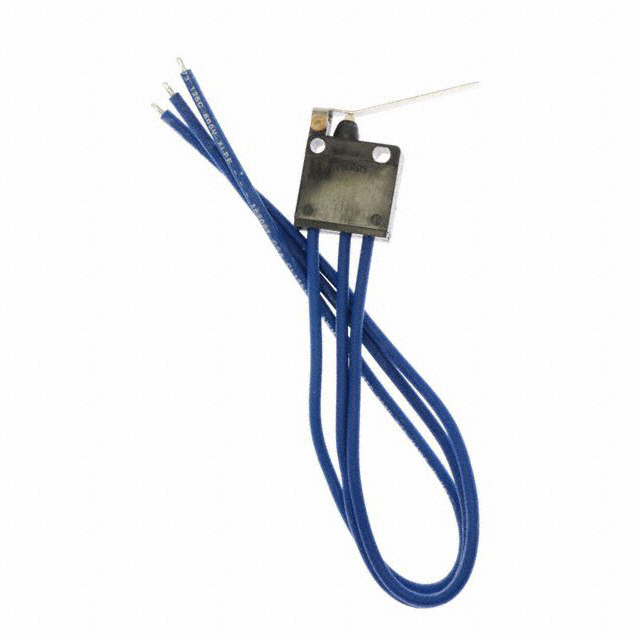

E72-40H Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 125V
| Part | Current Rating (Amps) | Switch Function | Operating Force | Termination Style | Mounting Type | Pretravel | Pretravel | Operating Position | Operating Position | Operating Temperature [Max] | Operating Temperature [Min] | Differential Travel | Differential Travel | Electrical Life | Voltage Rating - AC | Overtravel [custom] | Overtravel [custom] | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 10 A | On-Mom | 67 gf | Wire Leads | Chassis Mount | 0.275 in | 7 mm | 0.595 in | 15.13 mm | 85 °C | -40 C | 0.025 in | 0.6 mm | 6000 Cycles | 125 V | 0.1 " | 2.54 mm | Lever Straight | SPDT |
