PREC038 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 76POS 2.54MM

Part	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Contact Material	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height	Insulation Height	Style	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Mounting Type	Shrouding	Insulation Color	Termination	Overall Contact Length	Overall Contact Length	Contact Shape	Number of Positions	Number of Positions Loaded	Insulation Material	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows

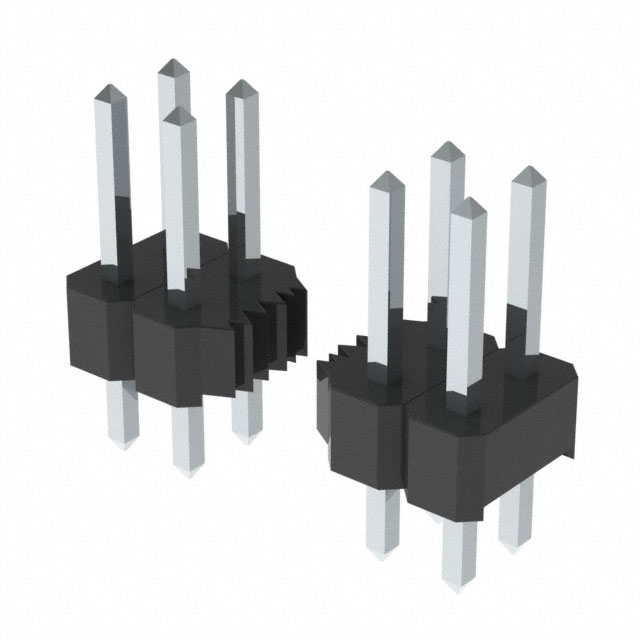

Sullins Connector Solutions PREC038DAAN-RC	Push-Pull	Male Pin	-40 C	105 ░C	0.1 in	2.54 mm	UL94 V-0	2	3.05 mm	0.12 in	Brass	3 A	0.1 "	2.54 mm	Header Breakaway	0.098 "	2.5 mm	Board to Board Cable	0.23 in	5.84 mm	Tin	Through Hole	Unshrouded	Black	Solder	0.448 in	11.39 mm	Square	76	All	Polybutylene Terephthalate (PBT)

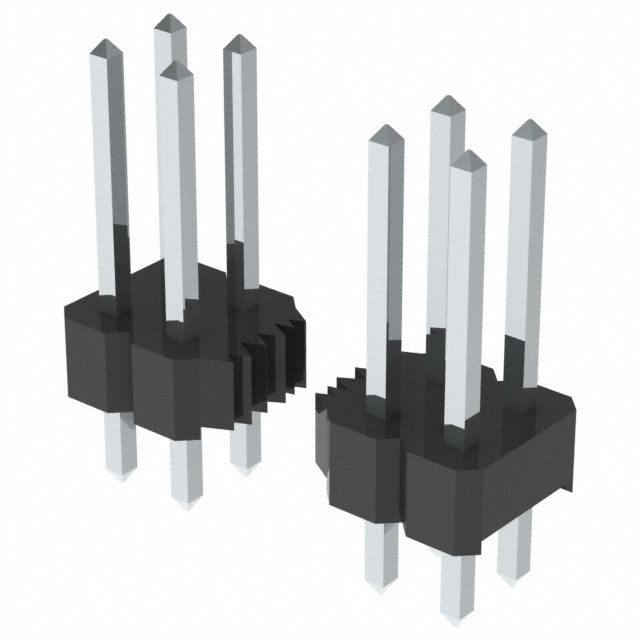

Sullins Connector Solutions PREC038DFAN-RC	Push-Pull	Male Pin	-40 C	105 ░C	0.1 in	2.54 mm	UL94 V-0	2	3.05 mm	0.12 in	Brass	3 A	0.1 "	2.54 mm	Header Breakaway	0.098 "	2.5 mm	Board to Board Cable	0.318 in	8.08 mm	Tin	Through Hole	Unshrouded	Black	Solder			Square	76	All	Polybutylene Terephthalate (PBT)	13.63 mm	0.537 in

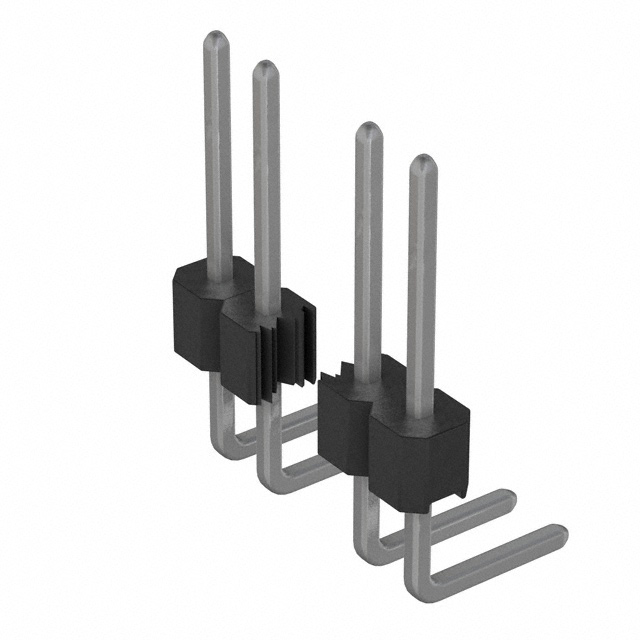

Sullins Connector Solutions PREC038SBAN-M71RC	Push-Pull	Male Pin	-40 C	105 ░C			UL94 V-0		3.05 mm	0.12 in	Brass	3 A	0.1 "	2.54 mm	Header Breakaway	0.098 "	2.5 mm	Board to Board Cable	0.23 in	5.84 mm	Tin	Right Angle Through Hole	Unshrouded	Black	Solder			Square	38	All	Polybutylene Terephthalate (PBT)			1

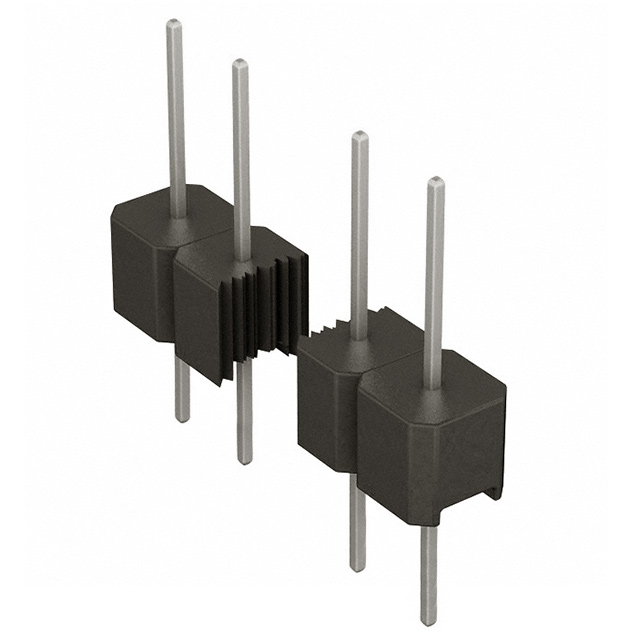

Sullins Connector Solutions PREC038SACN-RC	Push-Pull	Male Pin	-40 C	105 ░C			UL94 V-0		8.13 mm	0.32 in	Brass	3 A	0.1 "	2.54 mm	Header Breakaway	0.098 "	2.5 mm	Board to Board Cable	0.23 in	5.84 mm	Tin	Through Hole	Unshrouded	Black	Solder			Square	38	All	Polybutylene Terephthalate (PBT)	16.47 mm	0.648 in	1
