0926-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

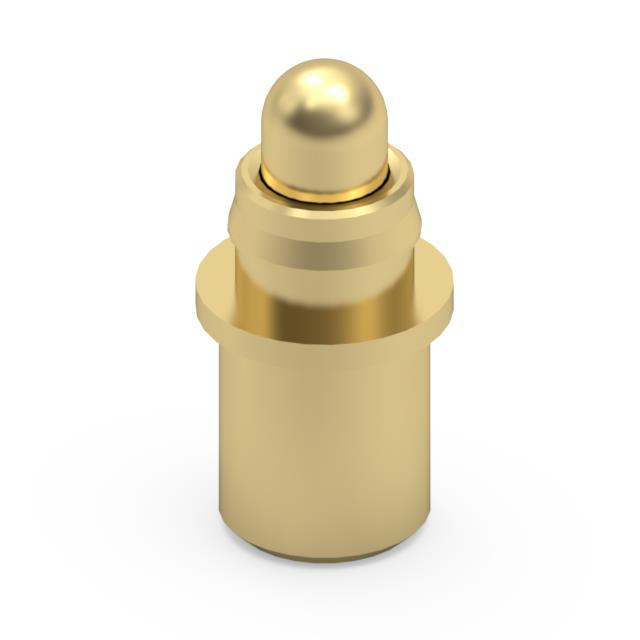

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height | Maximum Working Height | Contact Type | Minimum Working Height | Minimum Working Height | Operating Force - Initial | Current Rating (Amps) | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Recommended Working Height | Recommended Working Height | Operating Force - Mid Compression | Contact Material | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.31 mm | 0.091 in | Sleeve & Plunger (Pogo Pins) | 1.32 mm | 0.052 " | 15 gf | 6.4 A | 1000000 | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | 0.085 in | 2.16 mm | 1.81 mm | 0.071 in | 60 gf | Brass Alloy | Through Hole | Gold |
