342A124 Series

Catalog

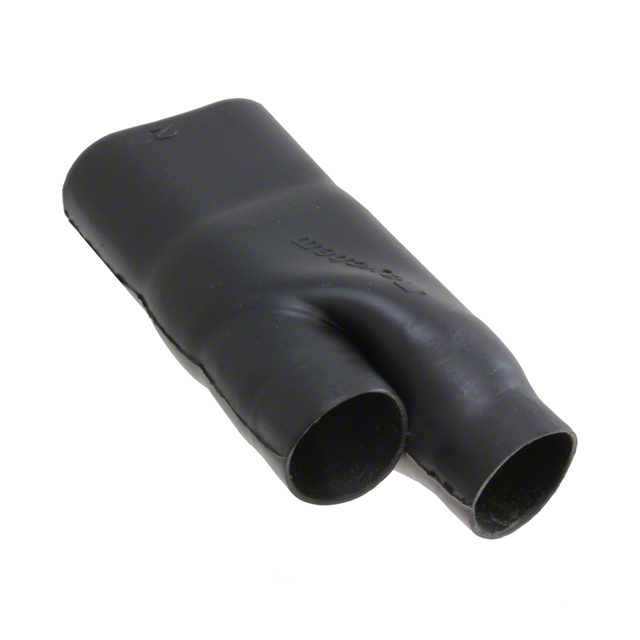

HEATSHRNK BOOT BRKOUT 45DEG SZ24

Part	Material	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Shell Size - Insert	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Color	Total Length Recovered [x]	Total Length Recovered [x]	Small Recovered Length	Small Recovered Length [x]	Type	Large Recovered Length	Large Recovered Length	Features
TE Connectivity Raychem Cable Protection 342A124-3-0	Polyolefin (PO) Semi-Rigid	6.1 mm	0.24 "	24	1.06 in	26.92 mm	0.52 in	13.21 mm	0.488 in	12.4 mm	Black	3.539 in	89.89 mm	42.7 mm	1.681 in	Boot Transition - Side Breakout 45°	1.661 in	42.19 mm
TE Connectivity Raychem Cable Protection 342A124-12-0	Fluoroelastomer (FKM) Flexible	6.1 mm	0.24 "	24	1.06 in	26.92 mm	0.52 in	13.21 mm	0.488 in	12.4 mm	Black	3.539 in	89.89 mm	42.7 mm	1.681 in	Boot Transition - Side Breakout 45°	1.661 in	42.19 mm
TE Connectivity Raychem Cable Protection 342A124-25/86-0	Elastomer Semi-Rigid	6.1 mm	0.24 "	24	1.06 in	26.92 mm	0.52 in	13.21 mm	0.488 in	12.4 mm	Black	3.539 in	89.89 mm	42.7 mm	1.681 in	Boot Transition - Side Breakout 45°	1.661 in	42.19 mm	Adhesive Coating Fluid Resistant
