C317C Series

Manufacturer: KEMET

Catalog

Catalog

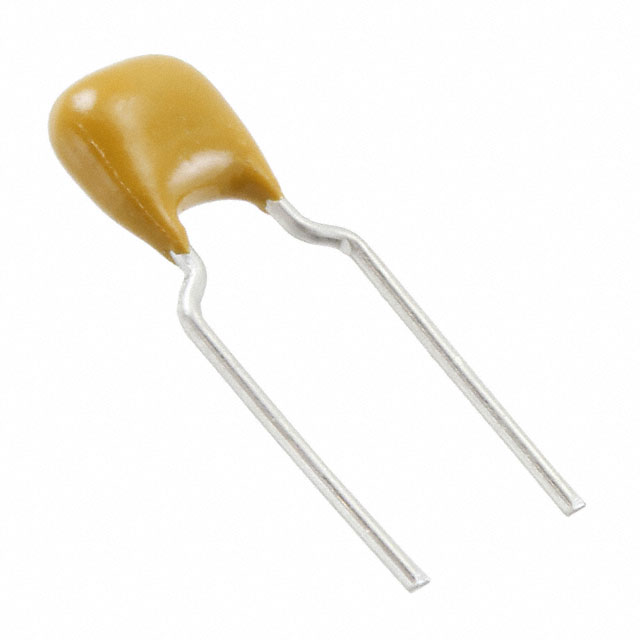

CAP CER 5600PF 250V C0G/NP0 RAD

...

Part	Features	Tolerance	Lead Spacing	Lead Spacing	Applications	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Capacitance	Lead Style	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C317C562FAG5TA	Low ESL	1 %	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	250 V	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	0.0056 µF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C302G1G5TA	Low ESL	2 %	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	100 V	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	0.003 µF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C121J3G5TA7301	Low ESL	5 %	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	25 VDC	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	120 pF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C470GAG5TA	Low ESL	2 %	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	250 V	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	47 pF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C432FAG5TA	Low ESL	1 %	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	250 V	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	4300 pF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C752JAG5TA7301	Low ESL	5 %	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	250 V	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	7500 pF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C182G3G5TA7301	Low ESL	2 %	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	25 VDC	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	1800 pF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C472FAG5TA7301	Low ESL	1 %	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	250 V	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	0.0047 µF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C519BAG5TA	Low ESL	0.1 pF	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	250 V	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	5.1 pF	Formed Leads	Through Hole	5.08 mm	0.2 in
KEMET C317C109DAG5TA	Low ESL	0.5 pF	0.2 in	5.08 mm	General Purpose	C0G NP0	-55 C	125 °C	250 V	3.81 mm	0.1 in	0.15 "	2.54 mm	Radial	1 pF	Formed Leads	Through Hole	5.08 mm	0.2 in
