075102 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 64POS 2.54MM

Part	Contact Finish - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating [x]	Connector Type	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Applications	Contact Shape	Material Flammability Rating	Contact Material	Number of Positions	Termination	Overall Contact Length	Overall Contact Length	Shrouding	Mounting Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Style	Contact Finish - Mating

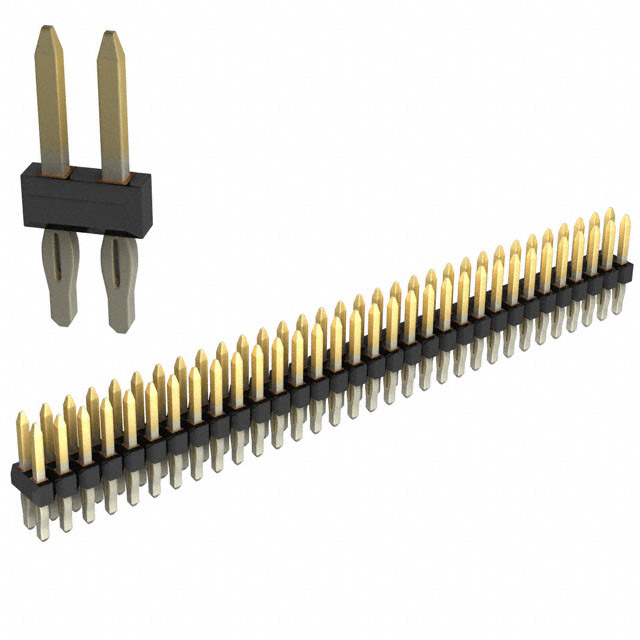

Molex 0751020070	Tin	2	15 µin	0.38 µm	2.54 µm	100 µin	6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	64	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable	Gold

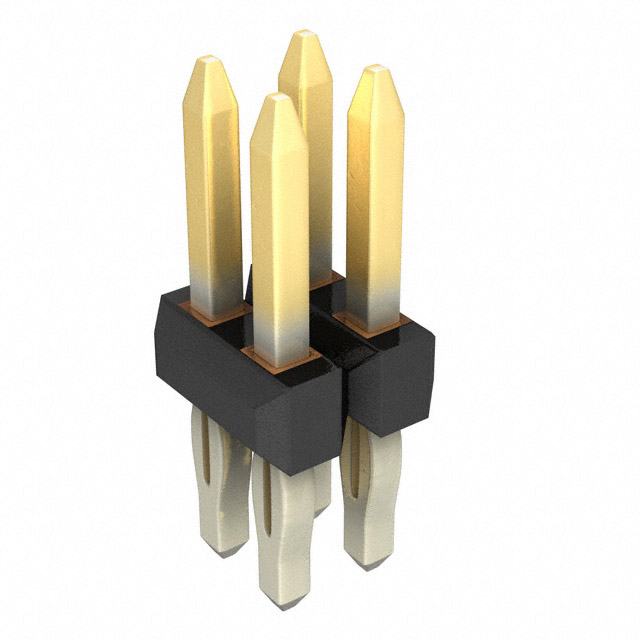

Molex 0751020040	Tin	2	15 µin	0.38 µm	2.54 µm	100 µin	6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	4	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable	Gold
Molex 0751020054	Tin	2	15 µin	0.38 µm	2.54 µm	100 µin	6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy		Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable	Gold
Molex 0751020105	Tin	2	200 µin	5.08 µm			6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	56	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable
Molex 0751020061	Tin	2	15 µin	0.38 µm	2.54 µm	100 µin	6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	46	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable	Gold
Molex 0751020101	Tin	2	200 µin	5.08 µm			6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	48	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable
Molex 0751020086	Tin	2	200 µin	5.08 µm			6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	18	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable
Molex 0751020109	Tin	2	200 µin	5.08 µm			6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	64	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable
Molex 0751020098	Tin	2	200 µin	5.08 µm			6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	42	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable
Molex 0751020115	Tin	2	200 µin	5.08 µm			6.1 mm	0.24 in	Breakaway Header	Male Pin	0.1 in	2.54 mm	0.09 in	2.29 mm	2.54 mm	0.1 in	Black	Automotive General Purpose Lighting Medical Telecommunications	Square	UL94 V-0	Copper Alloy	76	Press-Fit Solder	0.517 in	13.13 mm	Unshrouded	Through Hole	All	0.187 in	4.75 mm	Push-Pull	Board to Board Cable
