630-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

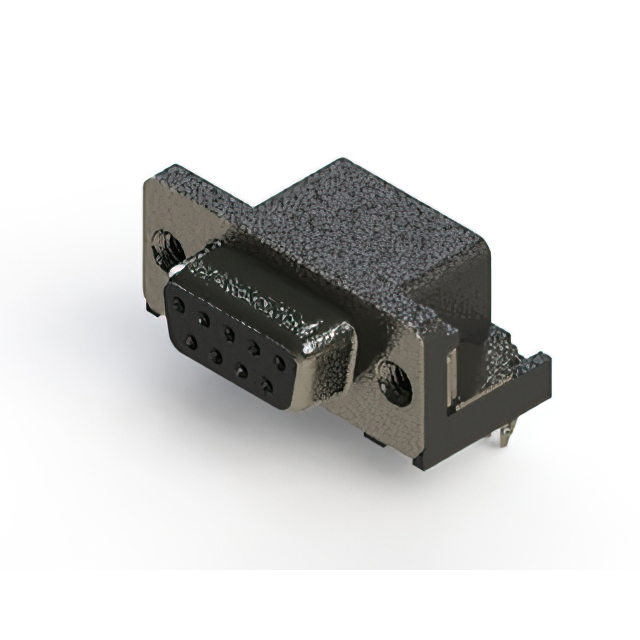

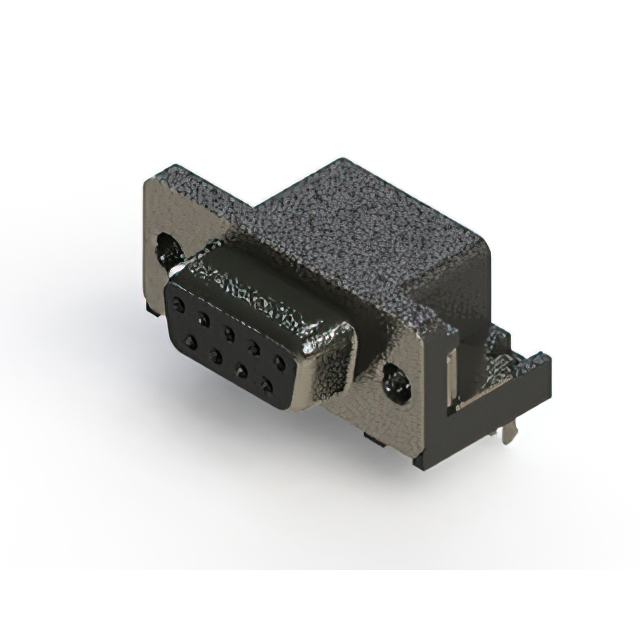

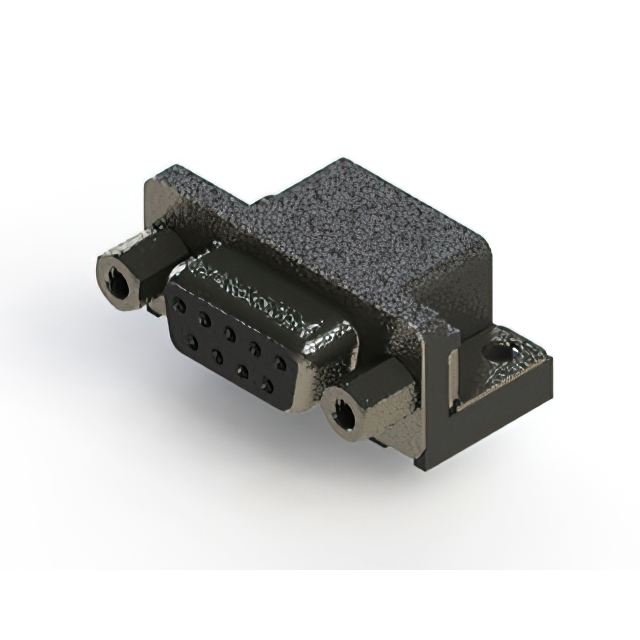

D-SUB RIGHT ANGLE CONNECTOR ROHS COMPLIANT: YES
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Number of Positions | Shell Material, Finish | Connector Type | Termination | Current Rating (Amps) | Features | Flange Feature | Mounting Type | Contact Type | Connector Style | Backset Spacing | Backset Spacing | Material Flammability Rating | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | Housing/Shell | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | 4-40 |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Mounting Brackets Shielded | Housing/Shell (M3) | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | Housing/Shell (M3) | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | Housing/Shell (Unthreaded) | Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | Housing/Shell | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 30 Áin | 0.76 Ám | Gold | 1 | DE E | 4-40 |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Copper Alloy | 9 | Nickel Plated Steel | Receptacle Female Sockets | Solder | 3 A | Board Lock Mounting Brackets Shielded | Housing/Shell (M3) | Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | UL94 V-0 | 2 | 15 µin | 0.38 µm | Gold | 1 | DE E |
