830-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN HEADER VERT 18POS 2MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Number of Positions Loaded	Termination	Contact Type	Fastening Type	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Shrouding	Number of Rows	Contact Finish - Mating	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Shape	Material	Contact Finish	Number of Contacts	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]	Color
Mill-Max Manufacturing Corp. 830-10-018-10-001000	10 Áin	0.25 çm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	All	Solder	Male Pin	Push-Pull	0.079 "	2 mm	12.07 mm	0.475 in	Gold	Unshrouded	1	Gold	Through Hole	Header	0.25 µm	10 µin	Black	0.164 in	4.17 mm	18	0.154 in	3.91 mm	Circular
Mill-Max Manufacturing Corp. 830-10-021-10-001000	10 Áin	0.25 çm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	All	Solder	Male Pin	Push-Pull	0.079 "	2 mm	12.07 mm	0.475 in	Gold	Unshrouded	1	Gold	Through Hole	Header	0.25 µm	10 µin	Black	0.164 in	4.17 mm	21	0.154 in	3.91 mm	Circular

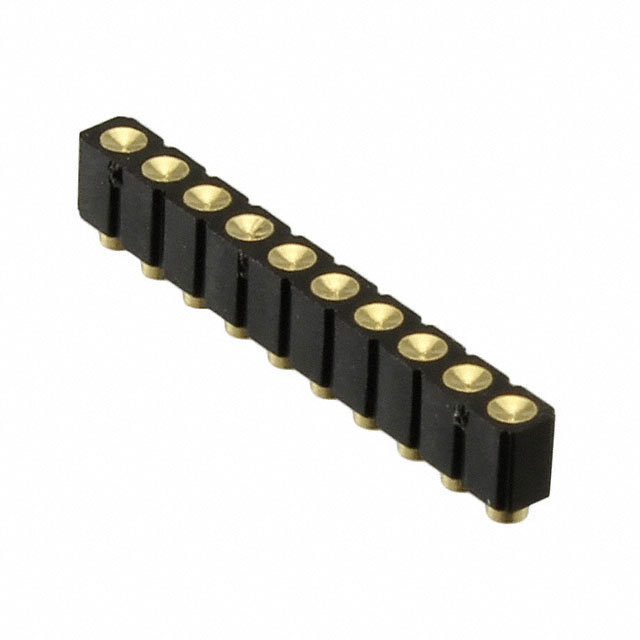

Mill-Max Manufacturing Corp. 830-10-010-30-004000															1		Through Hole	Mating Target										Brass Alloy	Gold	10	0.25 Ám	10 Áin	0.079 in	2 mm
Mill-Max Manufacturing Corp. 830-10-049-30-001000	10 Áin	0.25 çm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	All	Solder	Male Pin	Push-Pull	0.079 "	2 mm			Gold	Unshrouded	1	Gold	Surface Mount	Header	0.25 µm	10 µin	Black			49	0.142 in	3.61 mm	Circular

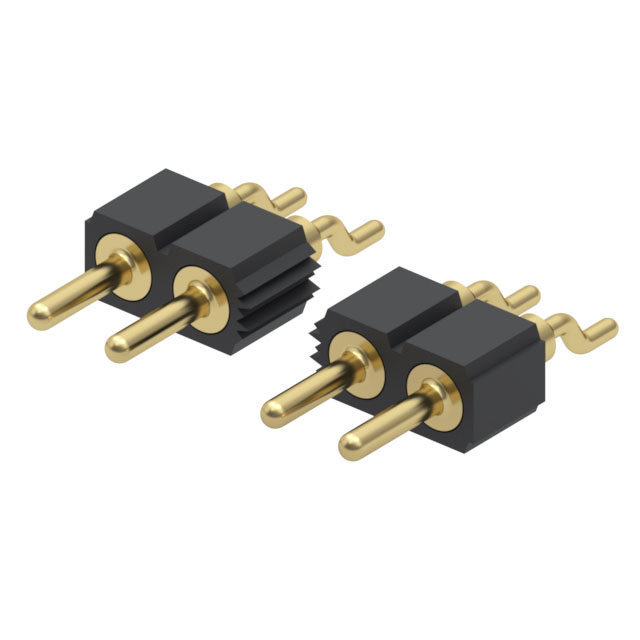

Mill-Max Manufacturing Corp. 830-10-010-40-028000	10 Áin	0.25 çm		Nylon 4/6 Polyamide (PA46)	All	Solder	Male Pin	Push-Pull	0.1 "	2.54 mm			Gold	Unshrouded	1	Gold	Right Angle Surface Mount	Header	0.25 µm	10 µin	Black			10	0.14 in	3.56 mm	Circular								0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 830-10-024-20-001000	10 Áin	0.25 çm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	All	Solder	Male Pin	Push-Pull	0.079 "	2 mm			Gold	Unshrouded	1	Gold	Right Angle Through Hole	Header	0.25 µm	10 µin	Black			24	0.142 in	3.61 mm	Circular										0.135 in	3.43 mm	2 mm	0.079 in
Mill-Max Manufacturing Corp. 830-10-025-10-005000						Solder	Solder Cup								1		Through Hole	Header						25					Gold		0.25 Ám	10 Áin	0.079 in	2 mm							Black

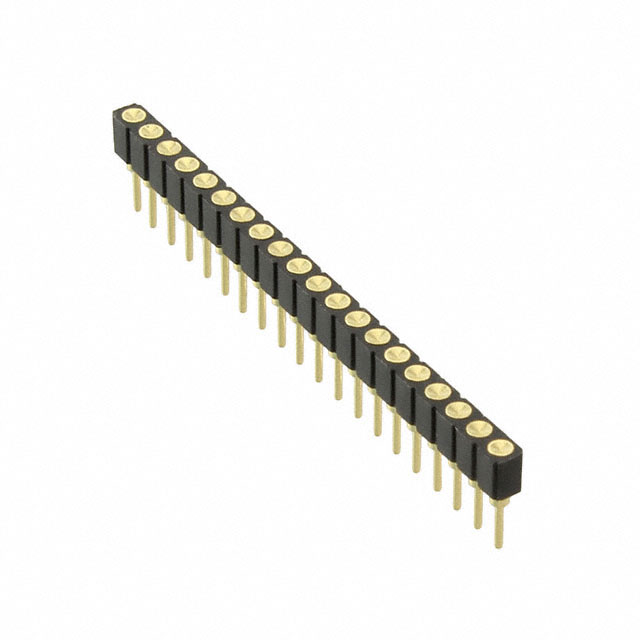

Mill-Max Manufacturing Corp. 830-10-020-10-004000															1		Through Hole	Mating Target										Brass Alloy	Gold	20	0.25 Ám	10 Áin	0.079 in	2 mm
Mill-Max Manufacturing Corp. 830-10-043-10-005000						Solder	Solder Cup								1		Through Hole	Header						43					Gold		0.25 Ám	10 Áin	0.079 in	2 mm							Black

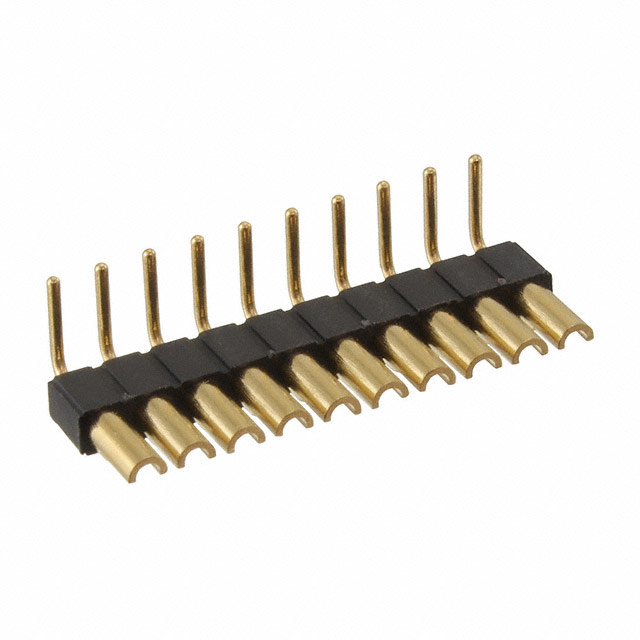

Mill-Max Manufacturing Corp. 830-10-010-20-005000						Solder	Solder Cup								1		Right Angle Through Hole	Header						10					Gold		0.25 Ám	10 Áin	0.079 in	2 mm							Black
