4427-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

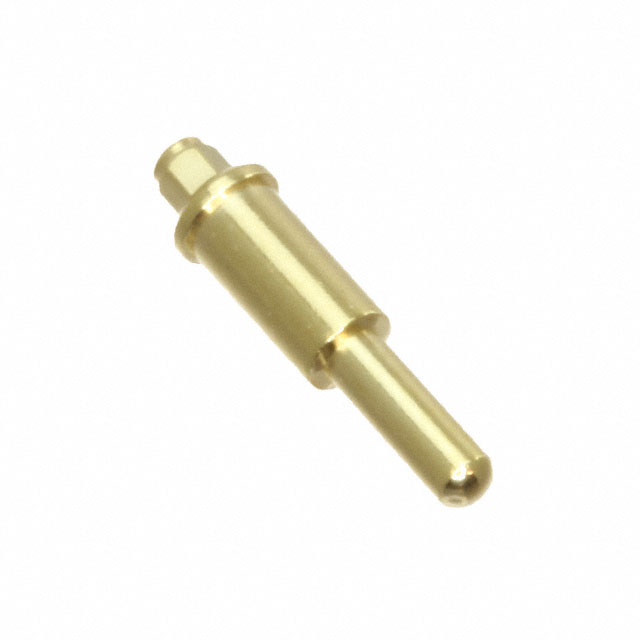

PRESS-FIT PCB PIN
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Style | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Length - Above Flange | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.112 " | 2.84 mm | Non-Insulated | 1.73 mm | 0.068 " | 0.456 in | 11.58 mm | Single End | Brass Alloy | 0.25 Ám | 10 Áin | PC Pin | 9.35 mm | 0.368 in | 0.062 in | 1.57 mm | Gold | 1.6 mm | 0.063 " | 1.47 mm | 0.058 in | Press-Fit | Through Hole |
