MPXV5010 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
SENSOR 1.45PSID 0.13" 4.7V 8SOP
| Part | Applications | Voltage - Supply [Min] | Voltage - Supply [Max] | Termination Style | Operating Pressure | Operating Pressure | Pressure Type | Supplier Device Package | Maximum Pressure | Maximum Pressure | Port Size | Port Size | Port Size | Port Style | Mounting Type | Features | Output Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

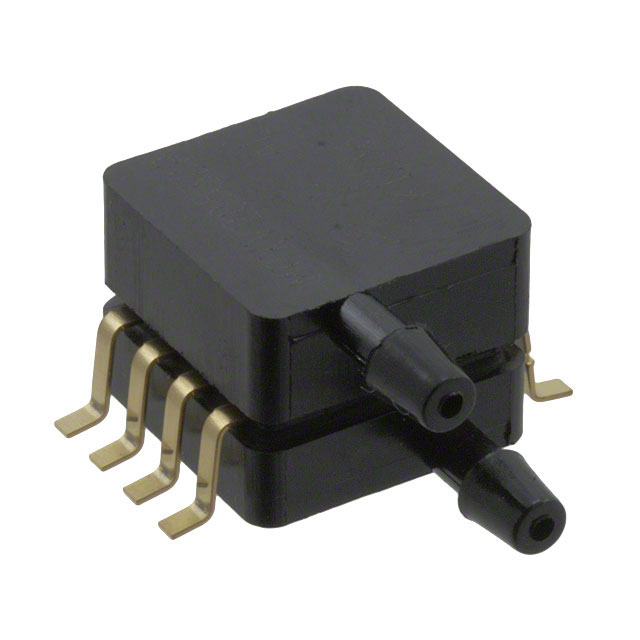

 Freescale Semiconductor - NXP | Board Mount | 4.75 V | 5.25 V | Gull Wing | 1.45 PSI | 10 kPa | Differential | 8-SOP | 40 kPa | 5.8 PSI | 3.3 mm | Dual Male Tube | 0.13 " | Barbed | Surface Mount | Temperature Compensated | Analog Voltage | 8-BSOP | 125 °C | -40 °C |

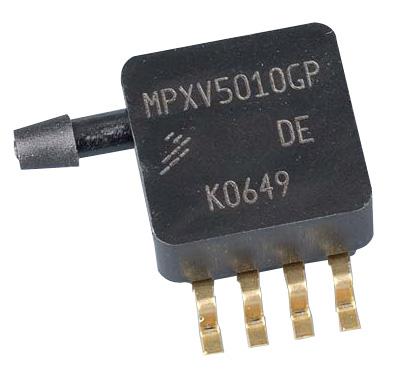

 Freescale Semiconductor - NXP | Board Mount | 4.75 V | 5.25 V | Gull Wing | 1.45 PSI | 10 kPa | Vented Gauge | 8-SOP | 40 kPa | 5.8 PSI | 3.17 mm | 0.13 " | Barbed | Surface Mount | Temperature Compensated | Analog Voltage | 8-SMD Gull Wing Side Port | 125 °C | -40 °C |
