85010CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

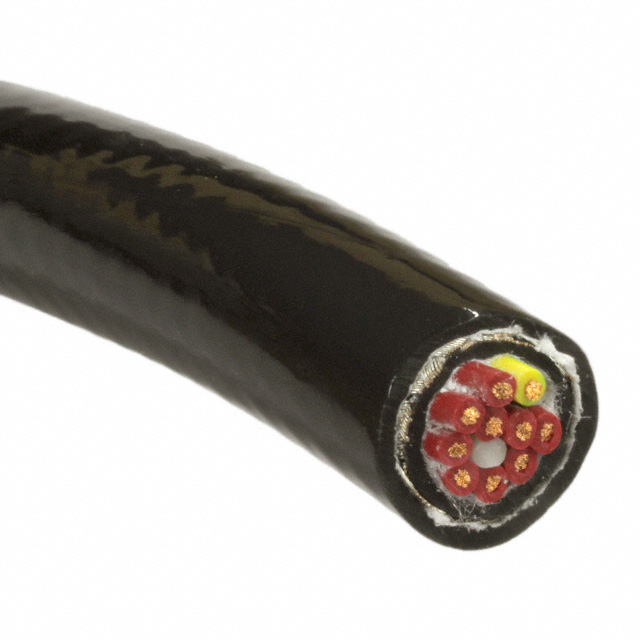

CABLE 10COND 20AWG BLACK SHLD
| Part | Shield Type | Jacket (Insulation) Material | Wire Gauge | Jacket Color | Length [x] | Length [x] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Shield Coverage | Voltage | Conductor Material | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Braid | Poly-Vinyl Chloride (PVC) | 20 AWG | Black | 500 ' | 152.4 m | Poly-Vinyl Chloride (PVC) | 0.545 in | 13.84 mm | Copper Tinned | 10 | 0.04 in | 1.016 mm | Multi-Conductor | 38 | 63 | 85 % | 600 V | Copper Bare | UL Style 2587 | ||
ALPHA WIRE | Braid | Poly-Vinyl Chloride (PVC) | 20 AWG | Black | Poly-Vinyl Chloride (PVC) | 0.545 in | 13.84 mm | Copper Tinned | 10 | 0.04 in | 1.016 mm | Multi-Conductor | 38 | 63 | 85 % | 600 V | Copper Bare | UL Style 2587 | 1000 ft | 304.8 m |
