VSKT250 Series

Catalog

SCR DBL HISCR 1200V 230A MAGNPAK

Part	Voltage - Off State	Current - On State (It (RMS)) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Mounting Type	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Number of SCRs, Diodes	Current - Hold (Ih) (Max) [Max]	Structure	Operating Temperature [Min]	Operating Temperature [Max]
Vishay General Semiconductor - Diodes Division VSKT250-12	1.2 kV	555 A	250 A	Chassis Mount	3-MAGN-A-PAK™	200 mA	2 SCRs	500 mA	Series Connection - All SCRs

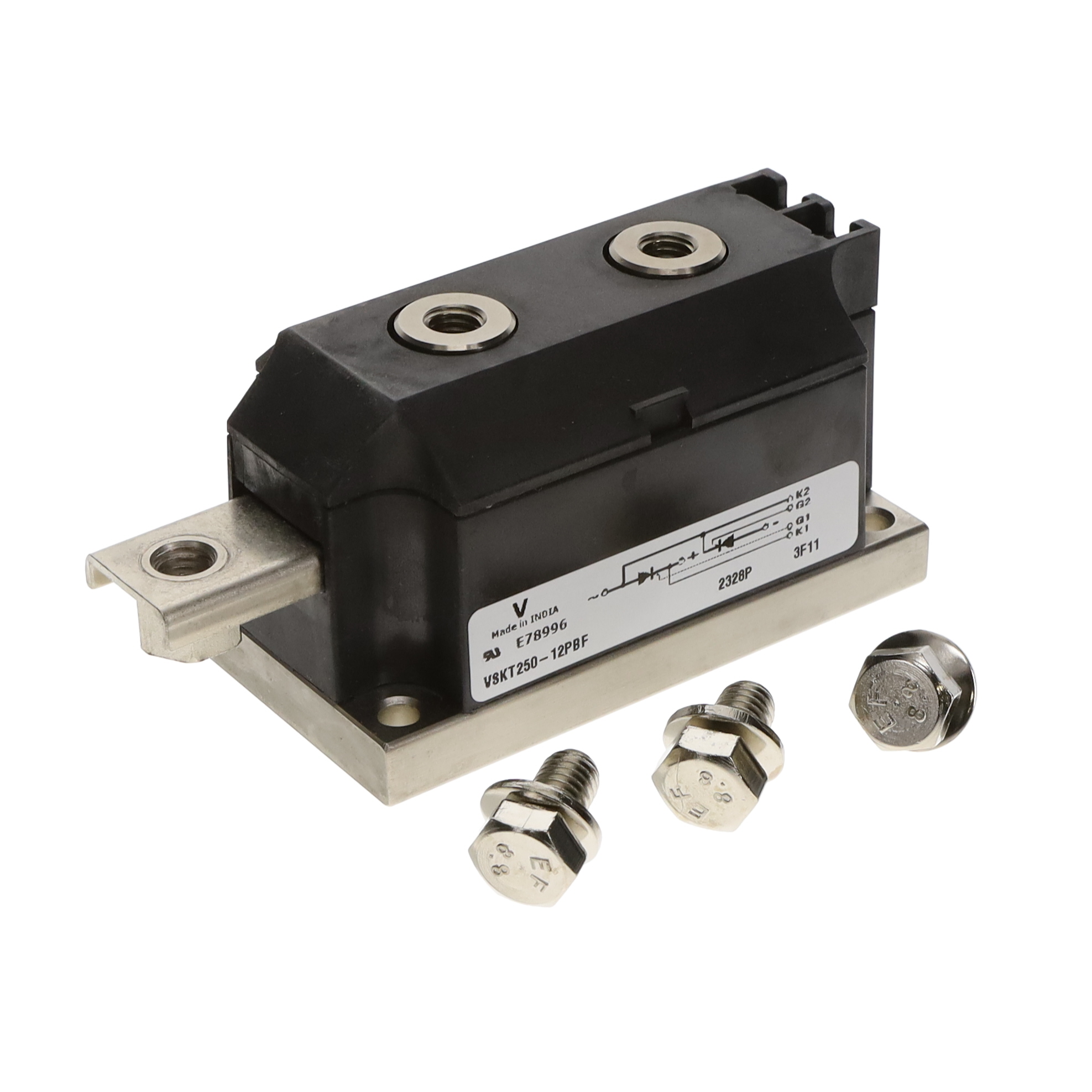

Vishay General Semiconductor - Diodes Division VS-VSKT250-12PBF	1.2 kV	555 A	250 A	Chassis Mount	MAGN-A-PAK	200 mA	2 SCRs	500 mA	Series Connection - All SCRs	-40 °C	130 °C
Vishay General Semiconductor - Diodes Division VS-VSKT250-08PBF	800 V	555 A	250 A	Chassis Mount	MAGN-A-PAK	200 mA	2 SCRs	500 mA	Series Connection - All SCRs	-40 °C	130 °C
Vishay General Semiconductor - Diodes Division VS-VSKT250-14PBF	1.4 kV	555 A	250 A	Chassis Mount	MAGN-A-PAK	200 mA	1 Diode	500 mA	Series Connection - SCR/Diode	-40 °C	150 °C
Vishay General Semiconductor - Diodes Division VS-VSKT250-18PBF	1.8 kV	555 A	250 A	Chassis Mount	MAGN-A-PAK	200 mA	2 SCRs	500 mA	Series Connection - All SCRs	-40 °C	130 °C
Vishay General Semiconductor - Diodes Division VS-VSKT250-16PBF	1.6 kV	555 A	250 A	Chassis Mount	MAGN-A-PAK	200 mA	1 Diode	500 mA	Series Connection - SCR/Diode	-40 °C	150 °C
Vishay General Semiconductor - Diodes Division VSKT250-14	1.4 kV	555 A	250 A	Chassis Mount	3-MAGN-A-PAK™	200 mA	2 SCRs	500 mA	Series Connection - All SCRs
