TMC2226 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

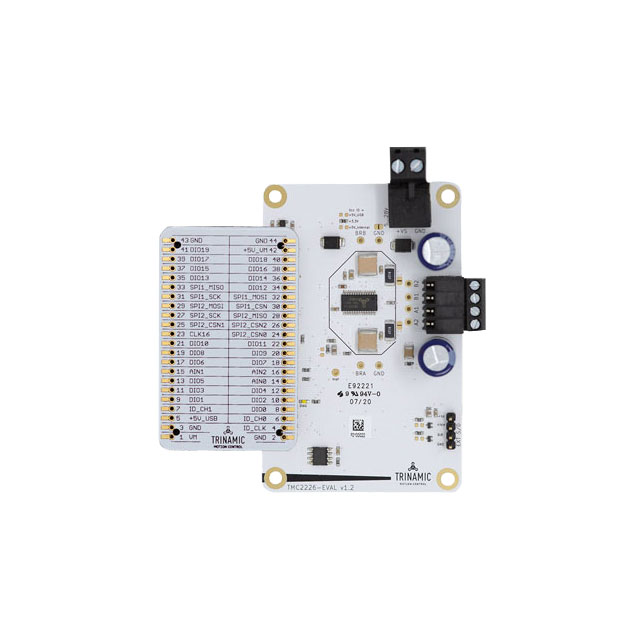

EVALUATION BOARD WITH TMC2226
| Part | Supplied Contents | Utilized IC / Part | Contents | Secondary Attributes | Primary Attributes | Type | Supplier Device Package | Applications | Current - Output | Function | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Voltage - Load [Max] | Voltage - Load [Min] | Mounting Type | Step Resolution [Min] | Step Resolution [Max] | Technology | Motor Type - Stepper | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Board(s) | TMC2226 | Board(s) | Graphical User Interface (GUI) | Motors (Stepper) | Power Management | ||||||||||||||||||

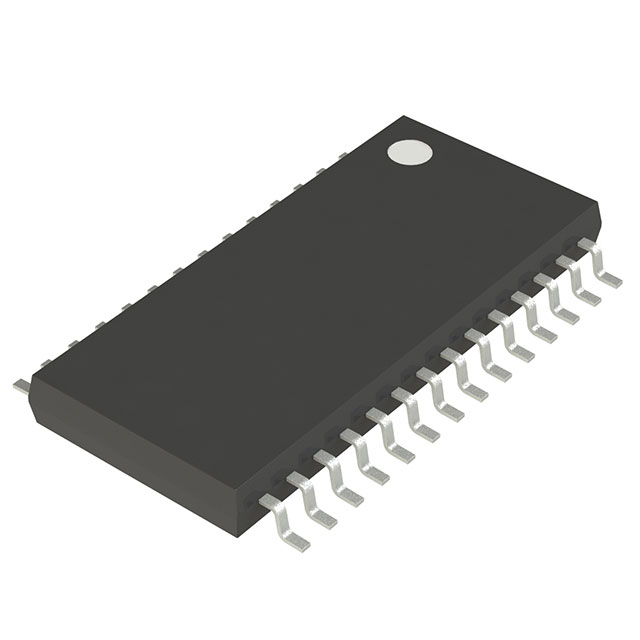

 Analog Devices Inc./Maxim Integrated | 28-HTSSOP | General Purpose | 2 A | Driver - Fully Integrated Control and Power Stage | Step/Direction UART | 28 V | 5 V | 28-TSSOP (0.173" 4.40mm Width) Exposed Pad | 29 V | 5 V | Surface Mount | 1 | 0.00390625 | |||||||||||
 Analog Devices Inc./Maxim Integrated | Board(s) | TMC2226 | Board(s) | Motors (Stepper) | Power Management | |||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 28-HTSSOP | General Purpose | 2 A | Driver - Fully Integrated Control and Power Stage | Step/Direction UART | 5 V | 3.3 V | 28-TSSOP (0.173" 4.40mm Width) Exposed Pad | 29 V | 4.75 V | Surface Mount | 1 | 0.00390625 | Power MOSFET | Bipolar | Step/Direction | -40 C | 125 °C |
