SKY13522 Series
Manufacturer: Skyworks Solutions Inc.
Beta
⌘K

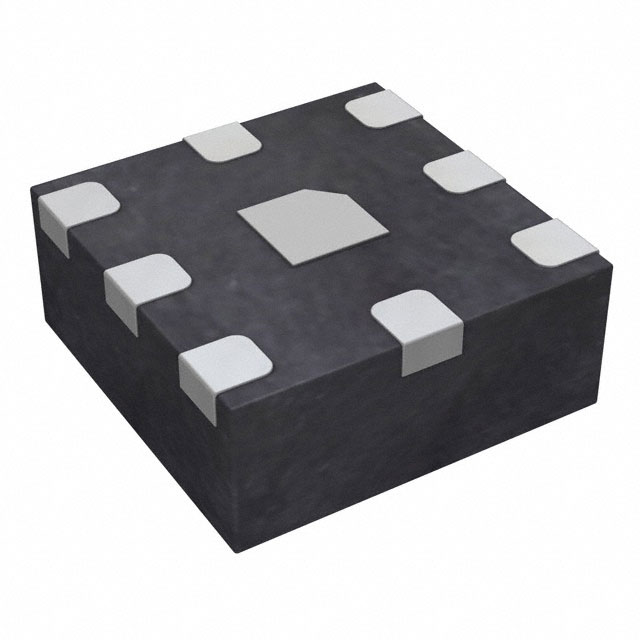

RF SWITCH SPDT 700MHZ TO 3GHZ 43DB 8-PIN QFN EP T/R
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Topology | Isolation | Insertion Loss | Supplier Device Package | Mounting Type | RF Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Test Frequency [Min] | Test Frequency [Max] | Package / Case | Frequency Range [Max] | Frequency Range [Min] | IIP3 | Impedance | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Skyworks Solutions Inc. | 90 °C | -30 ░C | Reflective | 46 dB | 0.7 dB | 8-QFN (1.1x1.1) | Surface Mount | CDMA GSM WCDMA | 2.5 V | 3.3 V | 2.3 GHz | 3.8 GHz | 8-XFQFN Exposed Pad | 6 GHz | 700 MHz | 57 dBm | 50 Ohms | SPDT |
