YB25WR Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 3A 125V
| Part | Electrical Life | Mechanical Life | Color - Actuator/Cap | Illumination Voltage (Nominal) | Switch Function | Ingress Protection | Features | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Actuator Marking | Voltage Rating - DC | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Mounting Type | Illumination Type, Color | Circuit | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | 5 VDC | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 3 A | 16 mm | 125 V | No Marking | 30 V | Button Rectangular | 50 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | Green/Red LED | DPDT | Illuminated Standard |

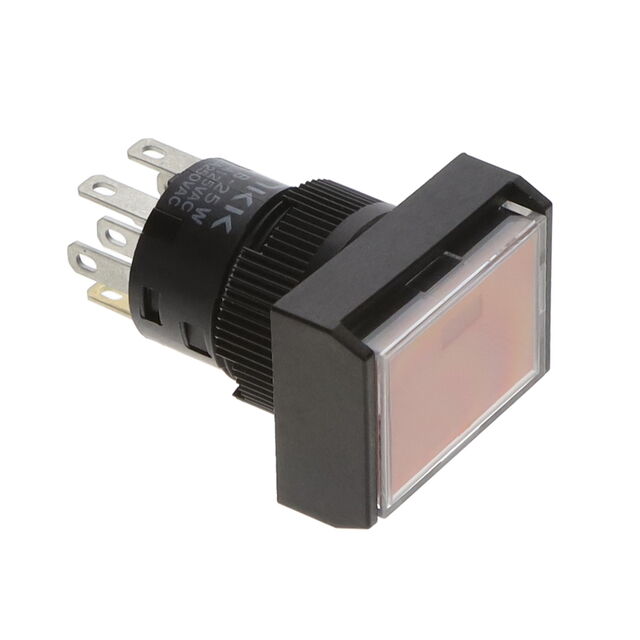

 NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | 5 VDC | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 0.4 VA | 16 mm | 28 V | No Marking | 28 V | Button Rectangular | 50 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | Amber LED | DPDT | Illuminated Standard |
NKK Switches | 100000 Cycles | 1000000 Cycles | Green | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 3 A | 16 mm | 125 V | No Marking | 30 V | Button Rectangular | 70 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | DPDT | Standard | ||
NKK Switches | 100000 Cycles | 1000000 Cycles | Red | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 3 A | 16 mm | 125 V | No Marking | 30 V | Button Rectangular | 70 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | DPDT | Standard | ||
 NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | 24 V | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 3 A | 16 mm | 125 V | No Marking | 30 V | Button Rectangular | 50 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | LED Red | DPDT | Illuminated Standard |
NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | 5 VDC | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 0.4 VA | 16 mm | 28 V | No Marking | 28 V | Button Rectangular | 50 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | Amber LED | DPDT | Illuminated Standard |

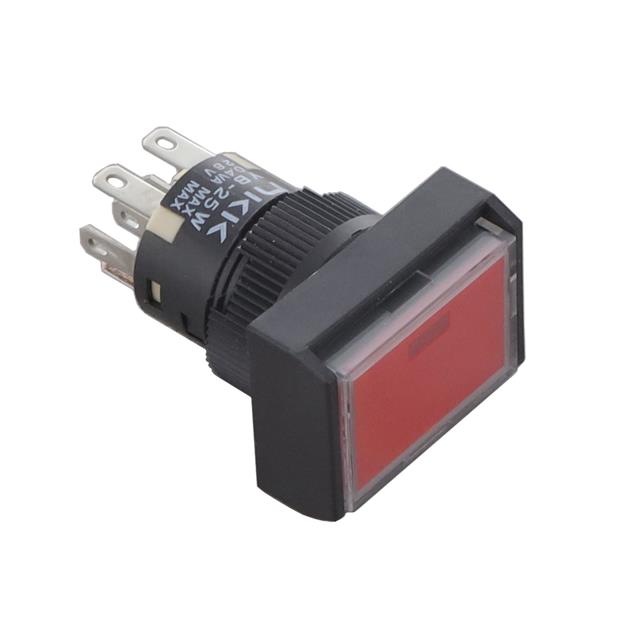

NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | 1.9 VDC | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 3 A | 16 mm | 125 V | No Marking | 30 V | Button Rectangular | 50 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | LED Red | DPDT | Illuminated Standard |

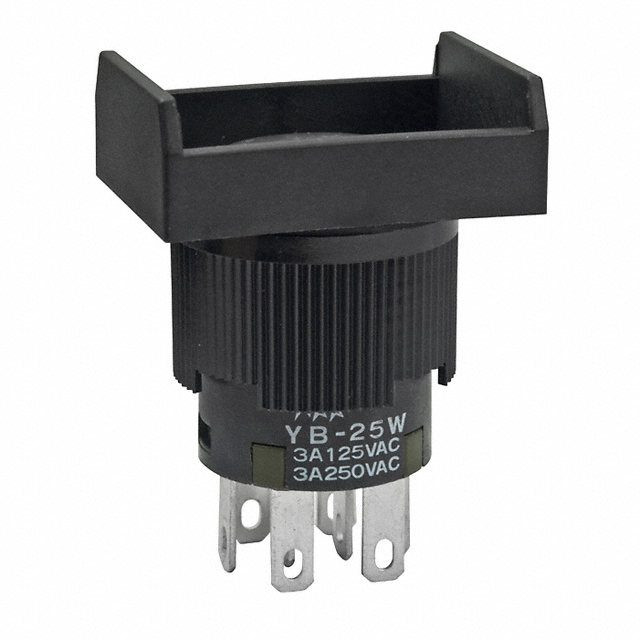

 NKK Switches | 100000 Cycles | 1000000 Cycles | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 3 A | 16 mm | 125 V | No Marking | 30 V | Plunger for Cap | 70 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | DPDT | Standard | |||

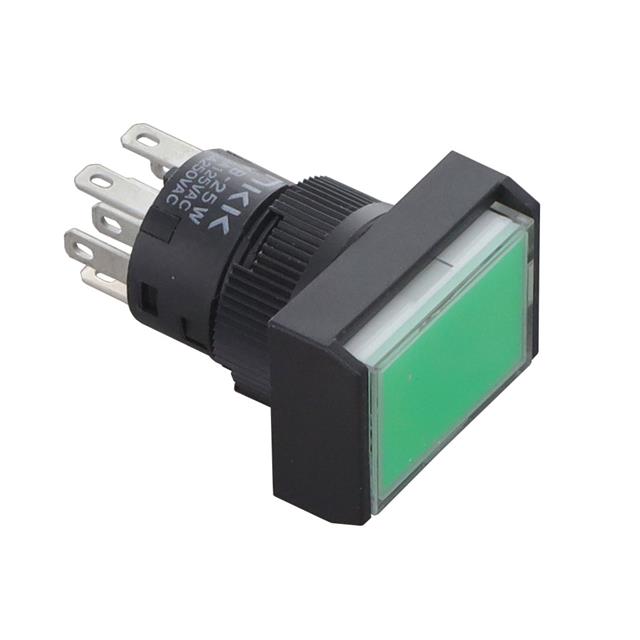

NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | 12 VDC | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 3 A | 16 mm | 125 V | No Marking | 30 V | Button Rectangular | 50 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | Green LED | DPDT | Illuminated Standard |
 NKK Switches | 100000 Cycles | 1000000 Cycles | Clear | 24 V | On-Mom | IP65 - Dust Tight Water Resistant | Voltage Reduction Lighting | 3 A | 16 mm | 125 V | No Marking | 30 V | Button Rectangular | 50 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | Green LED | DPDT | Illuminated Standard |
