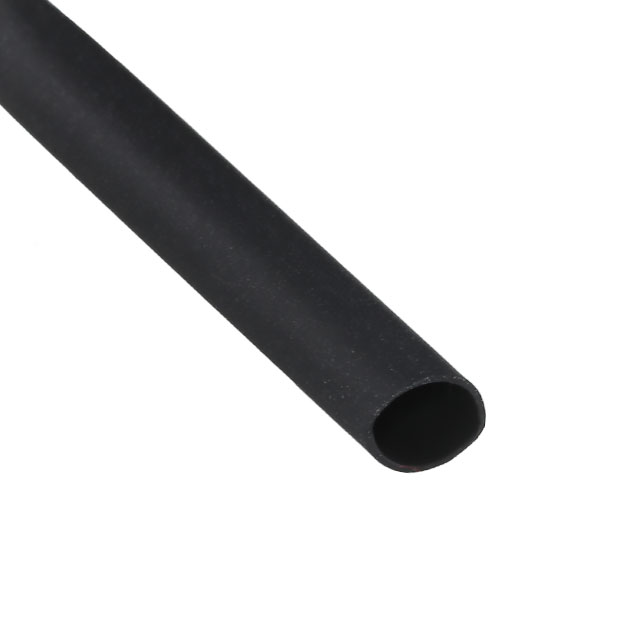

NTFR-3/8 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK TUBING 2" 01'

Part	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Length	Length	Color	Shrink Temperature	Features	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Spool Size	Spool Size	Length	Recovered Wall Thickness [custom]	Length [x]	Length [x]
TE Connectivity Aerospace, Defense and Marine NTFR-2-0-SP	2.79 mm	0.11 in	-70 °C	121 °C	50.8 mm	2 in	1.14 in	28.96 mm	Tubing Flexible	1.52 m 7.6 m	5 ' 25 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated
TE Connectivity Aerospace, Defense and Marine NTFR-1-1/2-0-SP	2.41 mm	0.095 in	-103 °F	121 °C	38.1 mm	1.5 in	0.857 in	21.77 mm	Tubing Flexible	15.2 m	50 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated
TE Connectivity Aerospace, Defense and Marine NTFR-1-1/4-0-SP	2.21 mm	0.087 in	-70 °C	121 °C	31.75 mm	1.25 in	0.714 "	18.13 mm	Tubing Flexible	1.52 m 7.6 m 15.2 m	5 ' 25 ft 50 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated
TE Connectivity Aerospace, Defense and Marine NTFR-7/8-0-SP	1.65 mm	0.065 in	-70 °C	121 °C	22.23 mm	0.875 in	0.5 in	12.7 mm	Tubing Flexible	1.52 m 7.6 m 15.2 m	5 ' 25 ft 50 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated
TE Connectivity Aerospace, Defense and Marine NTFR-1/8-0-SP	0.69 mm	0.027 "	-70 °C	121 °C	3.18 mm	0.125 "	0.061 in	1.55 mm	Tubing Flexible	7.6 m	25 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated
TE Connectivity Aerospace, Defense and Marine NTFR-3/8-0-SP	1.02 mm	0.04 in	-70 °C	121 °C	9.53 mm	0.375 in	0.214 in	5.44 mm	Tubing Flexible	1.52 m 7.6 m 15.2 m	5 ' 25 ft 50 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated	91.4 m	300 ft	Enter Number of Feet in Order Quantity
TE Connectivity Aerospace, Defense and Marine NTFR-3/16-0-SP	0.84 mm	0.033 in	-70 °C	121 °C	4.75 mm	0.187 in	0.1 in	2.54 mm	Tubing Flexible	1.52 m 7.6 m 15.2 m	5 ' 25 ft 50 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated
TE Connectivity Aerospace, Defense and Marine NTFR-3/4-0-SP	1.45 mm		-70 °C	121 °C			0.428 in	10.87 mm	Tubing Flexible	1.52 m 7.6 m 15.2 m	5 ' 25 ft 50 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated	61 m	200 '	Enter Number of Feet in Order Quantity	0.057 in
TE Connectivity Aerospace, Defense and Marine NTFR-1/4-0-SP	0.89 mm	0.035 in	-70 °C	121 °C	6.35 mm	0.25 in	0.143 in	3.63 mm	Tubing Flexible	1.52 m 7.6 m 15.2 m	5 ' 25 ft 50 ft	Black	135 C	Abrasion Resistant Flame Retardant Fluid Resistant	1	1.75	Neoprene Irradiated					30.5 m	100 ft
