046993 Series

Manufacturer: Molex

Catalog

CONN PLUG HSG 2POS

Part	Color	Number of Positions	Number of Rows	Note	Features	Fastening Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Insulation Material	Row Spacing	Row Spacing	Mounting Type	Pitch [x]	Pitch [x]

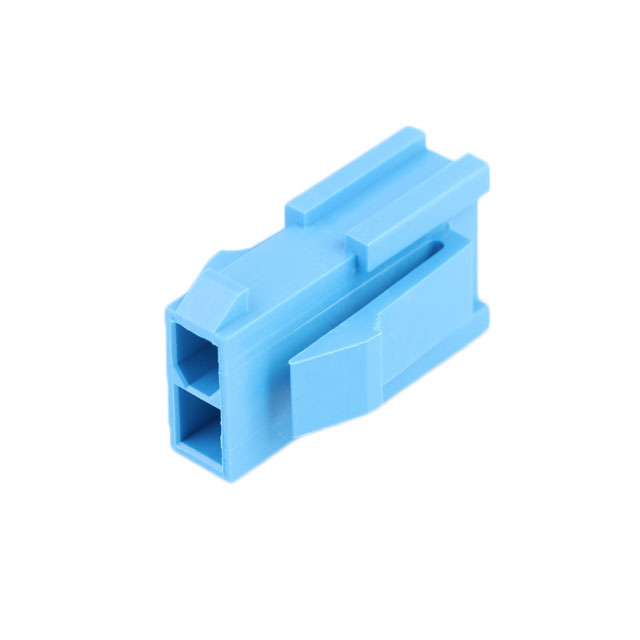

Molex 0469930240	Blue	2	2	Contacts Not Included	Glow Wire Compliant	Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Panel Mount Snap-In
Molex 0469931220	Red	12	2	Contacts Not Included	Glow Wire Compliant	Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Panel Mount Snap-In	4.2 mm	0.165 in
Molex 0469931240	Blue	12	2	Contacts Not Included	Glow Wire Compliant	Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Panel Mount Snap-In	4.2 mm	0.165 in
Molex 0469930830	Green	8	2	Contacts Not Included	Glow Wire Compliant	Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Panel Mount Snap-In	4.2 mm	0.165 in

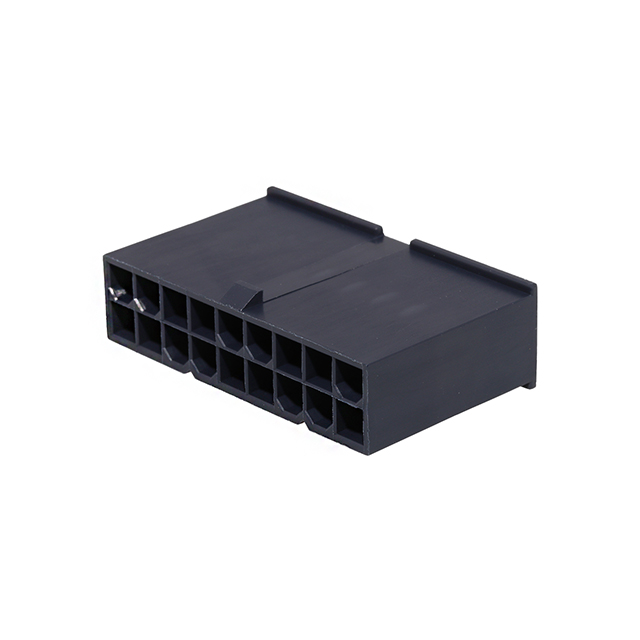

Molex 0469931811	Black	18	2	Contacts Not Included		Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA6) Nylon 6	4.2 mm	0.165 in		4.2 mm	0.165 in
Molex 0469931020	Red	10	2	Contacts Not Included	Glow Wire Compliant	Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Panel Mount Snap-In	4.2 mm	0.165 in
Molex 0469931030	Green	10	2	Contacts Not Included	Glow Wire Compliant	Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Panel Mount Snap-In	4.2 mm	0.165 in

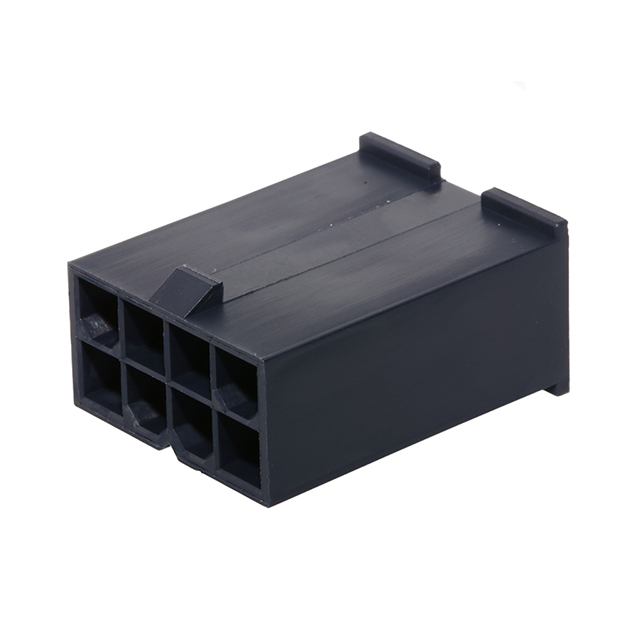

Molex 0469930811	Black	8	2	Contacts Not Included		Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA6) Nylon 6	4.2 mm	0.165 in		4.2 mm	0.165 in

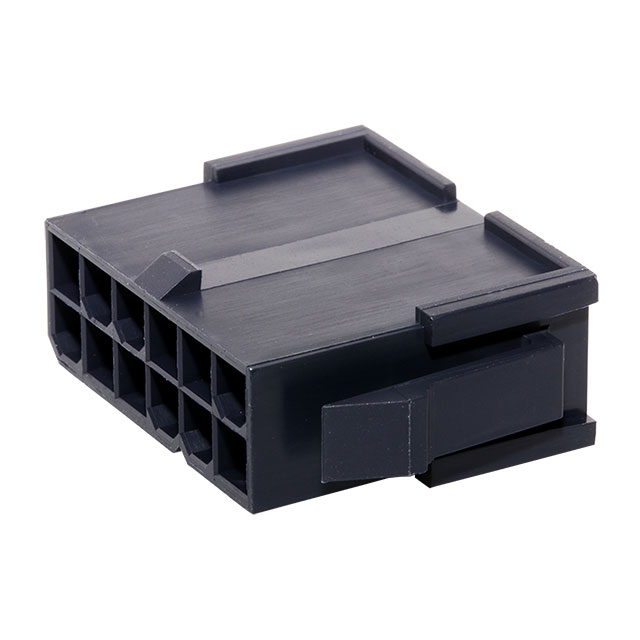

Molex 0469931210	Black	12	2	Contacts Not Included		Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Nylon Polyamide (PA)	4.2 mm	0.165 in	Panel Mount Snap-In	4.2 mm	0.165 in
Molex 0469931250	Natural	12	2	Contacts Not Included	Glow Wire Compliant	Locking Ramp	Crimp	-40 °C	105 ░C	Plug	Male Pin	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	Panel Mount Snap-In	4.2 mm	0.165 in
