R14341 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

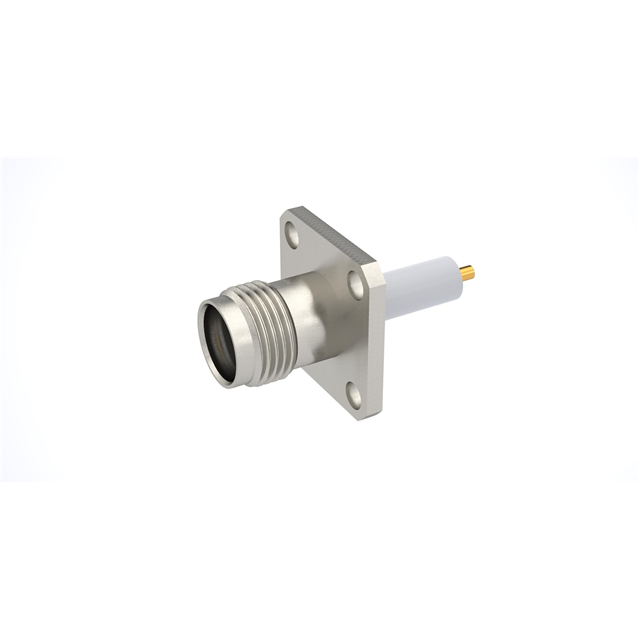

TNC 18 / SQUARE FLANGE JACK RECE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Voltage Rating | Insertion Loss | Mating Cycles | Center Contact Plating | Dielectric Material | Mounting Feature | Center Contact Material | Fastening Type | Features | Connector Type | Mounting Type | Shield Termination | Number of Ports | Housing Color | Impedance | Frequency - Max [Max] | Connector Style | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 105 ░C | -65 ░C | Stainless Steel | 500 V | 0.18 dB | 500 | Gold | Polytetrafluoroethylene (PTFE) | Flange | Beryllium Copper | Threaded | Extended Insulation | Female Socket Jack | Panel Mount Through Hole | Solder | 1 | Silver | 50 Ohms | 18 GHz | TNC | Solder |
