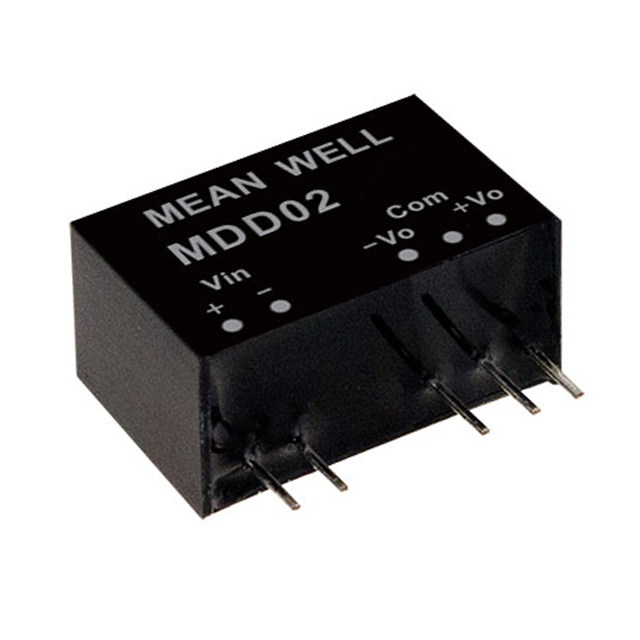

MDD02 Series

Catalog

DC DC CONVERTER +/-12V 2W

Part	Type	Voltage - Input (Max) [Max]	Power (Watts)	Supplier Device Package	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Output 2	Mounting Type	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Features	Package / Case	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency
MEAN WELL USA Inc. MDD02N-12	Isolated Module	26.4 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	12 V	-12 V	Through Hole	83 mA	83 mA	21.6 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm
MEAN WELL USA Inc. MDD02L-05	Isolated Module	5.5 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	5 V	-5 V	Through Hole			4.5 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	78 %
MEAN WELL USA Inc. MDD02N-05	Isolated Module	26.4 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	5 V	-5 V	Through Hole			21.6 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	77 %
MEAN WELL USA Inc. MDD02N-15	Isolated Module	26.4 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	15 V	-15 V	Through Hole	67 mA	67 mA	21.6 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm
MEAN WELL USA Inc. MDD02L-09	Isolated Module	5.5 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	9 V	-9 V	Through Hole	111 mA		4.5 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	81 %
MEAN WELL USA Inc. MDD02M-09	Isolated Module	13.2 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	9 V	-9 V	Through Hole	111 mA		10.8 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	83 %
MEAN WELL USA Inc. MDD02M-05	Isolated Module	13.2 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	5 V	-5 V	Through Hole			10.8 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	78 %
MEAN WELL USA Inc. MDD02M-12	Isolated Module	13.2 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	12 V	-12 V	Through Hole	83 mA	83 mA	10.8 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	83 %
MEAN WELL USA Inc. MDD02L-15	Isolated Module	5.5 V	2 W	7-SIP	6000 VDC	Medical	85 °C	-40 C	15 V	-15 V	Through Hole	67 mA	67 mA	4.5 V	SCP	7-SIP Module 5 Leads	2	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	79 %
