Kmt00 Series Series

Nano-Miniature SMT Top Actuated Tactile Switches Nano-Miniature SMT Top Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Nano-Miniature SMT Top Actuated Tactile Switches Nano-Miniature SMT Top Actuated

Part	Outline [y]	Outline [x]	Actuator Orientation	Termination Style	Mounting Type	Actuator Height off PCB, Vertical [z]	Mechanical Life	Ingress Protection	Actuator Type	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Switch Travel	Illumination	Contact Rating @ Voltage
Littelfuse/Commercial Vehicle Products KMT031OLLHS	2.6 mm	3 mm	Top Actuated	J Lead	Surface Mount	0.65 mm	300000 Cycles	IP68 - Dust Tight Waterproof	Standard	340 gf	85 °C	-40 °C	SPST-NO	Off-Mom	0.15 mm	Non-Illuminated	0.05 A

Catalog

Nano-Miniature SMT Top Actuated Tactile Switches Nano-Miniature SMT Top Actuated

Key Features

• Smallest thickness with integrated actuator

• Extended life cycles

• Smallest footprint

Description

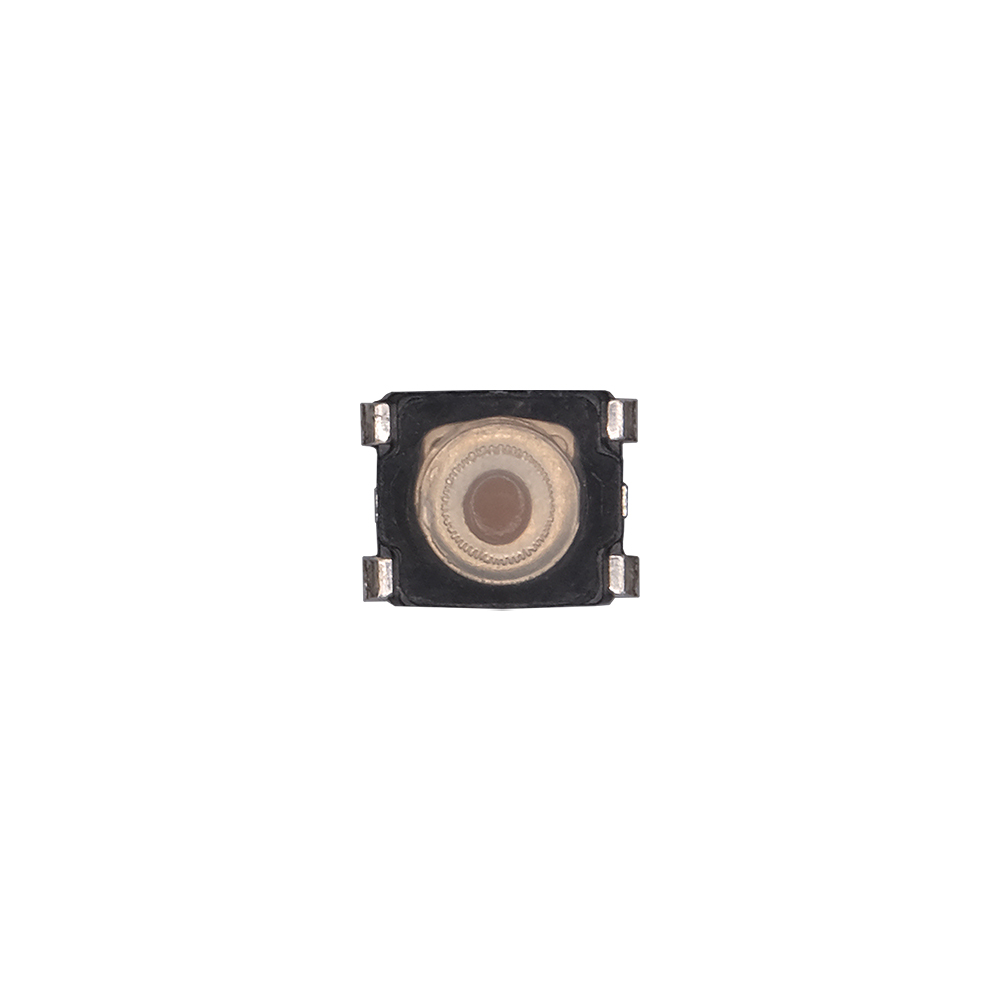

C&K’s KMT0 series nano-miniature SMT top actuated switch comes with the smallest footprint and thickness and an integrated actuator. Its extended life cycle makes it ideal for the smallest of applications that must last a long time while withstanding the harshest of environments, including Bluetooth headsets, MP3 accessories and hearing aids.
