TAS5342LA Series

100-W stereo, 200-W mono, 10.8-V to 13.2-V supply, PWM input open loop Class-D audio amp, low RDSon

Catalog

100-W stereo, 200-W mono, 10.8-V to 13.2-V supply, PWM input open loop Class-D audio amp, low RDSon

Part	Output Type	Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [custom]	Package / Case [custom]	Package / Case	Max Output Power x Channels @ Load	Board Type	Supplied Contents	Utilized IC / Part
Texas Instruments TAS5342DDVR	1-Channel (Mono) or 2-Channel (Stereo)	Digital PWM Inputs Short-Circuit and Thermal Protection Shutdown	44-HTSSOP	70 °C	0 °C	Surface Mount	Class D	13.2 V	10.8 VDC	44-PowerTSSOP	0.244 in	6.2 mm
Texas Instruments TAS5342ADDV	1-Channel (Mono) or 2-Channel (Stereo)	Digital PWM Inputs Short-Circuit and Thermal Protection Shutdown	44-HTSSOP	70 °C	0 °C	Surface Mount	Class D	13.2 V	10.8 VDC	44-PowerTSSOP	0.244 in	6.2 mm
Texas Instruments TAS5342LAADDV	1-Channel (Mono) or 2-Channel (Stereo)		44-HTSSOP	70 °C	0 °C	Surface Mount	Class AB	13.2 V	10.8 VDC	44-PowerTSSOP	0.244 in	6.2 mm	40 W 100 W 200 W
Texas Instruments TAS5342DDV6EVM	6-Channel												120 W 225 W	Fully Populated	Board(s) Cable(s) Power Supply	TAS5342 TAS5508B
Texas Instruments TAS5342LADDV	1-Channel (Mono) or 2-Channel (Stereo)	Digital PWM Inputs Short-Circuit and Thermal Protection Shutdown	44-HTSSOP	70 °C	0 °C	Surface Mount	Class D	13.2 V	10.8 VDC	44-PowerTSSOP	0.244 in	6.2 mm

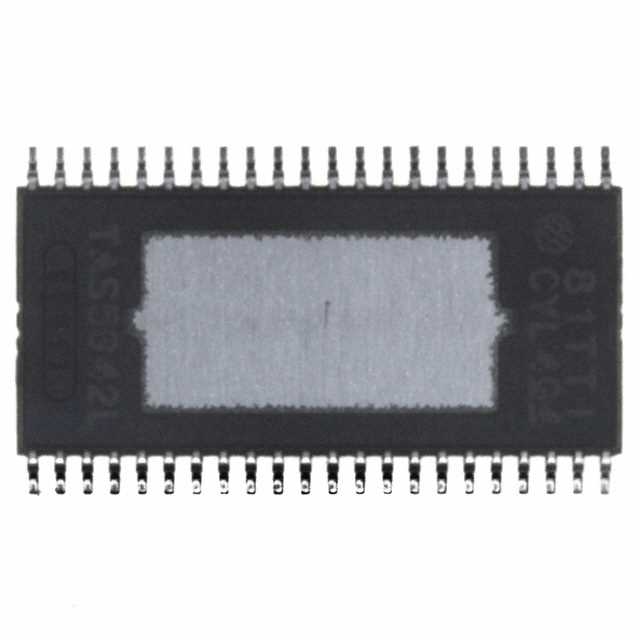

Texas Instruments TAS5342LDDVR	1-Channel (Mono) or 2-Channel (Stereo)	Digital PWM Inputs Short-Circuit and Thermal Protection Shutdown	44-HTSSOP	70 °C	0 °C	Surface Mount	Class D	13.2 V	10.8 VDC	44-PowerTSSOP	0.244 in	6.2 mm
Texas Instruments TAS5342DDVRG4	1-Channel (Mono) or 2-Channel (Stereo)	Digital PWM Inputs Short-Circuit and Thermal Protection Shutdown	44-HTSSOP	70 °C	0 °C	Surface Mount	Class D	13.2 V	10.8 VDC	44-PowerTSSOP	0.244 in	6.2 mm
Texas Instruments TAS5342LDDVG4	1-Channel (Mono) or 2-Channel (Stereo)	Digital PWM Inputs Short-Circuit and Thermal Protection Shutdown	44-HTSSOP	70 °C	0 °C	Surface Mount	Class D	13.2 V	10.8 VDC	44-PowerTSSOP	0.244 in	6.2 mm
Texas Instruments TAS5342DDV	1-Channel (Mono) or 2-Channel (Stereo)	Digital PWM Inputs Short-Circuit and Thermal Protection Shutdown	44-HTSSOP	70 °C	0 °C	Surface Mount	Class D	13.2 V	10.8 VDC	44-PowerTSSOP	0.244 in	6.2 mm

Catalog

100-W stereo, 200-W mono, 10.8-V to 13.2-V supply, PWM input open loop Class-D audio amp, low RDSon

Key Features

• Total Power Output (Bridge Tied Load)2 × 100 W at 10% THD+N Into 4Total Power Output (Single Ended)4 × 40 W at 10% THD+N Into 3Total Power Output (Parallel Mode)1 × 200 W at 10% THD+N Into 2>110 dB SNR (A-Weighted With TAS5518 Modulator)<0.1% THD+N (1 W, 1 kHz)Supports PWM Frame Rates of 192 kHz to 432 kHzResistor-Programmable Current LimitIntegrated Self-Protection Circuitry, Including:Under Voltage ProtectionOvertemperature Warning and ErrorOverload ProtectionShort-Circuit ProtectionPWM Activity DetectorStandalone Protection RecoveryPower-On Reset (POR) to Eliminate System Power-Supply SequencingHigh-Efficiency Power Stage (>90%) With 110-mOutput MOSFETsThermally Enhanced Package 44-Pin HTSSOP (DDV)Error Reporting, 3.3-V and 5.0-V CompliantEMI Compliant When Used With Recommended System DesignAPPLICATIONSMini/Micro Audio SystemDVD ReceiverHome TheaterPurePath Digital, PowerPad are trademarks of Texas Instruments.All other trademarks are the property of their respective owners.Total Power Output (Bridge Tied Load)2 × 100 W at 10% THD+N Into 4Total Power Output (Single Ended)4 × 40 W at 10% THD+N Into 3Total Power Output (Parallel Mode)1 × 200 W at 10% THD+N Into 2>110 dB SNR (A-Weighted With TAS5518 Modulator)<0.1% THD+N (1 W, 1 kHz)Supports PWM Frame Rates of 192 kHz to 432 kHzResistor-Programmable Current LimitIntegrated Self-Protection Circuitry, Including:Under Voltage ProtectionOvertemperature Warning and ErrorOverload ProtectionShort-Circuit ProtectionPWM Activity DetectorStandalone Protection RecoveryPower-On Reset (POR) to Eliminate System Power-Supply SequencingHigh-Efficiency Power Stage (>90%) With 110-mOutput MOSFETsThermally Enhanced Package 44-Pin HTSSOP (DDV)Error Reporting, 3.3-V and 5.0-V CompliantEMI Compliant When Used With Recommended System DesignAPPLICATIONSMini/Micro Audio SystemDVD ReceiverHome TheaterPurePath Digital, PowerPad are trademarks of Texas Instruments.All other trademarks are the property of their respective owners.

Description

The TAS5342LA is a high-performance, integrated stereo digital amplifier power stage designed to drive a 4-Ω bridge-tied load (BTL) at up to 100 W per channel with low-harmonic distortion, low-integrated noise, and low-idle current. The TAS5342LA has a complete protection system integrated on-chip, safeguarding the device against a wide range of fault conditions that could damage the system. These protection features are short-circuit protection, over-current protection, under voltage protection, over temperature protection, and a loss of PWM signal (PWM activity detector). A power-on-reset (POR) circuit is used to eliminate power-supply sequencing that is required for most power-stage designs. The TAS5342LA is a high-performance, integrated stereo digital amplifier power stage designed to drive a 4-Ω bridge-tied load (BTL) at up to 100 W per channel with low-harmonic distortion, low-integrated noise, and low-idle current. The TAS5342LA has a complete protection system integrated on-chip, safeguarding the device against a wide range of fault conditions that could damage the system. These protection features are short-circuit protection, over-current protection, under voltage protection, over temperature protection, and a loss of PWM signal (PWM activity detector). A power-on-reset (POR) circuit is used to eliminate power-supply sequencing that is required for most power-stage designs.
