0257-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

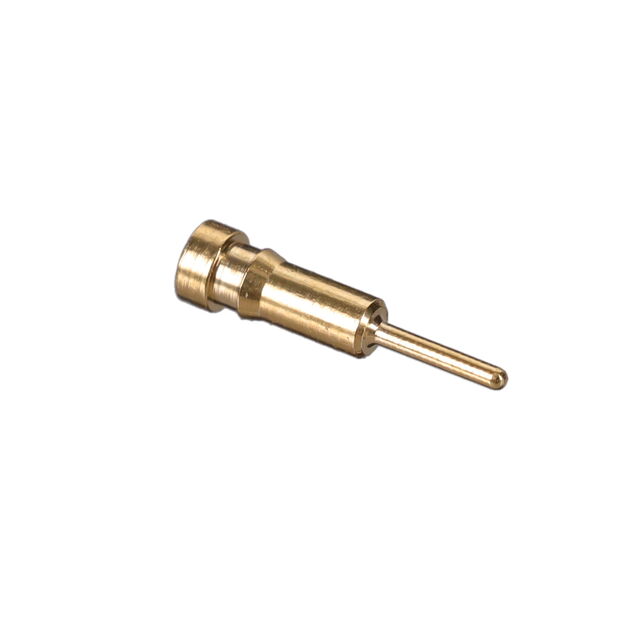

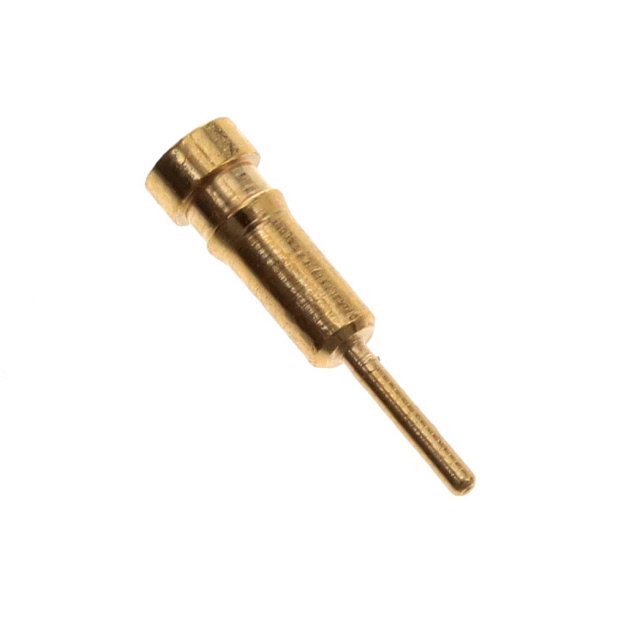

CONN PC PIN CIRC 0.020DIA GOLD
| Part | Length - Above Flange [x] | Length - Above Flange | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Length - Overall | Length - Overall | Mounting Hole Diameter | Mounting Hole Diameter | Contact Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.266 in | 6.76 mm | Non-Insulated | 0.072 " | 1.83 mm | Through Hole | PC Pin | 0.25 Ám | 10 Áin | Brass Alloy | 0.02 in | 0.51 mm | Single End | 7.54 mm | 0.297 " | 0.059 in | 1.5 mm | Gold | Press-Fit |
 Mill-Max Manufacturing Corp. | 0.266 in | 6.76 mm | Non-Insulated | 0.072 " | 1.83 mm | Through Hole | PC Pin | 5.08 Ám | 200 Áin | Brass Alloy | 0.02 in | 0.51 mm | Single End | 7.54 mm | 0.297 " | 0.059 in | 1.5 mm | Tin-Lead | Press-Fit |
 Mill-Max Manufacturing Corp. | 0.266 in | 6.76 mm | Non-Insulated | 0.072 " | 1.83 mm | Through Hole | PC Pin | 5.08 Ám | 200 Áin | Brass Alloy | 0.02 in | 0.51 mm | Single End | 7.54 mm | 0.297 " | 0.059 in | 1.5 mm | Tin | Press-Fit |
 Mill-Max Manufacturing Corp. | 0.266 in | 6.76 mm | Non-Insulated | 0.072 " | 1.83 mm | Through Hole | PC Pin | 1.27 µm | 50 µin | Brass Alloy | 0.02 in | 0.51 mm | Single End | 7.54 mm | 0.297 " | 0.059 in | 1.5 mm | Gold | Press-Fit |
 Mill-Max Manufacturing Corp. | 0.266 in | 6.76 mm | Non-Insulated | 0.072 " | 1.83 mm | Through Hole | PC Pin | 0.51 µm | 20 µin | Brass Alloy | 0.02 in | 0.51 mm | Single End | 7.54 mm | 0.297 " | 0.059 in | 1.5 mm | Gold | Press-Fit |
