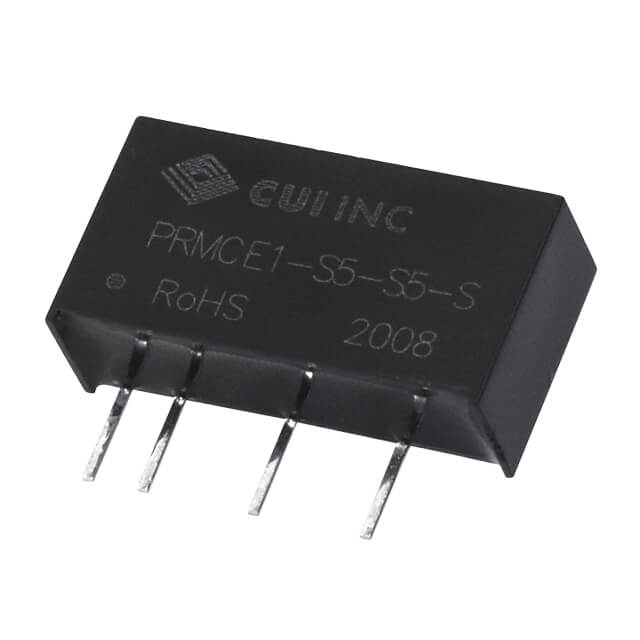

PRMCE1 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 24V 984MW

Part	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1	Type	Applications	Power (Watts)	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Voltage - Isolation
CUI Inc. PRMCE1-S5-S24-S	73 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	EN	5.25 V	Through Hole	41 mA	24 V	Isolated Module	ITE (Commercial)	984 mW	55024 55032	-40 °C	85 °C	1	7-SIP Module 4 Leads	4.75 V	3000 V
CUI Inc. PRMCE1-S5-S9-S	71 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	CB Scheme EN IEC UL	5.25 V	Through Hole	110 mA	9 V	Isolated Module	ITE (Commercial)	0.99 W	55024 55032 Class A 62368-1	-40 °C	85 °C	1	7-SIP Module 4 Leads	4.75 V	3000 V
CUI Inc. PRMCE1-S5-S5-S	70 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	CB Scheme EN IEC UL	5.25 V	Through Hole	200 mA	5 V	Isolated Module	ITE (Commercial)		55024 55032 Class A 62368-1	-40 °C	85 °C	1	7-SIP Module 4 Leads	4.75 V	3000 V
CUI Inc. PRMCE1-S5-S15-S	73 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	CB Scheme EN IEC UL	5.25 V	Through Hole	67 mA	15 V	Isolated Module	ITE (Commercial)		55024 55032 Class A 62368-1	-40 °C	85 °C	1	7-SIP Module 4 Leads	4.75 V	3000 V
CUI Inc. PRMCE1-S5-S3-S	67 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	EN	5.25 V	Through Hole	250 mA	3.3 V	Isolated Module	ITE (Commercial)	825 mW	55024 55032	-40 °C	85 °C	1	7-SIP Module 4 Leads	4.75 V	3000 V
CUI Inc. PRMCE1-S5-S12-S	72 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	CB Scheme EN IEC UL	5.25 V	Through Hole	84 mA	12 V	Isolated Module	ITE (Commercial)		55024 55032 Class A 62368-1	-40 °C	85 °C	1	7-SIP Module 4 Leads	4.75 V	3000 V
