BD80C0 Series

35V Voltage Resistance 1A, High-Accuracy LDO Regulator for Automotive

Catalog

35V Voltage Resistance 1A, High-Accuracy LDO Regulator for Automotive

Part	Number of Regulators	Voltage - Input (Max) [Max]	Current - Output	Qualification	Voltage Dropout (Max)	PSRR	Supplier Device Package	Grade	Current - Quiescent (Iq)	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Package / Case	Mounting Type	Control Features
Rohm Semiconductor BD80C0AFPS-CE2	1	26.5 V	1 A	AEC-Q100	0.5 V	50 dB	TO-52S-3	Automotive	2.5 mA	Over Current Over Temperature Reverse Polarity Short Circuit	125 °C	-40 °C	Positive	8 V	2.5 mA	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount
Rohm Semiconductor BD80C0AWHFP-CTR	1	26.5 V	1 A	AEC-Q100	0.5 V	50 dB	HRP-5	Automotive	2.5 mA	Over Current Over Temperature	125 °C	-40 °C	Positive	8 V	2.5 mA	D2PAK TO-263-6 TO-263BA	Surface Mount	Enable
Rohm Semiconductor BD80C0AFPS-E2	1	26.5 V	1 A		0.5 V	50 dB	TO-52S-3		1 mA	Over Current Over Temperature	105 °C	-40 °C	Positive	8 V	1 mA	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount
Rohm Semiconductor BD80C0AFP2-CE2	1	26.5 V	1 A	AEC-Q100	0.5 V	50 dB	TO-263-3F	Automotive	2.5 mA	Over Current Over Temperature	125 °C	-40 °C	Positive	8 V	2.5 mA	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	Surface Mount
Rohm Semiconductor BD80C0AFPS-LBE2	1	26.5 V	1 A		0.5 V	50 dB	TO-52S-3		1 mA	Over Current Over Temperature Short Circuit	105 °C	-40 °C	Positive	8 V	1 mA	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount

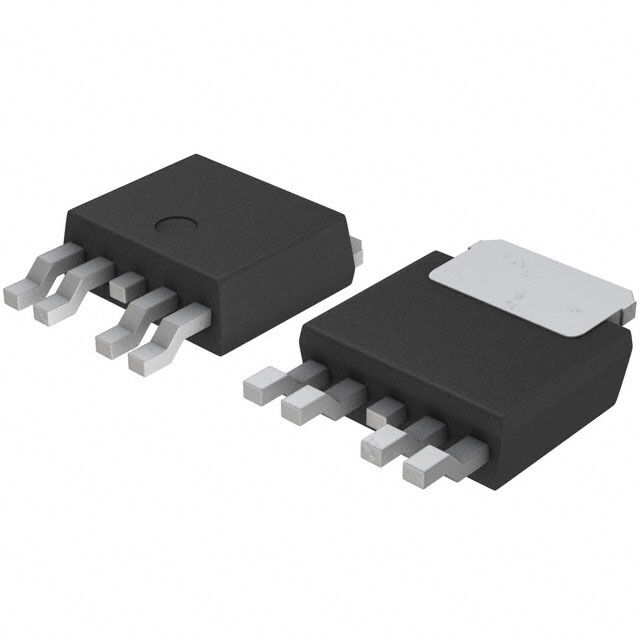

Rohm Semiconductor BD80C0AWFP-CE2	1	26.5 V	1 A	AEC-Q100	0.5 V	50 dB	TO-252-5	Automotive	2.5 mA	Over Current Over Temperature	125 °C	-40 °C	Positive	8 V	2.5 mA	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	Surface Mount	Enable
Rohm Semiconductor BD80C0AFP-CE2	1	26.5 V	1 A	AEC-Q100	0.5 V	50 dB	TO-252	Automotive	2.5 mA	Over Current Over Temperature	125 °C	-40 °C	Positive	8 V	2.5 mA	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount
Rohm Semiconductor BD80C0AHFP-CTR	1	26.5 V	1 A	AEC-Q100	0.5 V	50 dB	HRP-5	Automotive	2.5 mA	Over Current Over Temperature	125 °C	-40 °C	Positive	8 V	2.5 mA	D2PAK TO-263-6 TO-263BA	Surface Mount	Enable

Catalog

35V Voltage Resistance 1A, High-Accuracy LDO Regulator for Automotive

Description

The BD80C0AWHFP-C is low-saturation regulator. This regulator has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits and a thermal Shutdown circuit that protects the IC from thermal damage due to overloading.
