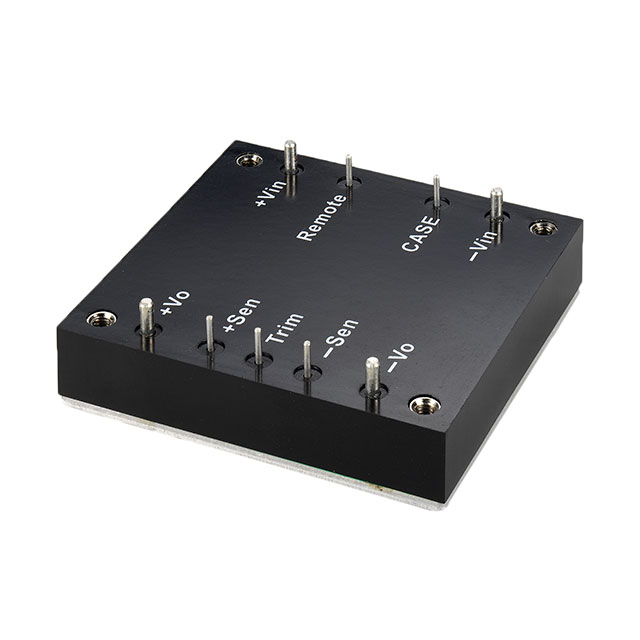

CHB350 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, HALF BRICK, 350 WATT, 2:1 INPUT RANGE, SINGLE OUTPUT, 18-36VDC INPUT, 3.3VDC OUTPUT, 2.28X2.40X0.52"

Part	Voltage - Output 1	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Standard Number	Package / Case	Control Features	Features	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Type	Voltage - Isolation	Mounting Type	Voltage - Input (Min) [Min]	Efficiency	Voltage - Input (Max) [Max]	Supplier Device Package	Applications
Cincon Electronics Co. LTD CHB350-24S3V3	3.3 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	70 A	231 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	18 V	88 %	36 V	Half Brick	ITE (Commercial)
Cincon Electronics Co. LTD CHB350-48S3V3N	3.3 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	70 A	231 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	36 V	89 %	75 V	Half Brick	ITE (Commercial)

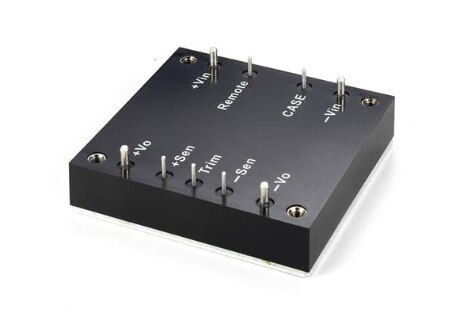

Cincon Electronics Co. LTD CHB350-24S28N	28 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	12.5 A	350 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	18 V	90.5 %	36 V	Half Brick	ITE (Commercial)
Cincon Electronics Co. LTD CHB350-24S12	12 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	29.2 A	350 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	18 V	90.5 %	36 V	Half Brick	ITE (Commercial)
Cincon Electronics Co. LTD CHB350-24S48	48 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	7.3 A	350 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	18 V	90 %	36 V	Half Brick	ITE (Commercial)
Cincon Electronics Co. LTD CHB350-48S05	5 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	70 A	350 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	36 V	91 %	75 V	Half Brick	ITE (Commercial)
Cincon Electronics Co. LTD CHB350-48S48	48 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	7.3 A	350 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	36 V	92 %	75 V	Half Brick	ITE (Commercial)
Cincon Electronics Co. LTD CHB350-24S3V3N	3.3 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	70 A	231 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	18 V	88 %	36 V	Half Brick	ITE (Commercial)
Cincon Electronics Co. LTD CHB350-24S24N	24 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	14.6 A	350 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	18 V	89 %	36 V	Half Brick	ITE (Commercial)
Cincon Electronics Co. LTD CHB350-48S28	28 V	CE cURus	-40 °C	100 °C	1	60950-1	Half Brick	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	12.5 A	350 W	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	Isolated Module	1.5 kV	Through Hole	36 V	92 %	75 V	Half Brick	ITE (Commercial)
