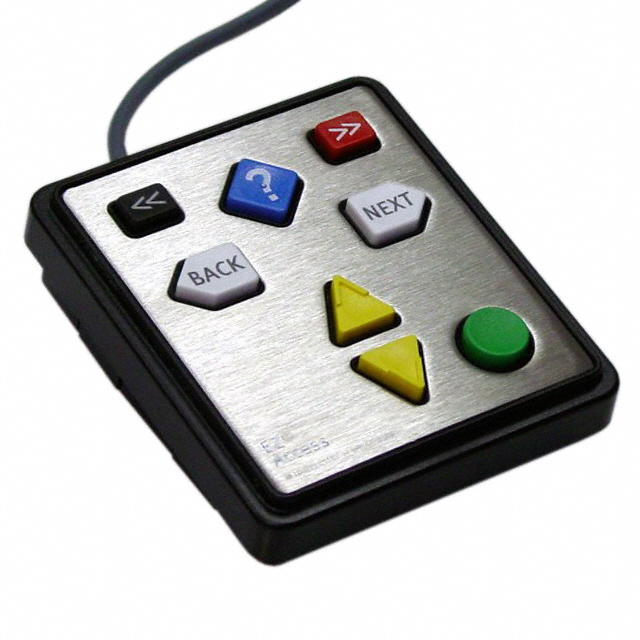

EZ08 Series

Catalog

KEYPAD, NAV-PAD SERIES, USB, 5 V

Part	Approval Agency	Color	Legend Color	Legend	Switch Type	Illumination	Output Type	Mounting Type	Panel Cutout Shape	Panel Cutout Length	Panel Cutout Width	Key Type	Ingress Protection IP Rating	Ingress Protection Description	Legend Type	Features	Termination Style	Number of Keys	Operating Temperature (Max)	Operating Temperature (Min)	Operational Life

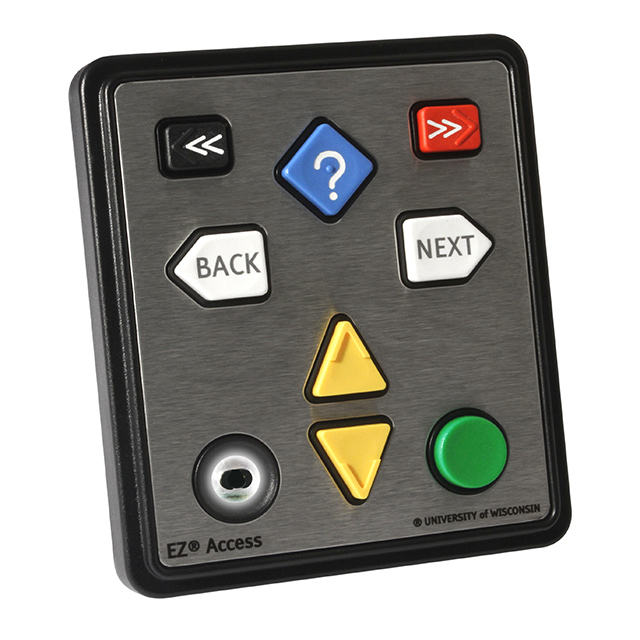

STORM INTERFACE EZ08-23001	CE FCC UL	Multiple	Black White	Arrows Help Button	Conductive Rubber	Non-Illuminated	USB	Front or Rear Panel Mount	Rectangular	109.5 mm	95.5 mm	Polymer	IP65	Dust Tight Water Resistant	Fixed	Audio Enabled	USB Socket	8	60 °C	-20 °C
STORM INTERFACE EZ08-21001-3	CE cURus	Multiple	Black White	Arrows Help Button	Conductive Rubber	Non-Illuminated	Matrix	Front or Rear Panel Mount	Rectangular	109.5 mm	95.5 mm	Polymer	IP65	Dust Tight Water Resistant	Fixed	Anti-Vandal	Pin Header	8	60 °C	-20 °C	4000000 Cycles
STORM INTERFACE EZ08-222013	CE cURus	Multiple	Black White	Arrows Help Button	Conductive Rubber	Non-Illuminated	USB	Front or Rear Panel Mount	Rectangular	109.5 mm	95.5 mm	Polymer	IP65	Dust Tight Water Resistant	Fixed	Anti-Vandal	Pin Header	8	60 °C	-20 °C	4000000 Cycles
