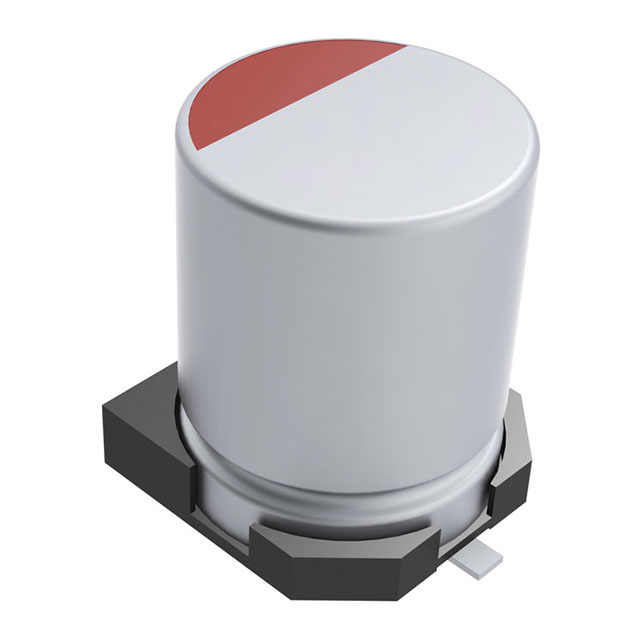

A768MS Series

Manufacturer: KEMET

Catalog

CAP ALUM POLY 330UF 20% 35V SMD

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Type	ESR (Equivalent Series Resistance)	Ratings	Mounting Type	Ripple Current @ High Frequency	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Applications	Lifetime @ Temp.	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]

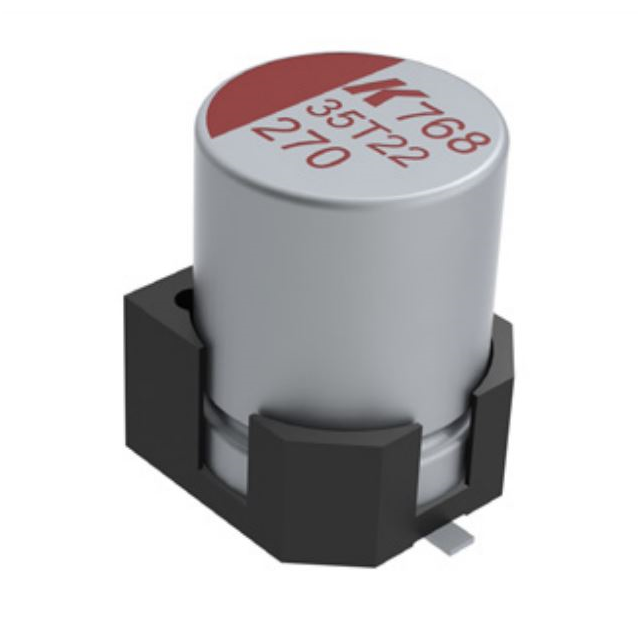

KEMET A768MS337M1VLAV022	0.394 in	10 mm	110 mA	-55 C	125 °C	35 V	10.8 mm	0.406 in	10.3 mm	0.425 in	Polymer	22 mOhms	AEC-Q200	Surface Mount	2.2 A	20 %	Radial Can - SMD	13.2 mm	0.52 in	330 µF	Automotive	2000 Hrs	Anti-Vibration
KEMET A768MS567M1ELAE017	0.394 in	10 mm	125 mA	-55 C	125 °C	25 VDC		10.3 mm		10.3 mm	Polymer	17 mOhm		Surface Mount	2.5 A	20 %	Radial Can - SMD			560 µF	General Purpose	2000 Hrs		0.5 in	12.7 mm	0.406 "	0.406 in
KEMET A768MS687M1DLAS015	0.394 in	10 mm	130 mA	-55 C	125 °C	20 V		10.3 mm		10.3 mm	Polymer	15 mOhm	AEC-Q200	Surface Mount	2.6 A	20 %	Radial Can - SMD			680 µF	Automotive	2000 Hrs		0.5 in	12.7 mm	0.406 "	0.406 in
KEMET A768MS277M1GLAV022	0.394 in	10 mm	110 mA	-55 C	125 °C	40 V	10.8 mm	0.406 in	10.3 mm	0.425 in	Polymer	22 mOhms	AEC-Q200	Surface Mount	2.2 A	20 %	Radial Can - SMD	13.2 mm	0.52 in	270 µF	Automotive	2000 Hrs	Anti-Vibration
KEMET A768MS687M1DLAE015	0.394 in	10 mm	130 mA	-55 C	125 °C	20 V		10.3 mm		10.3 mm	Polymer	15 mOhm		Surface Mount	2.6 A	20 %	Radial Can - SMD			680 µF	General Purpose	2000 Hrs		0.5 in	12.7 mm	0.406 "	0.406 in
KEMET A768MS227M1GLAS022	0.394 in	10 mm	110 mA	-55 C	125 °C	40 V		10.3 mm		10.3 mm	Polymer	22 mOhms	AEC-Q200	Surface Mount	2.2 A	20 %	Radial Can - SMD			220 µF	Automotive	2000 Hrs		0.5 in	12.7 mm	0.406 "	0.406 in
KEMET A768MS108M1CLAE015	0.394 in	10 mm	135 mA	-55 C	125 °C	16 V		10.3 mm		10.3 mm	Polymer	15 mOhm		Surface Mount	2.7 A	20 %	Radial Can - SMD			1000 µF	General Purpose	2000 Hrs		0.5 in	12.7 mm	0.406 "	0.406 in
KEMET A768MS227M1GLAV022	0.394 in	10 mm	110 mA	-55 C	125 °C	40 V	10.8 mm	0.406 in	10.3 mm	0.425 in	Polymer	22 mOhms	AEC-Q200	Surface Mount	2.2 A	20 %	Radial Can - SMD	13.2 mm	0.52 in	220 µF	Automotive	2000 Hrs	Anti-Vibration
KEMET A768MS566M1KLAE034	0.394 in	10 mm	90 mA	-55 C	125 °C	80 V		10.3 mm		10.3 mm	Polymer	34 mOhm		Surface Mount	1.8 A	20 %	Radial Can - SMD			56 µF	General Purpose	2000 Hrs		0.5 in	12.7 mm	0.406 "	0.406 in
KEMET A768MS107M1JLAV027	0.394 in	10 mm	100 mA	-55 C	125 °C	63 V	10.8 mm	0.406 in	10.3 mm	0.425 in	Polymer	27 mOhms	AEC-Q200	Surface Mount	2 A	20 %	Radial Can - SMD	13.2 mm	0.52 in	100 µF	Automotive	2000 Hrs	Anti-Vibration
